▼Thermocouple K type OMEGA™ (Atmospheric side is connected to OMEGA's small connector)
Atmospheric side connected with OMEGA™ small connector
K type for temperature measurement (Chromel®Almel®)
▼The following types are standardized (List)
Pairs: 1, 2, 3, 4, 5
Flange: NW/KF, ICF, JIS-VF, JIS-VG
Wide lineup of thermocouples with OMEGA™ connectors
C type/E Type/J Type/N Type/R/S Type
We also offer vacuum/atmosphere side connection parts and assembly services
※This product comes with a bolt and nut for connecting the thermocouple wire to the electrode on the vacuum side.
▼ Custom-made products are also available.
We can also provide multiple terminal combinations, flange size changes, and mounting on special flanges.
Please contact us by clicking the "Inquiry" button on the right side of the page.
For precision cleaning requests, please click here.
| Basic Information | |
|---|---|
| type | OMEGA ™ thermocouple type K |
| Total current/1 terminal | Milli |
| Withstand voltage: DC | Milli |
| Connection type | OMEGA™ |
| electrode | Chromel ® / alumel ® |
| Flange material | SUS 304 |
| sleeve | SUS 304 |
| Insulator | Alumina ceramic |
| Maximum temperature | 450℃ |
| The lowest temperature | -100℃ |
| Leak rate | <1.3x10-10Pa・㎥/sec |
※ Please click on the product code or model for more information.
front.product.product_code Model |

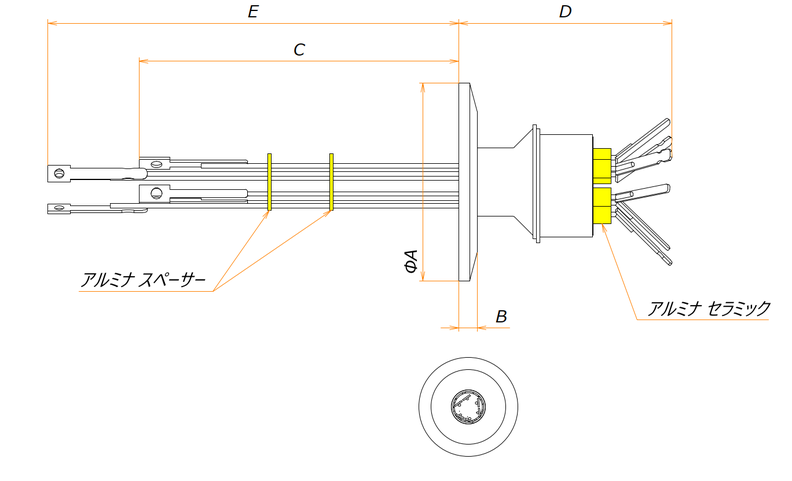

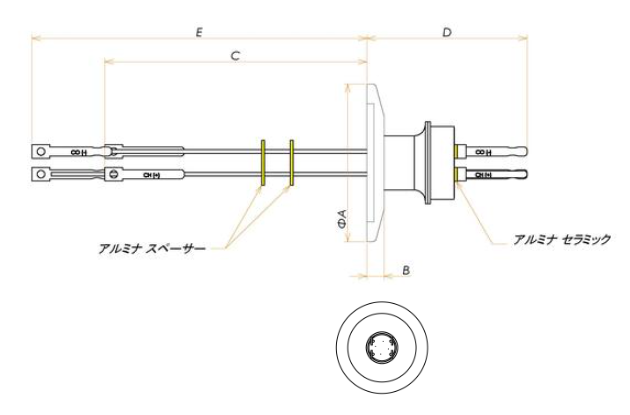

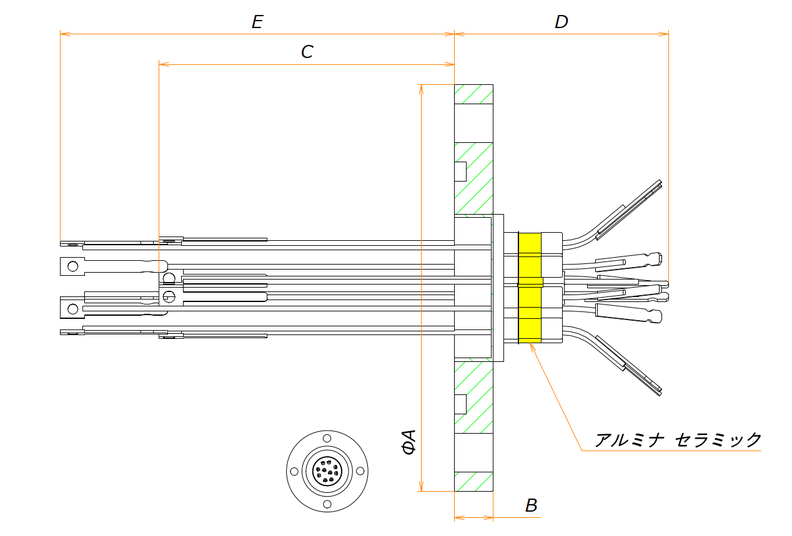

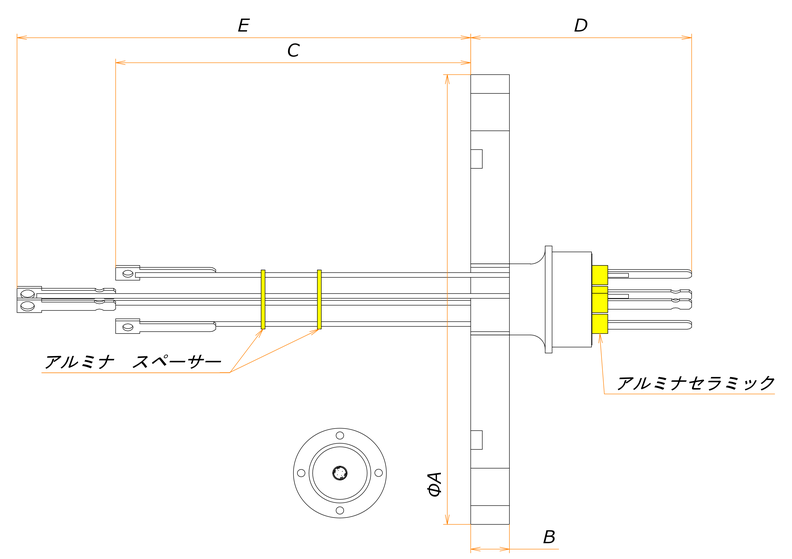

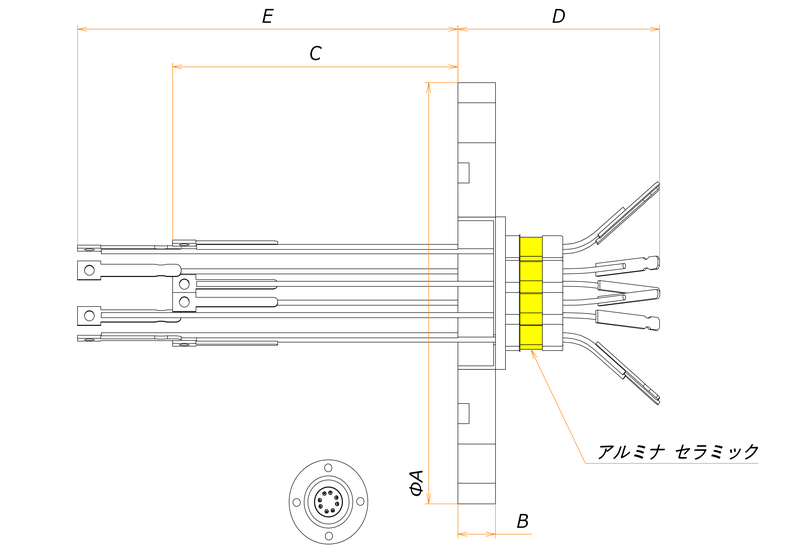

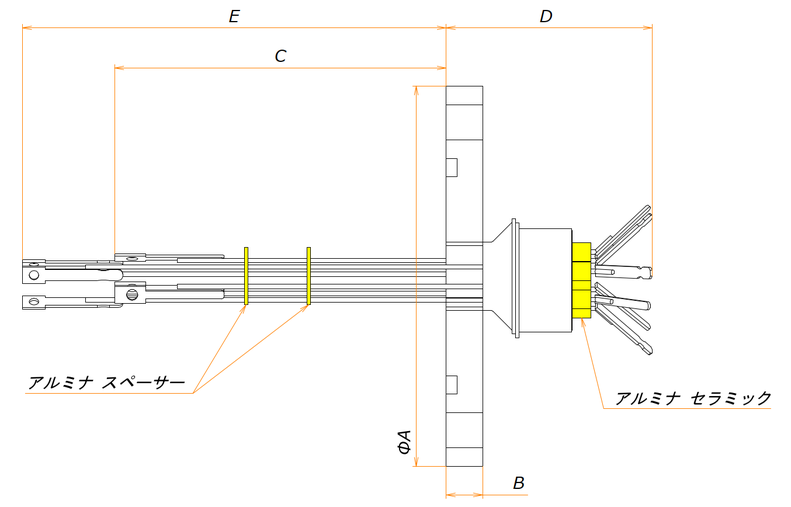

NW/KF | ICF | VF | VG | A | B | C | D | E | Pairs of Thermocouple | Stock & Delivery |
front.product.price front.product.tax_included2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 | - | - | - | 30 | 6 | 76 | 45 | 101 | 1 |
stock
2
1-2 Business Days
waiting for completion
5
Arrival on Mar 25,2027
When out of stock
Answered later
|
52,000JPY
(with tax 57,200JPY)
|
|
| 25 | - | - | - | 40 | 5.1 | 83 | 38 | 108 | 1 |
stock
18
1-2 Business Days
When out of stock
15 Business Days
|
52,200JPY
(with tax 57,420JPY)
|
|
| 40 | - | - | - | 55 | 5.1 | 83 | 38 | 108 | 1 |
stock
4
1-2 Business Days
When out of stock
15 Business Days
|
52,500JPY
(with tax 57,750JPY)
|
|
| 50 | - | - | - | 75 | 5.1 | 83 | 38 | 108 | 1 |
When out of stock
15 Business Days
|
53,000JPY
(with tax 58,300JPY)
|
|
| - | 34 | - | - | 34 | 7.5 | 72 | 48 | 98 | 1 |
stock
8
1-2 Business Days
waiting for completion
6
Arrival on Apr 26,2027
When out of stock
Answered later
|
53,000JPY
(with tax 58,300JPY)
|
|
| - | 70 | - | - | 70 | 12.7 | 86 | 35 | 111 | 1 |
stock
7
1-2 Business Days
When out of stock
Answered later
|
54,200JPY
(with tax 59,620JPY)
|
|
| - | - | 20 | - | 80 | 8 | 86 | 35 | 111 | 1 |
When out of stock
15 Business Days
|
54,000JPY
(with tax 59,400JPY)
|
|
| - | - | 25 | - | 90 | 8 | 86 | 35 | 111 | 1 |
When out of stock
15 Business Days
|
54,800JPY
(with tax 60,280JPY)
|
|
| - | - | 40 | - | 105 | 10 | 86 | 35 | 111 | 1 |
stock
3
1-2 Business Days
When out of stock
15 Business Days
|
55,800JPY
(with tax 61,380JPY)
|
|
| - | - | 50 | - | 120 | 10 | 86 | 35 | 111 | 1 |
When out of stock
15 Business Days
|
57,000JPY
(with tax 62,700JPY)
|
|
| - | - | - | 20 | 80 | 8 | 86 | 35 | 111 | 1 |
When out of stock
15 Business Days
|
54,000JPY
(with tax 59,400JPY)
|
|
| - | - | - | 25 | 90 | 8 | 86 | 35 | 111 | 1 |
When out of stock
15 Business Days
|
54,800JPY
(with tax 60,280JPY)
|
|
| - | - | - | 40 | 105 | 10 | 86 | 35 | 111 | 1 |
When out of stock
15 Business Days
|
55,800JPY
(with tax 61,380JPY)
|
|
| - | - | - | 50 | 120 | 10 | 86 | 35 | 111 | 1 |
When out of stock
15 Business Days
|
57,000JPY
(with tax 62,700JPY)
|
|
| 16 | - | - | - | 30 | 5 | 89 | 60 | 115 | 2 |
waiting for completion
2
Arrival on Mar 25,2027
When out of stock
Answered later
|
78,700JPY
(with tax 86,570JPY)
|
|
| 25 | - | - | - | 40 | 6 | 89 | 60 | 115 | 2 |
stock
6
1-2 Business Days
When out of stock
15 Business Days
|
78,900JPY
(with tax 86,790JPY)
|
|
| 40 | - | - | - | 55 | 6 | 89 | 60 | 115 | 2 |
stock
9
1-2 Business Days
When out of stock
15 Business Days
|
79,200JPY
(with tax 87,120JPY)
|
|
| 50 | - | - | - | 75 | 6 | 89 | 60 | 115 | 2 |
When out of stock
15 Business Days
|
79,700JPY
(with tax 87,670JPY)
|
|
| - | 34 | - | - | 34 | 7.6 | 90 | 58 | 116 | 2 |
stock
1
1-2 Business Days
waiting for completion
2
Arrival on Mar 25,2027
When out of stock
Answered later
|
79,700JPY
(with tax 87,670JPY)
|
|
| - | 70 | - | - | 70 | 12.7 | 90 | 58 | 116 | 2 |
stock
3
1-2 Business Days
When out of stock
15 Business Days
|
80,900JPY
(with tax 88,990JPY)
|
|
| - | - | 20 | - | 80 | 8 | 92 | 57 | 117 | 2 |
When out of stock
15 Business Days
|
80,700JPY
(with tax 88,770JPY)
|
|
| - | - | 25 | - | 90 | 8 | 92 | 57 | 117 | 2 |
When out of stock
15 Business Days
|
81,500JPY
(with tax 89,650JPY)
|
|
| - | - | 40 | - | 105 | 10 | 92 | 57 | 117 | 2 |
When out of stock
15 Business Days
|
82,500JPY
(with tax 90,750JPY)
|
|
| - | - | 50 | - | 120 | 10 | 92 | 57 | 117 | 2 |
When out of stock
15 Business Days
|
83,700JPY
(with tax 92,070JPY)
|
|
| - | - | - | 20 | 80 | 8 | 92 | 57 | 117 | 2 |
When out of stock
15 Business Days
|
80,700JPY
(with tax 88,770JPY)
|
|
| - | - | - | 25 | 80 | 8 | 92 | 57 | 117 | 2 |
When out of stock
15 Business Days
|
81,500JPY
(with tax 89,650JPY)
|
|
| - | - | - | 40 | 105 | 10 | 92 | 57 | 117 | 2 |
When out of stock
15 Business Days
|
82,500JPY
(with tax 90,750JPY)
|
|
| - | - | - | 50 | 120 | 10 | 92 | 57 | 117 | 2 |
When out of stock
15 Business Days
|
83,700JPY
(with tax 92,070JPY)
|
|
| 16 | - | - | - | 30 | 4.5 | 82 | 67 | 107 | 3 |
stock
4
1-2 Business Days
When out of stock
Answered later
|
114,900JPY
(with tax 126,390JPY)
|
|
| 25 | - | - | - | 40 | 5.1 | 89 | 59 | 115 | 3 |
stock
4
1-2 Business Days
When out of stock
15 Business Days
|
115,100JPY
(with tax 126,610JPY)
|
|
| 40 | - | - | - | 55 | 5.1 | 89 | 60 | 115 | 3 |
stock
5
1-2 Business Days
When out of stock
15 Business Days
|
115,400JPY
(with tax 126,940JPY)
|
|
| 50 | - | - | - | 75 | 5.1 | 89 | 59 | 115 | 3 |
When out of stock
15 Business Days
|
115,900JPY
(with tax 127,490JPY)
|
|
| - | 34 | - | - | 34 | 7.5 | 79 | 70 | 104 | 3 |
stock
3
1-2 Business Days
When out of stock
Answered later
|
115,900JPY
(with tax 127,490JPY)
|
|
| - | 70 | - | - | 70 | 12.7 | 91 | 58 | 116 | 3 |
stock
2
1-2 Business Days
When out of stock
15 Business Days
|
117,100JPY
(with tax 128,810JPY)
|
|
| - | - | 20 | - | 80 | 8 | 92 | 57 | 117 | 3 |
When out of stock
15 Business Days
|
116,900JPY
(with tax 128,590JPY)
|
|
| - | - | 25 | - | 90 | 8 | 92 | 57 | 117 | 3 |
When out of stock
15 Business Days
|
117,700JPY
(with tax 129,470JPY)
|
|
| - | - | 40 | - | 105 | 10 | 92 | 57 | 117 | 3 |
When out of stock
15 Business Days
|
118,700JPY
(with tax 130,570JPY)
|
|
| - | - | 50 | - | 120 | 10 | 92 | 57 | 117 | 3 |
When out of stock
15 Business Days
|
119,900JPY
(with tax 131,890JPY)
|
|
| - | - | - | 20 | 80 | 8 | 92 | 57 | 117 | 3 |
stock
1
1-2 Business Days
When out of stock
15 Business Days
|
116,900JPY
(with tax 128,590JPY)
|
|
| - | - | - | 25 | 90 | 8 | 92 | 57 | 117 | 3 |
When out of stock
15 Business Days
|
117,700JPY
(with tax 129,470JPY)
|
|
| - | - | - | 40 | 105 | 10 | 92 | 57 | 117 | 3 |
When out of stock
15 Business Days
|
118,700JPY
(with tax 130,570JPY)
|
|
| - | - | - | 50 | 120 | 10 | 92 | 57 | 117 | 3 |
When out of stock
15 Business Days
|
119,900JPY
(with tax 131,890JPY)
|
|
| 40 | - | - | - | 55 | 5 | 74 | 57 | 100 | 4 |
stock
3
1-2 Business Days
When out of stock
Answered later
|
176,400JPY
(with tax 194,040JPY)
|
|
| 50 | - | - | - | 75 | 6 | 74 | 64 | 100 | 4 |
When out of stock
Answered later
|
176,900JPY
(with tax 194,590JPY)
|
|
| - | 70 | - | - | 70 | 12.7 | 75 | 56 | 101 | 4 |
stock
4
1-2 Business Days
When out of stock
Answered later
|
178,100JPY
(with tax 195,910JPY)
|
|
| - | - | 25 | - | 90 | 8 | 77 | 54 | 102 | 4 |
When out of stock
15 Business Days
|
178,700JPY
(with tax 196,570JPY)
|
|
| - | - | 40 | - | 105 | 10 | 77 | 54 | 102 | 4 |
stock
1
1-2 Business Days
When out of stock
15 Business Days
|
179,700JPY
(with tax 197,670JPY)
|
|
| - | - | 50 | - | 120 | 10 | 77 | 54 | 102 | 4 |
When out of stock
15 Business Days
|
180,900JPY
(with tax 198,990JPY)
|
|
| - | - | - | 25 | 90 | 8 | 77 | 54 | 102 | 4 |
When out of stock
15 Business Days
|
178,700JPY
(with tax 196,570JPY)
|
|
| - | - | - | 40 | 105 | 10 | 77 | 54 | 102 | 4 |
When out of stock
15 Business Days
|
179,700JPY
(with tax 197,670JPY)
|
|
| - | - | - | 50 | 120 | 10 | 77 | 54 | 102 | 4 |
When out of stock
15 Business Days
|
180,900JPY
(with tax 198,990JPY)
|
|
| 16 | - | - | - | 30 | 6 | 77 | 69 | 90 | 5 |
stock
1
1-2 Business Days
When out of stock
Answered later
|
343,300JPY
(with tax 377,630JPY)
|
|
| 25 | - | - | - | 40 | 6 | 85 | 62 | 98 | 5 |
stock
3
1-2 Business Days
When out of stock
15 Business Days
|
343,500JPY
(with tax 377,850JPY)
|
|
| 40 | - | - | - | 55 | 5 | 74 | 58 | 100 | 5 |
stock
3
1-2 Business Days
When out of stock
15 Business Days
|
343,800JPY
(with tax 378,180JPY)
|
|
| 50 | - | - | - | 75 | 6 | 74 | 58 | 100 | 5 |
When out of stock
15 Business Days
|
344,300JPY
(with tax 378,730JPY)
|
|
| - | 34 | - | - | 34 | 7.5 | 74 | 73 | 87 | 5 |
When out of stock
Answered later
|
344,300JPY
(with tax 378,730JPY)
|
|
| - | 70 | - | - | 70 | 12.7 | 75 | 57 | 101 | 5 |
stock
3
1-2 Business Days
When out of stock
15 Business Days
|
345,500JPY
(with tax 380,050JPY)
|
|
| - | - | 20 | - | 80 | 8 | 87 | 59 | 100 | 5 |
stock
1
1-2 Business Days
When out of stock
15 Business Days
|
345,300JPY
(with tax 379,830JPY)
|
|
| - | - | 25 | - | 90 | 8 | 77 | 56 | 102 | 5 |
When out of stock
15 Business Days
|
346,100JPY
(with tax 380,710JPY)
|
|
| - | - | 40 | - | 105 | 10 | 77 | 56 | 102 | 5 |
When out of stock
15 Business Days
|
347,100JPY
(with tax 381,810JPY)
|
|
| - | - | 50 | - | 120 | 10 | 77 | 56 | 102 | 5 |
When out of stock
15 Business Days
|
348,300JPY
(with tax 383,130JPY)
|
|
| - | - | - | 20 | 80 | 8 | 87 | 60 | 100 | 5 |
When out of stock
15 Business Days
|
345,300JPY
(with tax 379,830JPY)
|
|
| - | - | - | 25 | 90 | 8 | 77 | 56 | 102 | 5 |
When out of stock
15 Business Days
|
346,100JPY
(with tax 380,710JPY)
|
|
| - | - | - | 40 | 105 | 10 | 77 | 56 | 102 | 5 |
When out of stock
15 Business Days
|
347,100JPY
(with tax 381,810JPY)
|
|
| - | - | - | 50 | 120 | 10 | 77 | 56 | 102 | 5 |
When out of stock
15 Business Days
|
348,300JPY
(with tax 383,130JPY)
|
| NW/KF | ICF | VF | VG | A | B | C | D | E | Pairs of Thermocouple |
|---|---|---|---|---|---|---|---|---|---|
