  1. Cosmotec for Vacuum Components
  2. Feedthrough
  3. Coaxial
  4. SHV type
  5. Coaxial 10kV-SHV-R with 1 VF25 flange

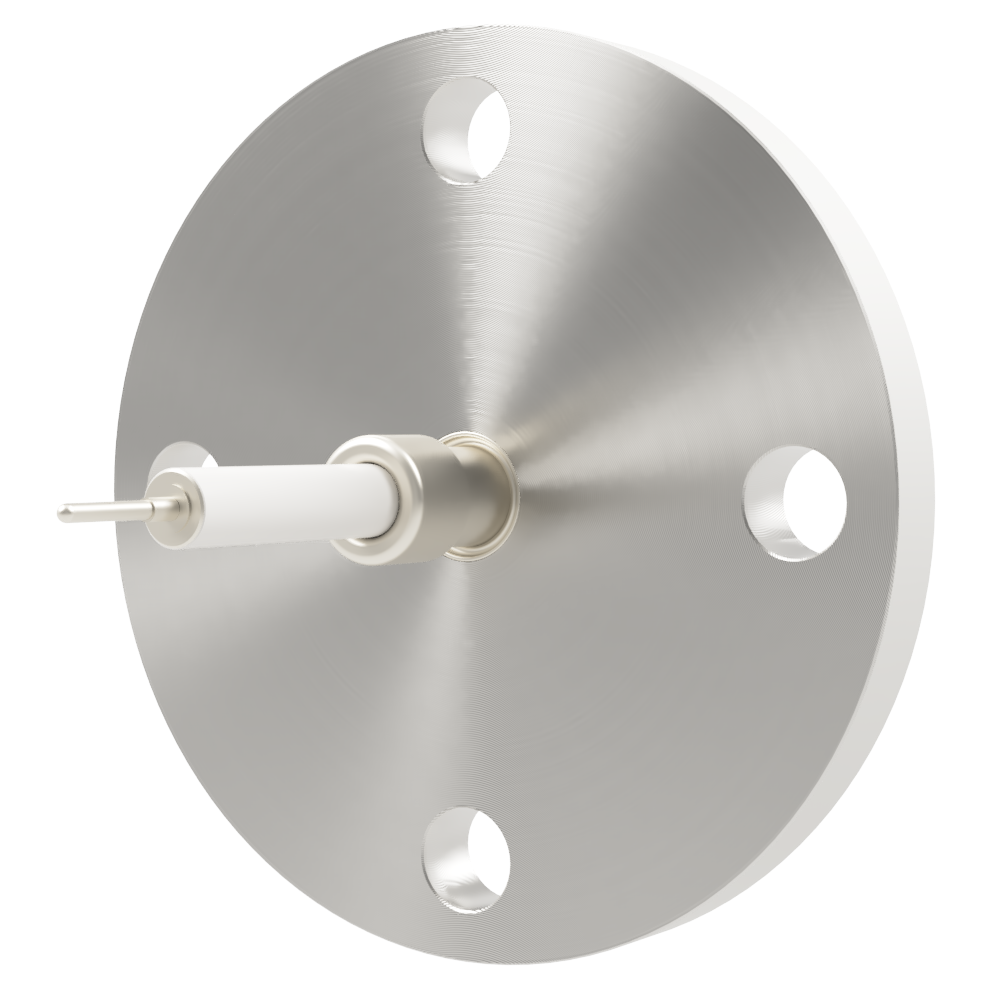

Coaxial 10kV-SHV-R with 1 VF25 flange

同軸 10kV-SHV-R 1個付き VF25 フランジ

Mouse over the image to enlarge it

同軸 10kV-SHV-R 1個付き VF25 フランジ
share the productshare the product
Facebook
LINE
Twitter
Product code :13459 Model:F2510SHR1

Safe High Voltage
▼ Coaxial SHV Ground Shield One Side Plug Mating
10kV 3A compatible
For 50Ω transmission
Ground and continuity
Electrode on vacuum side, SHV connector connection on atmospheric side only
Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

▼ In addition, the following types are standardized
For 5kV and 20kV
Floating shield plug mating on one side (5kV)
Ground shield plugging on both sides (5kV)
Floating shield plug mating on both sides (5kV)

▼ Custom-made products are also available
We can also provide special flange mounting with a combination of multiple types of terminals with a change in the number of poles.
Please contact us by clicking the "Inquiry" button on the right side of the page.

※Please note that plugs made by other manufacturers may not mate. Please be sure to use our plugs for this product.

Click here to request precision cleaning.

Basic Information
type SHV
Connection type The atmosphere-side plug-fitti
electrode Kovar ®
Flange material SUS 304
sleeve Kovar ®
Insulator Alumina ceramic
Maximum temperature 450℃
The lowest temperature -196℃
Leak rate <1.3x10-10Pa･㎥/sec
Classification Flanged terminal
type Ground shield
Impedance 50 Ω
frequency 100 MHz
Insulation resistance value 10⁹ ohm
Withstand voltage: DC 10 kV
Electric current / 1 pc. 3 A
RoHS2 corresponding ○
52,500 JPY (with tax 57,750JPY)
When out of stock
30 Business Days
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 NW/KF ICF VF VG A B C D P.C.D The number of electrode
Stock & Delivery
front.product.price
front.product.tax_included2
13459
F2510SHR1
- - 25 - 90 8 56 28 - 1
When out of stock
30 Business Days
52,500JPY (with tax 57,750JPY)
同軸 10kV-SHV-R 1個付き VF25 フランジ admin.label.item.size_image
NW/KF ICF VF VG A B C D P.C.D The number of electrode
- - 25 - 90 8 56 28 - 1
Coaxial 10kV-SHV-R with 1 VF25 flange
Product code :13459    Model:F2510SHR1
52,500JPY (with tax 57,750JPY)
Contact Us

Filter by model

フランジ

電極数

同軸 10kV-SHV-R 1個付き VF25 フランジ admin.label.item.catalog_image
*2個以上の真空側プラグをご使用される場合、接続先の内径は38mm以上を確保してください。
グランド及びフローティングタイプの違いについては以下を参照ください。
https://www.cosmotec-co.jp/info/case/1483/
Connection parts
Connection piece vacuum side one SHV-10 kV with plug Kapton coated cables L = 1000
Connection piece vacuum side one SHV-10 kV with plug Kapton coated cables L = 1000
Product code :14437
Model:VCK1000X/S1J
54,000JPY (with tax 59,400JPY)
Connection parts atmosphere side SHV-10kV plug
Connection parts atmosphere side SHV-10kV plug
Product code :14065
Model:ASP-SHV10KV
14,700JPY (with tax 16,170JPY)
Socket Contacts φ1.6 Coaxial/High Voltage Crimped type 10 pcs.
Socket Contacts φ1.6 Coaxial/High Voltage Crimped type 10 pcs.
Product code :15776
Model:SVC16-L18
7,300JPY (with tax 8,030JPY)
Connection piece vacuum side Kapton coated cables AWG # for 26 coaxial L = 1000
Connection piece vacuum side Kapton coated cables AWG # for 26 coaxial L = 1000
Product code :14428
Model:VCK1000/XX
12,100JPY (with tax 13,310JPY)
For connecting parts air-side cable SHV-10kV 1672669 L = 1000
For connecting parts air-side cable SHV-10kV 1672669 L = 1000
Product code :14450
Model:ACV1000SH1/XX
3,700JPY (with tax 4,070JPY)
