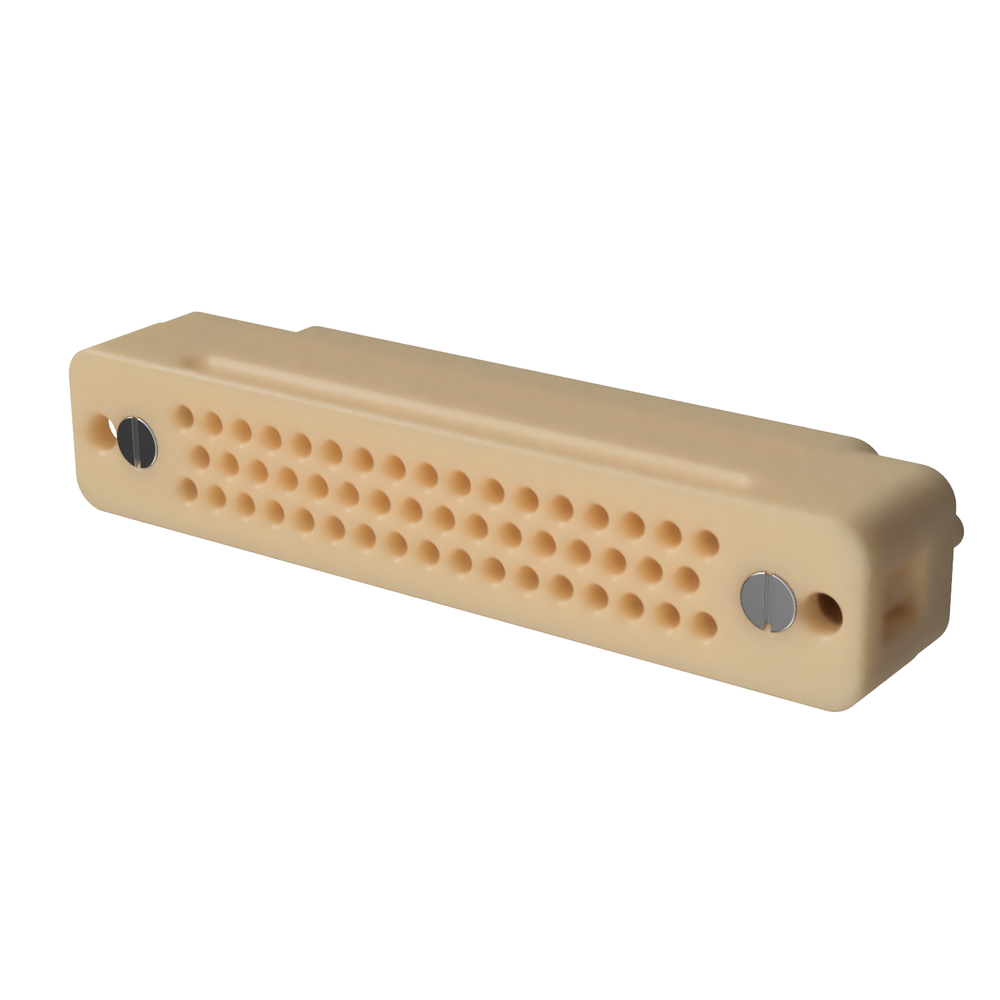

Connecting parts vacuum side D-Sub PEEK® insert 50PIN

接続部品 真空側 D-Sub PEEK® インサート 50PIN用

Mouse over the image to enlarge it

接続部品 真空側 D-Sub PEEK® インサート 50PIN用
share the productshare the product
Facebook
LINE
Twitter
Product code :14039 Model:VSPI50D

▼Vacuum-side insert for D-Sub
Vacuum side connector for D-sub equivalent to MIL-C-24308
Φ1.0 socket contact included
Please crimp with your cable.
Number of PINs supported: 9, 15, 25, 37, 50

▼Option
We can also perform assembly processing on the supplied cable. Please contact us from the "Inquiry" button on the right side of the page.

※Please click here to see the products with cable assembly.
※Please click here to see the cable unit.

Basic Information
screw SUS
Insulator PEEK®
Maximum temperature 250℃
The lowest temperature -50℃
Available pressure Atmospheric pressure ~ 10
RoHS2 corresponding ○
Vacuum and Air For vacuum
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 A B C D The number of electrode Screw size
Stock & Delivery
front.product.price
front.product.tax_included2
14039
VSPI50D
67.3 12.5 12.7 61.1 50 -
接続部品 真空側 D-Sub PEEK® インサート 50PIN用 admin.label.item.size_image
A B C D The number of electrode Screw size
67.3 12.5 12.7 61.1 50 -
Connecting parts vacuum side D-Sub PEEK® insert 50PIN
Product code :14039    Model:VSPI50D
Contact Us

Filter by model

電極数

接続部品 真空側 D-Sub PEEK® インサート 50PIN用 admin.label.item.catalog_image
Dサブのアセンブリ方法は以下の画像をクリックしてください。
Dサブ_アセンブリ方法
圧着工具の取扱い方法は以下の画像をクリックしてください。 圧着工具の取り扱い方法
