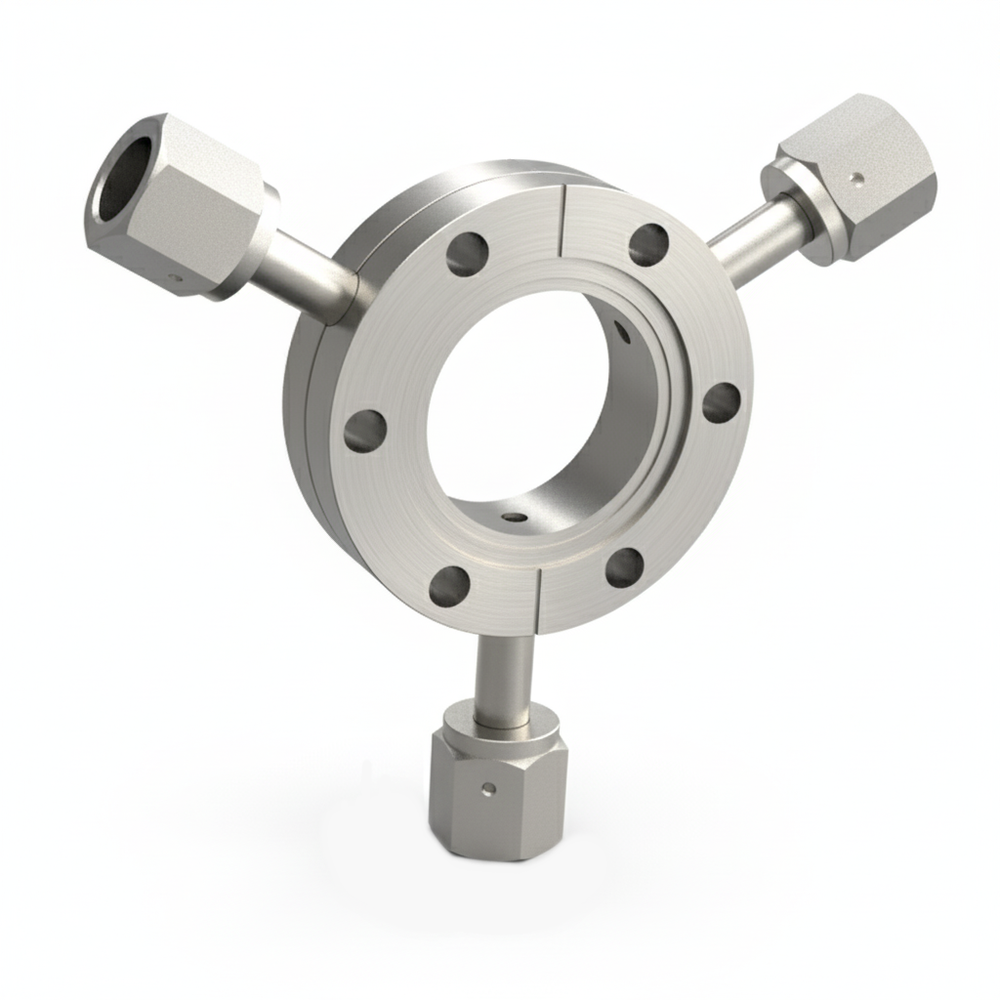

ICF70 Radial port flange, brass VCR1/4X3
▼ICF double-sided edge Radial Port Flange
Port extending from ICF double-sided edge flange to the side
SUS304 products are standardized
Use for installation of multiple units, simple chambers, etc.
▼The following types are standardized
Center flange (ICF): 70, 114, 152, 203
Port type: ICF, NW/KF, Tube end, Swagelok® fitting, VCR® fitting
Number of ports: 1, 2, 3, 6
▼about Bolt holes
Center flange: Throu hole or tapped hole
Side port (ICF): Tapped hole
*Customization is also available.
▼Products with similar purpose
Adapters (List): Convert various flanges to tubes, Swagelok®, VCR®, screws and other fittings.
Double-sided edge radial port flanges may be used as mini-chambers by sealing both ends with a blank flange. If more space is needed on the vacuum side, a 6-way cross or 6-way cube.
▼Other
We can change the flange size, port type, and quantity. Please contact us by clicking the "Inquiry" button on the right side of the page.
For precision cleaning requests, please click here.
| Basic Information | |
|---|---|
| Flange material | SUS 304 |
| RoHS2 corresponding | ○ |
front.product.product_code Model |
Base flange / Port flange | Joint standard | A | B | C | D | L | T | The number of ports | Fixed/rotating | Thru or Tap | Stock & Delivery |
front.product.price front.product.tax_included2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ICF70 / FVCR1/4 | VCR® F | 70 | 38 | 6.35 | 4.35 | 95 | 19.1 | 3 | fix | Through | |||
| Base flange / Port flange | Joint standard | A | B | C | D | L | T | The number of ports | Fixed/rotating | Thru or Tap |
|---|---|---|---|---|---|---|---|---|---|---|
| ICF70 / FVCR1/4 | VCR® F | 70 | 38 | 6.35 | 4.35 | 95 | 19.1 | 3 | fix | Through |
