ICF two-sided edge radial port flange
▼ICF double-sided edge Radial Port Flange
Port extending from ICF double-sided edge flange to the side
SUS304 products are standardized
Use for installation of multiple units, simple chambers, etc.
▼The following types are standardized
Center flange (ICF): 70, 114, 152, 203
Port type: ICF, NW/KF, Tube end, Swagelok® fitting, VCR® fitting
Number of ports: 1, 2, 3, 6
▼about Bolt holes
Center flange: Throu hole or tapped hole
Side port (ICF): Tapped hole
*Customization is also available.
▼Products with similar purpose
Adapters (List): Convert various flanges to tubes, Swagelok®, VCR®, screws and other fittings.
Double-sided edge radial port flanges may be used as mini-chambers by sealing both ends with a blank flange. If more space is needed on the vacuum side, a 6-way cross or 6-way cube.
▼Other
We can change the flange size, port type, and quantity. Please contact us by clicking the "Inquiry" button on the right side of the page.
For precision cleaning requests, please click here.
| Basic Information | |
|---|---|
| Flange material | SUS 304 |
| RoHS2 corresponding | ○ |
We have 32 type candidate

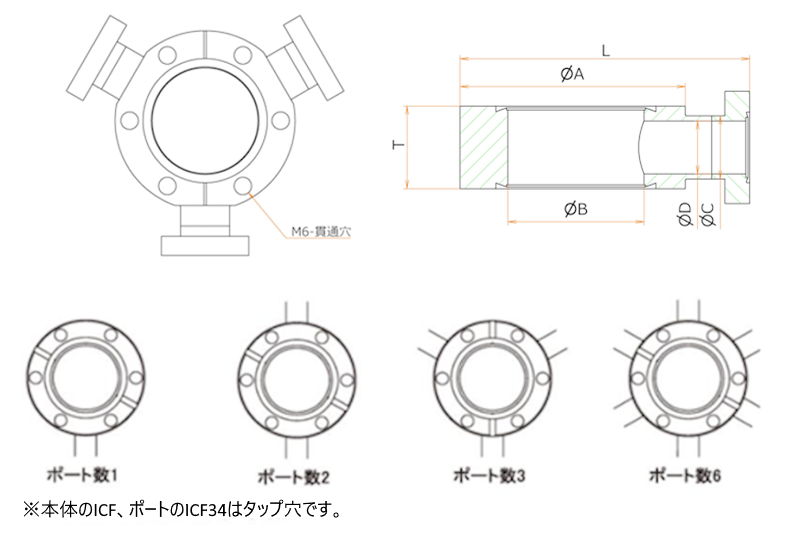

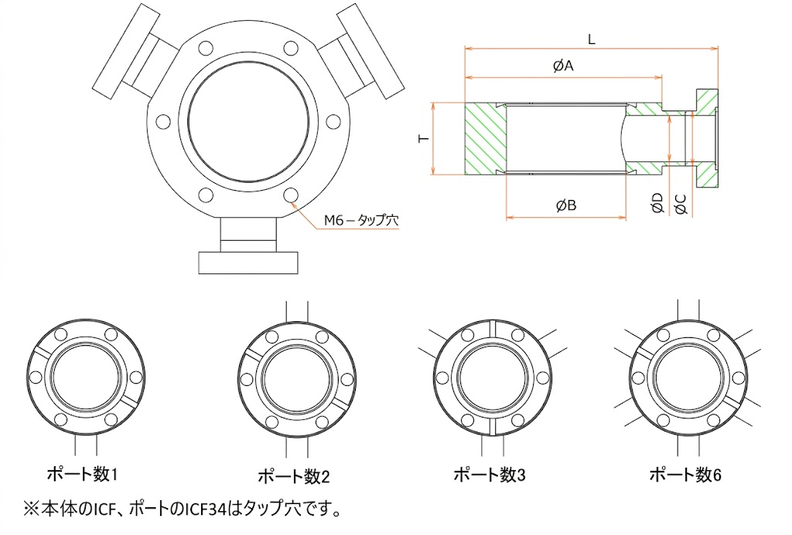

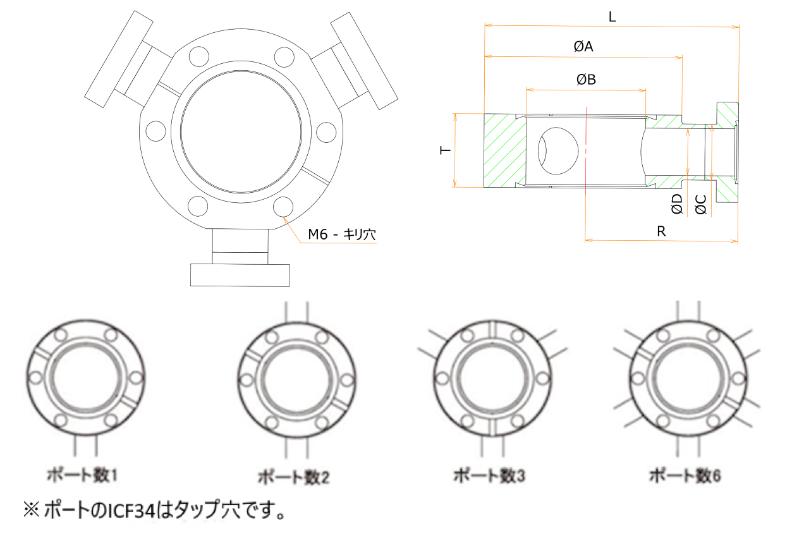

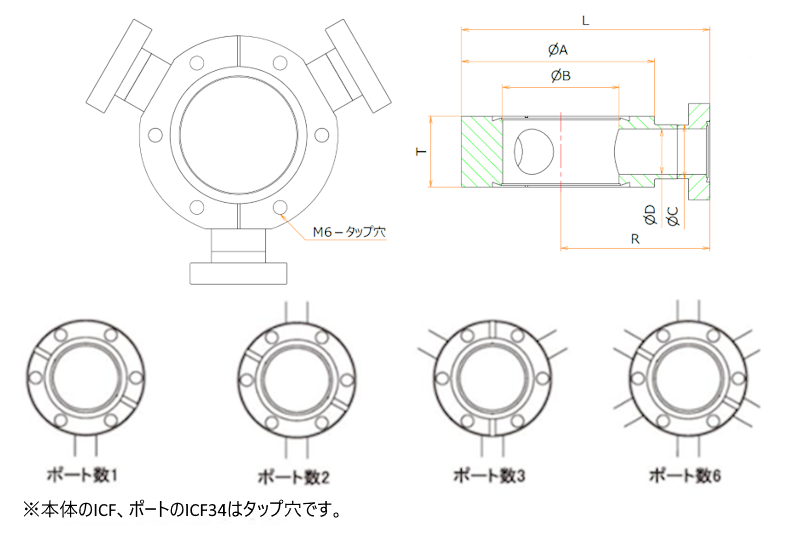

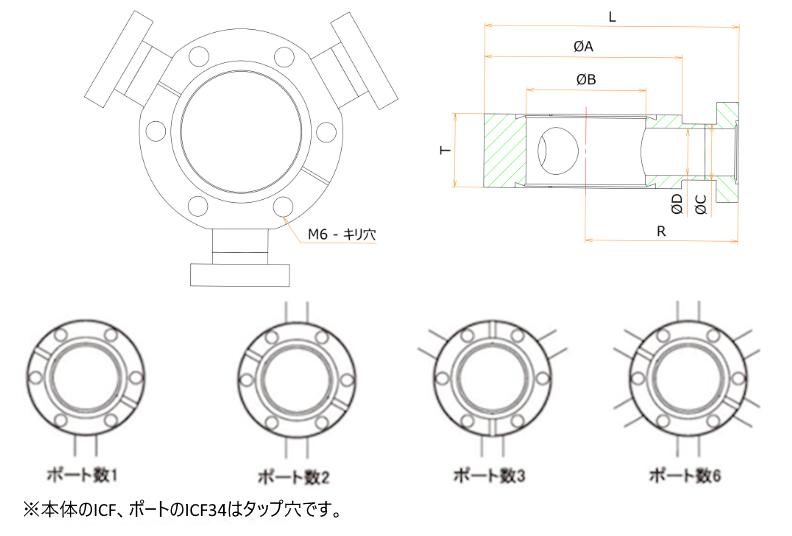

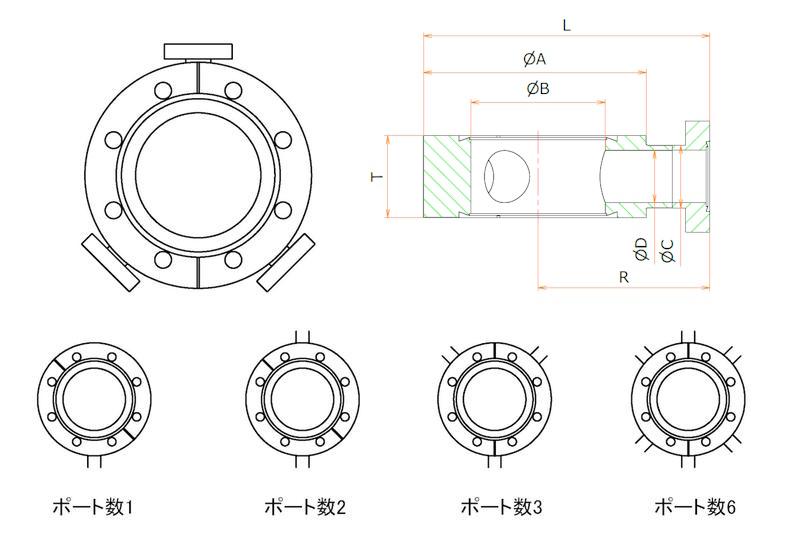

※ Please click on the product code or model for more information.
front.product.product_code Model |
Base flange / Port flange | Joint standard | A | B | C | D | L | T | The number of ports | Fixed/rotating | Thru or Tap | Stock & Delivery |
front.product.price front.product.tax_included2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ICF70 / ICF34 | ICF | 70 | 41.1 | 19.1 | 16 | 88 | 25 | 1 | fix | Through |
stock
20
1-2 Business Days
When out of stock
Answered later
|
44,100JPY
(with tax 48,510JPY)
|
|
| ICF70 / ICF34 | ICF | 70 | 41.1 | 19.1 | 16 | 88 | 25 | 2 | fix | Through |
stock
3
1-2 Business Days
When out of stock
21 Business Days
|
54,100JPY
(with tax 59,510JPY)
|
|
| ICF70 / ICF34 | ICF | 70 | 41.1 | 19.1 | 16 | 88 | 25 | 3 | fix | Through |
stock
1
1-2 Business Days
waiting for completion
2
Arrival on Jan 24,2025
When out of stock
21 Business Days
|
64,100JPY
(with tax 70,510JPY)
|
|
| ICF70 / ICF34 | ICF | 70 | 41.1 | 19.1 | 16 | 88 | 25 | 6 | fix | Through |
stock
4
1-2 Business Days
When out of stock
21 Business Days
|
97,100JPY
(with tax 106,810JPY)
|
|
| ICF114 / ICF34 | ICF | 114 | 63 | 12.7 | 10.7 | 144 | 17.5 | 1 | fix | Through |
stock
2
1-2 Business Days
When out of stock
21 Business Days
|
51,500JPY
(with tax 56,650JPY)
|
|
| ICF114 / ICF34 | ICF | 114 | 63 | 12.7 | 10.7 | 144 | 17.5 | 2 | fix | Through |
stock
1
1-2 Business Days
When out of stock
21 Business Days
|
61,500JPY
(with tax 67,650JPY)
|
|
| ICF114 / ICF34 | ICF | 114 | 63 | 12.7 | 10.7 | 144 | 17.5 | 3 | fix | Through |
stock
1
1-2 Business Days
When out of stock
21 Business Days
|
71,500JPY
(with tax 78,650JPY)
|
|
| ICF114 / ICF34 | ICF | 114 | 63 | 12.7 | 10.7 | 123 | 17.5 | 3 | fix | Through |
stock
1
1-2 Business Days
When out of stock
21 Business Days
|
71,500JPY
(with tax 78,650JPY)
|
|
| ICF152 / ICF34 | ICF | 152 | 101.8 | 19 | 15 | 167 | 20 | 1 | fix | Through |
stock
2
1-2 Business Days
When out of stock
21 Business Days
|
67,300JPY
(with tax 74,030JPY)
|
|
| ICF152 / ICF34 | ICF | 152 | 101.8 | 19 | 15 | 167 | 20 | 2 | fix | Through |
stock
2
1-2 Business Days
When out of stock
21 Business Days
|
77,300JPY
(with tax 85,030JPY)
|
|
| ICF152 / ICF34 | ICF | 152 | 101.8 | 19 | 15 | 167 | 20 | 3 | fix | Through |
When out of stock
21 Business Days
|
87,300JPY
(with tax 96,030JPY)
|
|
| ICF152 / ICF34 | ICF | 152 | 101.8 | 19 | 15 | 167 | 20 | 3 | fix | Through |
When out of stock
21 Business Days
|
87,300JPY
(with tax 96,030JPY)
|
|
| ICF203 / ICF34 | ICF | 203 | 153 | 19 | 15.4 | 212 | 22 | 1 | fix | Through |
stock
1
1-2 Business Days
When out of stock
21 Business Days
|
85,300JPY
(with tax 93,830JPY)
|
|
| ICF70 / ICF34 | ICF | 70 | 41.1 | 19.1 | 16 | 88 | 25 | 1 | fix | tapped |
stock
2
1-2 Business Days
When out of stock
21 Business Days
|
71,100JPY
(with tax 78,210JPY)
|
|
| ICF203 / ICF34 | ICF | 203 | 153 | 19 | 15.4 | 212 | 22 | 2 | fix | Through |
When out of stock
21 Business Days
|
95,300JPY
(with tax 104,830JPY)
|
|
| ICF203 / ICF34 | ICF | 203 | 153 | 19 | 15.4 | 212 | 22 | 3 | fix | Through |
When out of stock
21 Business Days
|
105,300JPY
(with tax 115,830JPY)
|
|
| ICF70 / NW16 | NW/KF | 70 | 41.1 | 21.7 | 17.5 | 84 | 25 | 1 | fix | Through |
stock
2
1-2 Business Days
When out of stock
21 Business Days
|
57,100JPY
(with tax 62,810JPY)
|
|
| ICF70 / NW16 | NW/KF | 70 | 41.1 | 21.7 | 17.5 | 84 | 25 | 2 | fix | Through |
stock
1
1-2 Business Days
When out of stock
30 Business Days
|
67,100JPY
(with tax 73,810JPY)
|
|
| ICF70 / NW16 | NW/KF | 70 | 41.1 | 21.7 | 17.5 | 84 | 25 | 3 | fix | Through |
When out of stock
30 Business Days
|
77,100JPY
(with tax 84,810JPY)
|
|
| ICF70 / TA1/4 | Tube end | 70 | 38 | 6.35 | 4.35 | 90 | 19.1 | 3 | fix | Through |
When out of stock
Answered later
|
62,600JPY
(with tax 68,860JPY)
|
|
| ICF70 / TA1/4 | Tube end | 70 | 38 | 6.35 | 4.35 | 90 | 19.1 | 1 | fix | Through |
stock
3
1-2 Business Days
When out of stock
Answered later
|
45,600JPY
(with tax 50,160JPY)
|
|
| ICF70 / TA1/4 | Tube end | 70 | 38 | 6.35 | 4.35 | 90 | 19.1 | 2 | fix | Through |
When out of stock
Answered later
|
54,100JPY
(with tax 59,510JPY)
|
|
| ICF70 / TA1/4 | Tube end | 70 | 38 | 6.35 | 4.35 | 90 | 19.1 | 3 | fix | Through |
stock
2
1-2 Business Days
When out of stock
Answered later
|
62,600JPY
(with tax 68,860JPY)
|
|
| ICF70 / SW1/4 | Swagelok® | 70 | 38 | 6.35 | 4.35 | 105 | 19.1 | 1 | fix | Through |
stock
6
1-2 Business Days
When out of stock
Answered later
|
47,100JPY
(with tax 51,810JPY)
|
|
| ICF70 / SW1/4 | Swagelok® | 70 | 38 | 6.35 | 4.35 | 105 | 19.1 | 2 | fix | Through |
stock
2
1-2 Business Days
When out of stock
Answered later
|
57,100JPY
(with tax 62,810JPY)
|
|
| ICF70 / SW1/4 | Swagelok® | 70 | 38 | 6.35 | 4.35 | 105 | 19.1 | 3 | fix | Through |
stock
2
1-2 Business Days
When out of stock
Answered later
|
67,100JPY
(with tax 73,810JPY)
|
|
| ICF70 / FVCR1/4 | VCR® F | 70 | 38 | 6.35 | 4.35 | 95 | 19.1 | 1 | fix | Through |
stock
8
1-2 Business Days
When out of stock
Answered later
|
48,100JPY
(with tax 52,910JPY)
|
|
| ICF70 / FVCR1/4 | VCR® F | 70 | 38 | 6.35 | 4.35 | 95 | 19.1 | 2 | fix | Through |
stock
2
1-2 Business Days
When out of stock
Answered later
|
59,100JPY
(with tax 65,010JPY)
|
|
| ICF70 / FVCR1/4 | VCR® F | 70 | 38 | 6.35 | 4.35 | 95 | 19.1 | 3 | fix | Through |
When out of stock
Answered later
|
50,600JPY
(with tax 55,660JPY)
|
|
| ICF70 / MVCR1/4 | VCR® M | 70 | 38 | 6.35 | 4.35 | 95 | 19.1 | 1 | fix | Through |
When out of stock
Answered later
|
30,500JPY
(with tax 33,550JPY)
|
|
| ICF70 / MVCR1/4 | VCR® M | 70 | 38 | 6.35 | 4.35 | 95 | 19.1 | 2 | fix | Through |
When out of stock
Answered later
|
40,500JPY
(with tax 44,550JPY)
|
|
| ICF70 / MVCR1/4 | VCR® M | 70 | 38 | 6.35 | 4.35 | 95 | 19.1 | 3 | fix | Through |
When out of stock
Answered later
|
50,500JPY
(with tax 55,550JPY)
|
