Feedthrough multi-pin MS Guided (MIL-C-5015) 4PIN

Basic Information
The number of electrode	4
type	standard
Electric current / 1 pc.	3 A
Total current/1 terminal	9.9 A
Withstand voltage: DC	500 V
Insulation resistance value	10⁹ ohm
frequency	10 MHz
Connection type	MS（MIL-C5015）
electrode	Kovar ®
Flange material	SUS 304
sleeve	Kovar ®
Insulator	Alumina ceramic
Maximum temperature	450℃
The lowest temperature	-196℃
Leak rate	<1.3x10^-10Pa･㎥/sec
RoHS2 corresponding	○

We have 28 type candidate

※ Please click on the product code or model for more information.

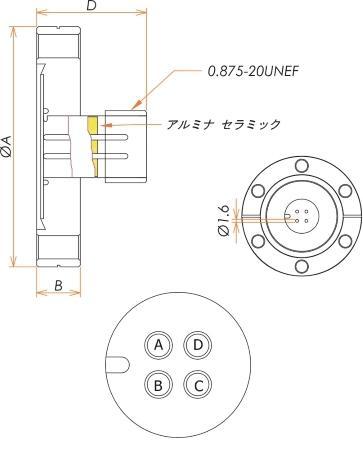

front.product.product_code Model	NW/KF	ICF	VF	VG	A	B	D	The contents of goods	Stock & Delivery	front.product.price front.product.tax_included2
14869 N16MM41G	16	-	-	-	30	6	34	Only flanged terminal	stock 12 1-2 Business Days When out of stock Answered later	75,400JPY (with tax 82,940JPY)
16391 N16MM41GUT1A	16	-	-	-	30	6	34	Assembled set	stock 12 1-2 Business Days When out of stock Answered later	97,600JPY (with tax 107,360JPY)
14870 N25MM41G	25	-	-	-	40	6	34	Only flanged terminal	stock 10 1-2 Business Days When out of stock Answered later	75,600JPY (with tax 83,160JPY)
16392 N25MM41GUT1A	25	-	-	-	40	6	34	Assembled set	stock 10 1-2 Business Days When out of stock Answered later	97,800JPY (with tax 107,580JPY)
14871 N40MM41G	40	-	-	-	55	6	34	Only flanged terminal	stock 14 1-2 Business Days When out of stock Answered later	75,900JPY (with tax 83,490JPY)
16393 N40MM41GUT1A	40	-	-	-	55	6	34	Assembled set	stock 14 1-2 Business Days When out of stock Answered later	98,100JPY (with tax 107,910JPY)
14872 C34MM41G	-	34	-	-	34	7.5	36.5	Only flanged terminal	stock 28 1-2 Business Days When out of stock Answered later	76,200JPY (with tax 83,820JPY)
16394 C34MM41GUT1A	-	34	-	-	34	7.5	36.5	Assembled set	stock 28 1-2 Business Days When out of stock Answered later	97,500JPY (with tax 107,250JPY)
14873 C70MM41G	-	70	-	-	70	12	40	Only flanged terminal	stock 17 1-2 Business Days When out of stock Answered later	77,000JPY (with tax 84,700JPY)
16395 C70MM41GUT1A	-	70	-	-	70	12	40	Assembled set	stock 17 1-2 Business Days When out of stock Answered later	99,200JPY (with tax 109,120JPY)
15908 F20MM41G	-	-	20	-	80	8	37	Only flanged terminal	stock 2 1-2 Business Days When out of stock Answered later	107,100JPY (with tax 117,810JPY)
16899 F20MM41GUT1A	-	-	20	-	80	8	37	Assembled set	stock 2 1-2 Business Days When out of stock Answered later	129,300JPY (with tax 142,230JPY)
15911 F25MM41G	-	-	25	-	90	8	37	Only flanged terminal	stock 1 1-2 Business Days When out of stock Answered later	107,400JPY (with tax 118,140JPY)
16900 F25MM41GUT1A	-	-	25	-	90	8	37	Assembled set	stock 1 1-2 Business Days When out of stock Answered later	129,600JPY (with tax 142,560JPY)
15916 F40MM41G	-	-	40	-	105	10	39	Only flanged terminal	stock 1 1-2 Business Days When out of stock Answered later	108,000JPY (with tax 118,800JPY)
16901 F40MM41GUT1A	-	-	40	-	105	10	39	Assembled set	stock 1 1-2 Business Days When out of stock Answered later	130,200JPY (with tax 143,220JPY)
15923 F50MM41G	-	-	50	-	120	10	39	Only flanged terminal	stock 1 1-2 Business Days When out of stock Answered later	108,600JPY (with tax 119,460JPY)
16902 F50MM41GUT1A	-	-	50	-	120	10	39	Assembled set	stock 1 1-2 Business Days When out of stock Answered later	130,800JPY (with tax 143,880JPY)
15930 G20MM41G	-	-	-	20	80	8	37	Only flanged terminal	stock 1 1-2 Business Days When out of stock Answered later	107,100JPY (with tax 117,810JPY)
16903 G20MM41GUT1A	-	-	-	20	80	8	37	Assembled set	stock 1 1-2 Business Days When out of stock Answered later	129,300JPY (with tax 142,230JPY)
15933 G25MM41G	-	-	-	25	90	8	37	Only flanged terminal	stock 1 1-2 Business Days When out of stock Answered later	107,400JPY (with tax 118,140JPY)
16904 G25MM41GUT1A	-	-	-	25	90	8	37	Assembled set	stock 1 1-2 Business Days When out of stock Answered later	129,600JPY (with tax 142,560JPY)
15938 G40MM41G	-	-	-	40	105	10	39	Only flanged terminal	stock 1 1-2 Business Days When out of stock Answered later	108,000JPY (with tax 118,800JPY)
16905 G40MM41GUT1A	-	-	-	40	105	10	39	Assembled set	stock 1 1-2 Business Days When out of stock Answered later	130,200JPY (with tax 143,220JPY)
15945 G50MM41G	-	-	-	50	120	10	39	Only flanged terminal	stock 1 1-2 Business Days When out of stock Answered later	108,600JPY (with tax 119,460JPY)
16906 G50MM41GUT1A	-	-	-	50	120	10	39	Assembled set	stock 1 1-2 Business Days When out of stock Answered later	130,800JPY (with tax 143,880JPY)
40539 G50MM41GA	-	-	-	50	120	10	42	Only flanged terminal	When out of stock Answered later	108,600JPY (with tax 119,460JPY)
40540 G50MM41GUT1B	-	-	-	50	120	10	42	Assembled set	When out of stock Answered later	130,800JPY (with tax 143,880JPY)

NW/KF	ICF	VF	VG	A	B	D	The contents of goods

To detail page Contact Us

Quantity

For member

Password

Keep me logged in

Your email address is case sensitive. if you have registered with uppercase letters,
please entry your email address in uppercase

e.g.：

registration

Suzuki@cosmotec-co.jp

success

Suzuki@cosmotec-co.jp

failure

suzuki@cosmotec-co.jp（The first letter is lowercase）

※ If you forgot your password, go to the password reissue page.
※ If you forgot your email address, please contact us from the Contact Us page.

製品	製品コード	型式	数量
フランジ付き端子	○○○○○	***MM41G	1個
真空側PEEKインサート	16333	VSPI4MSGA	1個
大気側プラグ	13035	ASP4MS	1個
ソケットコンタクト	10147	SVC16	10本/1組
