Feedthrough multi-pin BURNDY® high current type Gu

Feedthrough multi-pin BURNDY® high current type Gu

▼BURNDY High current type
Mates with bayonet-locking plugs
Single-ended round multi-pin terminals for measurement and control
500V 10A (per pin)/60A (entire 30 pins)
Easy connection by simply inserting along the guide groove even in difficult-to-see locations
In addition to vacuum/atmosphere side connection parts and tools, we also offer pre-assembled products and assembly services.

▼ The following types are standardized (List)
Number of PINs: 4, 8, 12, 19, 22, 30, 48
Flange: NW/KF, ICF, JIS-VF, JIS-VG
Standard (3A) type is available from here.

▼ Custom-made products are also available.
We also accept multiple terminal combinations, flange size changes, and mounting on special flanges.
Please contact us by clicking the "Inquiry" button on the right side of the page.

For precision cleaning requests, please click here.

see next
Basic Information
The number of electrode 30
type High current
Electric current / 1 pc. 10 A
Total current/1 terminal 60 A
Withstand voltage: DC 500 V
Insulation resistance value 10⁹ ohm
frequency 10 MHz
Connection type BURNDY
electrode Alumel ®
Flange material SUS 304
sleeve Kovar ®
Insulator Alumina ceramic
Maximum temperature 450℃
The lowest temperature -196℃
Leak rate <1.3x10-10Pa･㎥/sec
RoHS2 corresponding ○
Inquiry for this subcategory

We have 16 type candidate

※ Please click on the product code or model for more information.

front.product.product_code
Model

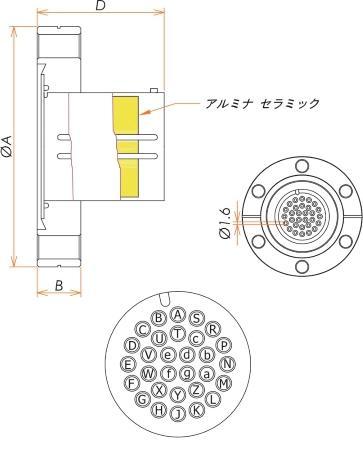

 NW/KF ICF VF VG A B D The contents of goods
Stock & Delivery
front.product.price
front.product.tax_included2
14622
N40MB301ALG
40 - - - 55 6 39 Only flanged terminal
16384
N40MB301ALGUT1A
40 - - - 55 6 39 Assembled set
14623
C70MB301ALG
- 70 - - 70 12 45 Only flanged terminal
16386
C70MB301ALGUT1A
- 70 - - 70 12 45 Assembled set
40491
F25MB301ALGA
- - 25 - 90 8 45 Only flanged terminal
40492
F25MB301ALGUT1B
- - 25 - 90 8 45 Assembled set
40493
F40MB301ALGA
- - 40 - 105 10 47 Only flanged terminal
40494
F40MB301ALGUT1B
- - 40 - 105 10 47 Assembled set
40495
F50MB301ALGA
- - 50 - 120 10 47 Only flanged terminal
40496
F50MB301ALGUT1B
- - 50 - 120 10 47 Assembled set
15987
G25MB301ALG
- - - 25 90 8 42 Only flanged terminal
16892
G25MB301ALGUT1A
- - - 25 90 8 42 Assembled set
40499
G40MB301ALGA
- - - 40 105 10 47 Only flanged terminal
40500
G40MB301ALGUT1B
- - - 40 105 10 47 Assembled set
40501
G50MB301ALGA
- - - 50 120 10 47 Only flanged terminal
40502
G50MB301ALGUT1B
- - - 50 120 10 47 Assembled set
NW/KF ICF VF VG A B D The contents of goods
To detail page Contact Us

Filter by model

stock status

Flange

The contents of goods

フィードスルー 多ピン BURNDY® 高電流タイプ ガイド付き 30PIN admin.label.item.catalog_image
製品 製品コード 型式 数量
フランジ付き端子 ○○○○○ ***MB301ALG 1個
真空側PEEKインサート 16324 VSPI30GA 1個
大気側プラグ 10011 ASP30 1個
ソケットコンタクト 10147 SVC16 10本/6組

フランジ付き端子の○○○○○は5桁コード、***はフランジ規格が入ります
NW16 → N16
NW25 → N25
NW40 → N40
ICF34 → C34
ICF70 → C70
Burndyタイプのアセンブリ方法は以下の画像をクリックしてください。
Burndyタイプ_アセンブリ方法
圧着工具の取扱い方法は以下の画像をクリックしてください。 圧着工具の取り扱い方法
Connection parts
Connection parts crimp type 10 pieces for socket contact φ1.6
Connection parts crimp type 10 pieces for socket contact φ1.6
Product code :10147
Model:SVC16
Connection piece vacuum side PEEK® insulating insert BURNDY® 30 for PIN
Connection piece vacuum side PEEK® insulating insert BURNDY® 30 for PIN
Product code :16324
Model:VSPI30GA
Connection parts atmosphere side plug BURNDY 30 for PIN
Connection parts atmosphere side plug BURNDY 30 for PIN
Product code :10011
Model:ASP30
EXTRACTION TOOL for Φ1.6
EXTRACTION TOOL for Φ1.6
Product code :14914
Model:EXT16
Crimp Tool AWG #12 - #28
Crimp Tool AWG #12 - #28
Product code :10052
Model:CT2313
Connection parts Vacuum side Polyimide sheathed cable AWG#22 for multi-pin L=1000
Connection parts Vacuum side Polyimide sheathed cable AWG#22 for multi-pin L=1000
Product code :17840
Model:VMK1000/XXA
Connecting parts Vacuum side PEEK® sheathed cable AWG#20 for multiple pins L=1000
Connecting parts Vacuum side PEEK® sheathed cable AWG#20 for multiple pins L=1000
Product code :14487
Model:VMP1000/XX
Connection part Vacuum side Socket contact with polyimide sheathed cable L=1000
Connection part Vacuum side Socket contact with polyimide sheathed cable L=1000
Product code :18473
Model:VMK1000X/SA
Connecting parts Vacuum side Insert + Kapton sheathed cable included BURNDY®30PIN L=1000
Connecting parts Vacuum side Insert + Kapton sheathed cable included BURNDY®30PIN L=1000
Product code :16578
Model:VMBK1KX/30PIGA
Connection parts Atmosphere side Polyethylene sheathed cable AWG#20 for multi-pin L=1000
Connection parts Atmosphere side Polyethylene sheathed cable AWG#20 for multi-pin L=1000
Product code :14484
Model:AMV1000/XX
Connection parts Atmosphere side Socket contact with polyethylene sheathed cable L=1000
Connection parts Atmosphere side Socket contact with polyethylene sheathed cable L=1000
Product code :14108
Model:AMV1000X/S
Connecting components Atmosphere side Plug + PE sheathed cable included BURNDY 30PIN L=1000
Connecting components Atmosphere side Plug + PE sheathed cable included BURNDY 30PIN L=1000
Product code :14501
Model:AMBV1000X/30PI
