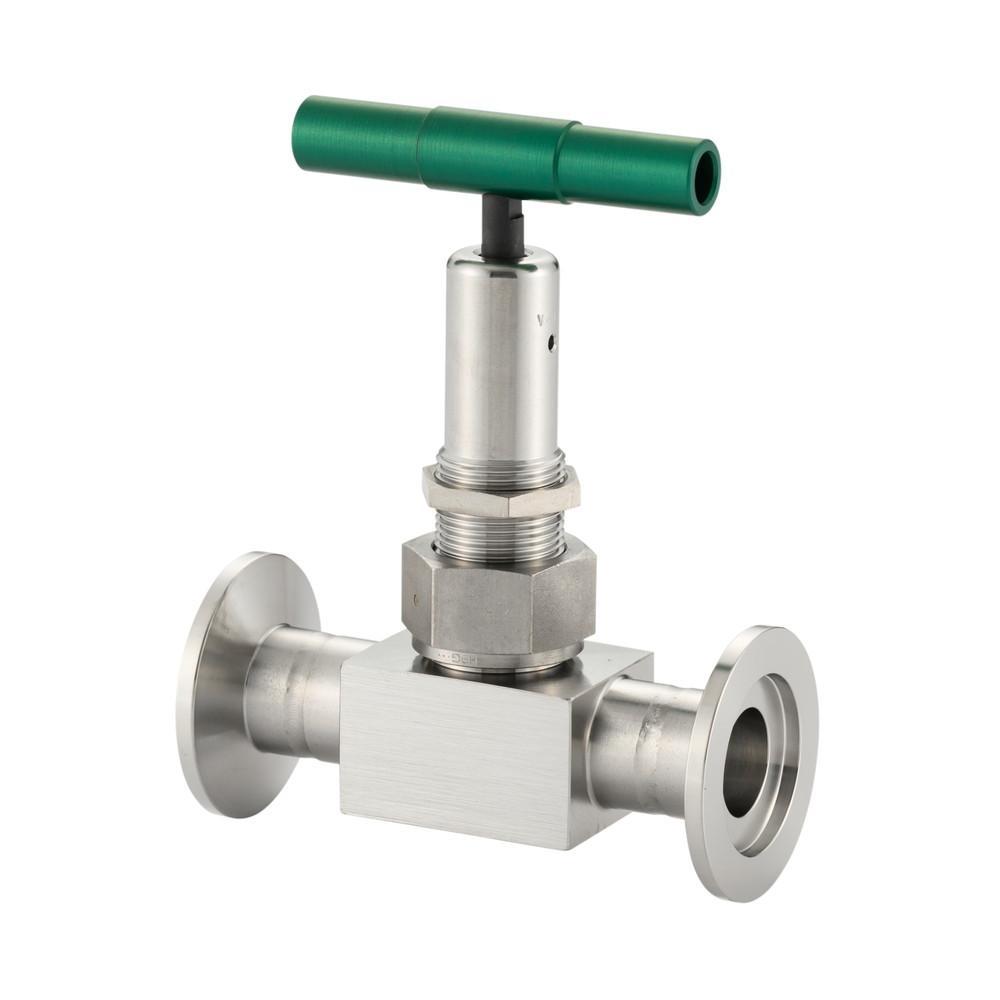

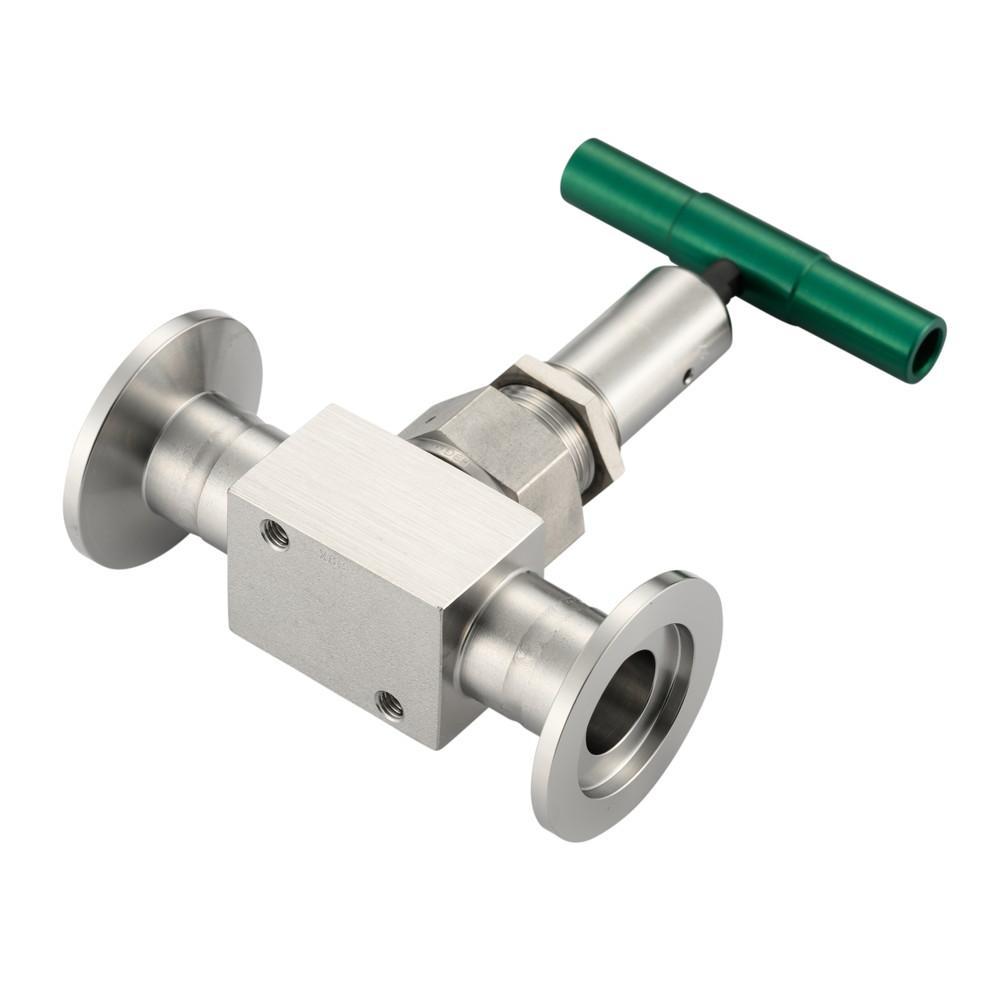

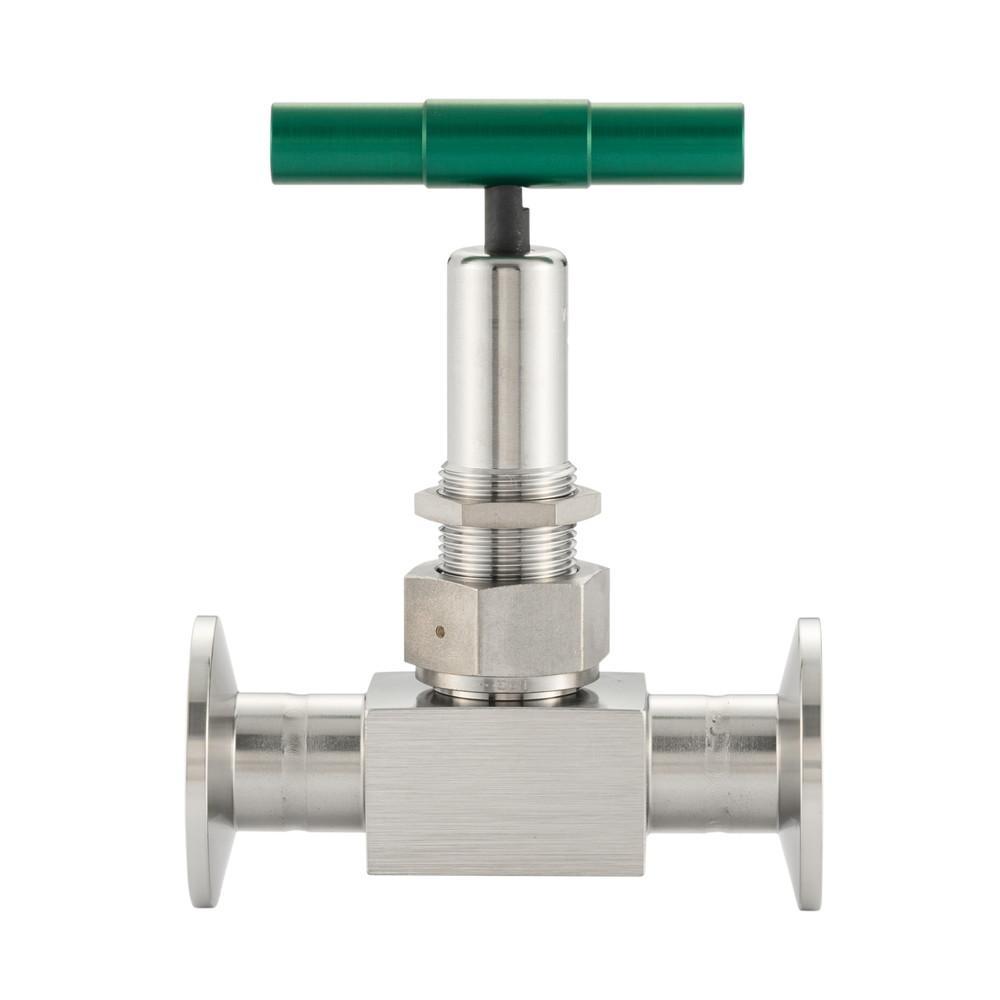

NW25 Manual straight bellows valve

NW25 手動ストレート型ベローズバルブ
NW25 手動ストレート型ベローズバルブ
NW25 手動ストレート型ベローズバルブ

Mouse over the image to enlarge it

NW25 手動ストレート型ベローズバルブ
NW25 手動ストレート型ベローズバルブ
NW25 手動ストレート型ベローズバルブ
share the productshare the product
Facebook
LINE
Twitter
Product code :20667 Model:NW25MSBV

It is a valve to isolate the air and vacuum.
The NW / KF 16, NW / KF 25 we have standardized.
Because it uses a bellows sealing system, it is possible to high confidentiality.
Another of the L-shaped, straight-through are also available.
It also stocks as a standard product leak valve for use with a vacuum destruction.

Basic Information
Flange material SUS 304
body SUS 316
Flexible / bellows SUS 321
handle Aluminum 2024-T4
Maximum temperature 150℃
Available pressure Atmospheric pressure ~ 10
Leak rate <1.3x10-7Pa･㎥/sec
RoHS2 corresponding ○
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 NW/KF ICF A L L1
Stock & Delivery
front.product.price
front.product.tax_included2
20667
NW25MSBV
25 - 40 111～114 84
NW25 手動ストレート型ベローズバルブ admin.label.item.size_image
NW/KF ICF A L L1
25 - 40 111～114 84
NW25 Manual straight bellows valve
Product code :20667    Model:NW25MSBV
