Bellows Valve Type L Manual/Pneumatic
▼Bellows Valve
Used to isolate atmosphere and vacuum.
Bellows seal system enables High performance sealing.
Manual and Pneumatic types are available.
Shape: L type, Y type, Z type
Flow direction can be used as desired.
*Flow rate cannot be adjusted. Only opening and closing can be adjusted.
▼Others
Ball Valve and Butterfly Valves are also available.
We also have leak ports for vacuum breaking.
If you have any questions about our products, please feel free to contact us by clicking the "Contact Us" button.
Precision Cleaning Request.
| Basic Information | |
|---|---|
| Main materials | SUS304(L type), SUS304L(Y,Z ty |
| Flexible / bellows | AM-350 |
| Leakage rate (hood section) | <1.0x10-10Pa･㎥/sec |
| Leak rate (sheet leakage) | <1.0x10-10Pa･㎥/sec |
| RoHS2 corresponding | ○ |
We have 35 type candidate
※ Please click on the product code or model for more information.
front.product.product_code Model |

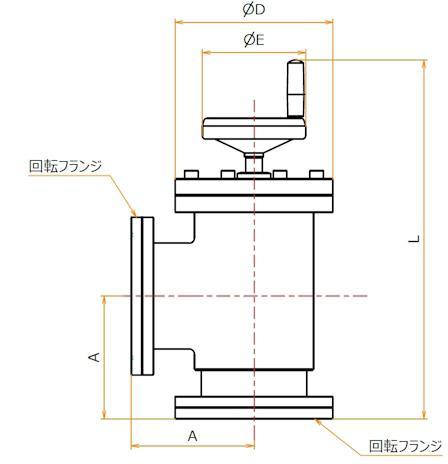

NW/KF | ICF | A | B | C | D | E | L | Conductance [L/S]. | Classification | shape | Bonnet seal | Maximum temperature | Stock & Delivery |
front.product.price front.product.tax_included2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 | - | 40 | - | - | 56.8 | 60 | 122〜141 | 4 | Manual | L type | Viton ® | 150℃ |
stock
63
1-2 Business Days
When out of stock
30 Business Days
|
57,700JPY
(with tax 63,470JPY)
|
|
| 25 | - | 50 | - | - | 57 | 60 | 128.4~148.2 | 12.8 | Manual | L type | Viton ® | 150℃ |
stock
37
1-2 Business Days
waiting for completion
10
Arrival on Jan 24,2025
When out of stock
Answered later
|
39,700JPY
(with tax 43,670JPY)
|
|
| 40 | - | 65 | - | - | 75 | 60 | 167.5~198.5 | 41.8 | Manual | L type | Viton ® | 150℃ |
stock
33
1-2 Business Days
waiting for completion
10
Arrival on Jan 24,2025
When out of stock
Answered later
|
61,700JPY
(with tax 67,870JPY)
|
|
| 50 | - | 70 | - | - | 89 | 60 | 190.5~235.5 | 71.9 | Manual | L type | Viton ® | 150℃ |
stock
3
1-2 Business Days
When out of stock
Answered later
|
79,100JPY
(with tax 87,010JPY)
|
|
| 25 | - | 50 | - | - | 57 | - | 148.8 | 12.8 | Pneumatic (single-acting) | L type | Viton ® | 150℃ |
stock
4
1-2 Business Days
When out of stock
Answered later
|
57,100JPY
(with tax 62,810JPY)
|
|
| 40 | - | 65 | - | - | 76 | - | 199.2 | 41.8 | Pneumatic (single-acting) | L type | Viton ® | 150℃ |
stock
4
1-2 Business Days
When out of stock
Answered later
|
77,100JPY
(with tax 84,810JPY)
|
|
| 50 | - | 70 | - | - | 89 | - | 246 | 71.9 | Pneumatic (single-acting) | L type | Viton ® | 150℃ |
When out of stock
Answered later
|
97,700JPY
(with tax 107,470JPY)
|
|
| 16 | - | 39 | - | - | 48 | - | 115 | - | Pneumatic (double-acting) | L type | Viton ® | 100℃ |
When out of stock
Answered later
|
141,100JPY
(with tax 155,210JPY)
|
|
| 25 | - | 43 | - | - | 48 | - | 119 | - | Pneumatic (double-acting) | L type | Viton ® | 100℃ |
stock
1
1-2 Business Days
When out of stock
Answered later
|
147,100JPY
(with tax 161,810JPY)
|
|
| 40 | - | 50 | - | - | 60 | - | 138 | - | Pneumatic (double-acting) | L type | Viton ® | 100℃ |
When out of stock
Answered later
|
159,100JPY
(with tax 175,010JPY)
|
|
| 50 | - | 70 | - | - | 76 | - | 186 | - | Pneumatic (double-acting) | L type | Viton ® | 100℃ |
When out of stock
Answered later
|
217,100JPY
(with tax 238,810JPY)
|
|
| - | 34 | 38 | - | - | 57.2 | 60 | 120～139 | 4 | Manual | L type | Viton ® | 150℃ |
stock
7
1-2 Business Days
When out of stock
30 Business Days
|
71,100JPY
(with tax 78,210JPY)
|
|
| - | 70 | 63 | - | - | 76.2 | 60 | 161～201 | 26 | Manual | L type | Viton ® | 150℃ |
waiting for completion
10
Arrival on Jan 23,2025
When out of stock
30 Business Days
|
90,700JPY
(with tax 99,770JPY)
|
|
| - | 114 | 105 | - | - | 101.6 | 60 | 227～268 | 29 | Manual | L type | Viton ® | 150℃ |
stock
3
1-2 Business Days
When out of stock
30 Business Days
|
171,100JPY
(with tax 188,210JPY)
|
|
| - | 152 | - | - | - | - | - | - | - | Manual | L type | - | - |
When out of stock
Answered later
|
277,100JPY
(with tax 304,810JPY)
|
|
| - | 34 | - | - | - | - | - | - | - | Pneumatic (single-acting) | L type | - | - |
When out of stock
Answered later
|
Separate estimate
|
|
| - | 70 | - | - | - | - | - | - | - | Pneumatic (single-acting) | L type | - | - |
When out of stock
Answered later
|
Separate estimate
|
|
| - | 114 | - | - | - | - | - | - | - | Pneumatic (single-acting) | L type | - | - |
When out of stock
Answered later
|
Separate estimate
|
|
| - | 152 | - | - | - | - | - | - | - | Pneumatic (single-acting) | L type | - | - |
When out of stock
Answered later
|
347,100JPY
(with tax 381,810JPY)
|
|
| 16 | - | 102 | - | - | 60 | 60.6 | 100~110 | - | Manual | Y type | Viton ® | 200℃ |
When out of stock
Answered later
|
57,100JPY
(with tax 62,810JPY)
|
|
| 25 | - | 107 | - | - | 60 | 60.6 | 97~107 | - | Manual | Y type | Viton ® | 200℃ |
When out of stock
Answered later
|
59,100JPY
(with tax 65,010JPY)
|
|
| 40 | - | 130 | - | - | 60 | 76.5 | 117~134 | - | Manual | Y type | Viton ® | 200℃ |
When out of stock
Answered later
|
71,100JPY
(with tax 78,210JPY)
|
|
| 50 | - | 177.8 | - | - | 60 | 85 | 143~167 | - | Manual | Y type | Viton ® | 200℃ |
When out of stock
Answered later
|
97,100JPY
(with tax 106,810JPY)
|
|
| 16 | - | 80 | - | - | - | - | 93 | - | Pneumatic (double-acting) | Y type | Viton ® | 100℃ |
When out of stock
Answered later
|
157,100JPY
(with tax 172,810JPY)
|
|
| 25 | - | 100 | - | - | - | - | 105 | - | Pneumatic (double-acting) | Y type | Viton ® | 100℃ |
stock
1
1-2 Business Days
When out of stock
Answered later
|
171,100JPY
(with tax 188,210JPY)
|
|
| 40 | - | 130 | - | - | - | - | 112 | - | Pneumatic (double-acting) | Y type | Viton ® | 100℃ |
When out of stock
Answered later
|
191,100JPY
(with tax 210,210JPY)
|
|
| 50 | - | 160 | - | - | - | - | 134 | - | Pneumatic (double-acting) | Y type | Viton ® | 100℃ |
When out of stock
Answered later
|
271,100JPY
(with tax 298,210JPY)
|
|
| - | 34 | 119 | - | - | 60 | 70 | 100~110 | - | Manual | Y type | oxygen-free copper | 200℃ |
When out of stock
Answered later
|
71,100JPY
(with tax 78,210JPY)
|
|
| - | 70 | 133 | - | - | 60 | 86 | 117~134 | - | Manual | Y type | oxygen-free copper | 200℃ |
stock
1
1-2 Business Days
When out of stock
Answered later
|
90,700JPY
(with tax 99,770JPY)
|
|
| 16 | - | 54.6 | 28.5 | 47.4 | 60 | 60.6 | 132~146 | - | Manual | Z type | Viton ® | 200℃ |
When out of stock
Answered later
|
57,100JPY
(with tax 62,810JPY)
|
|
| 25 | - | 51.6 | 34.8 | 53.7 | 60 | 60.6 | 134~148 | - | Manual | Z type | Viton ® | 200℃ |
waiting for completion
2
Arrival on Mar 05,2025
When out of stock
Answered later
|
59,100JPY
(with tax 65,010JPY)
|
|
| 40 | - | 61 | 47.8 | 73.6 | 60 | 76.5 | 164~189 | - | Manual | Z type | Viton ® | 200℃ |
When out of stock
Answered later
|
71,100JPY
(with tax 78,210JPY)
|
|
| 50 | - | 86.4 | 66.6 | 104.7 | 60 | 84.6 | 209~243 | - | Manual | Z type | Viton ® | 200℃ |
When out of stock
Answered later
|
97,100JPY
(with tax 106,810JPY)
|
|
| - | 34 | 55.2 | 28.5 | 47 | 60 | 60.6 | 132~146 | - | Manual | Z type | Viton ® | 200℃ |
When out of stock
Answered later
|
71,100JPY
(with tax 78,210JPY)
|
|
| - | 70 | 62.5 | 47.8 | 73.6 | 60 | 76.5 | 164~189 | - | Manual | Z type | Viton ® | 200℃ |
stock
1
1-2 Business Days
When out of stock
Answered later
|
90,700JPY
(with tax 99,770JPY)
|
| NW/KF | ICF | A | B | C | D | E | L | Conductance [L/S]. | Classification | shape | Bonnet seal | Maximum temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
【手動】
開閉時、ノブを回しすぎると壊れる可能性があります。以下に注意いただきご使用ください。
開ける際：ハンドルが少し重たくなってきたらそれ以上は回さないでください。 プレートがL型の横のパイプ径の半分まで到達していれば、それ以上回して開けても、コンダクタンスは変わません。
閉める際：ノブを回してノブが止まったらそれ以上は閉めないようにしてください。 内部でOリング付きのプレートが弁座に接触すれば、大気圧と差で十分にシールされます。
手動
- ハンドルによる簡単操作
- 開閉：ハンドルがバルブと平行のときにオープン
- ※故障の原因となりますので開けすぎ、締めすぎにご注意ください
圧空 単作動
- 開閉：エア供給時＝オープン、ばね＝クローズ
- 空圧：NW25＝0.4MPa、NW40，50＝0.3MPa
- ※4-6.5kgf/cm2(0.65MPa程度)のボンベが使用可能です
- ※エア導入用のソレノイドバルブはお客様の方でご用意ください
圧空 複作動
- 操作空圧：0.4～0.7MPa（G)
- 挿入口：Rc1/8
複作動のバルブにはセンサーは標準で2個ついています。
【メーカー名：TAIYO】
| 表示灯 | 発光ダイオード（ON時点灯） |
| 最大使用電圧 | AC100V, DC50V |
| 使用電流範囲 | AC3-20mA, DC3-40mA |
| 最大接点容量 | AC2.0VA, DC1.5VA |
| コード長さ | 1.5m |
