  1. Cosmotec for Vacuum Components
  2. Feedthrough
  3. Multi-pin
  4. BURNDY (Bionet locking type)
  5. BURNDY 10A corresponding
  6. Feedthrough multi-pin BURNDY® high current type Gu

Feedthrough multi-pin BURNDY® high current type Gu

Feedthrough multi-pin BURNDY® high current type Gu

▼BURNDY High current type
Mates with bayonet-locking plugs
Single-ended round multi-pin terminals for measurement and control
500V 10A (per pin)/38A (all 19 pins)
Easy connection by simply inserting along the guide groove even in difficult-to-see locations
In addition to vacuum/atmosphere side connection parts and tools, we also offer pre-assembled products and assembly services.

▼ The following types are standardized (List)
Number of PINs: 4, 8, 12, 19, 22, 30, 48
Flange: NW/KF, ICF, JIS-VF, JIS-VG
Standard (3A) type is available from here.

▼ Custom-made products are also available.
We also accept multiple terminal combinations, flange size changes, and mounting on special flanges.
Please contact us by clicking the "Inquiry" button on the right side of the page.

For precision cleaning requests, please click here.

see next
Basic Information
The number of electrode 19
type High current
Electric current / 1 pc. 10 A
Total current/1 terminal 38 A
Withstand voltage: DC 500 V
Insulation resistance value 10⁹ ohm
frequency 10 MHz
Connection type BURNDY
electrode Alumel ®
Flange material SUS 304
sleeve Kovar ®
Insulator Alumina ceramic
Maximum temperature 450℃
The lowest temperature -196℃
Leak rate <1.3x10-10Pa･㎥/sec
RoHS2 corresponding ○
Inquiry for this subcategory

We have 22 type candidate

※ Please click on the product code or model for more information.

front.product.product_code
Model

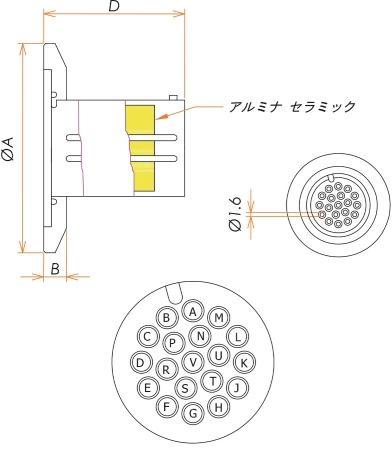

 NW/KF ICF VF VG A B D The contents of goods
Stock & Delivery
front.product.price
front.product.tax_included2
14617
N25MB191ALG
25 - - - 40 6 39 Only flanged terminal
stock
4 1-2 Business Days
When out of stock
Answered later
139,000JPY (with tax 152,900JPY)
16375
N25MB191ALGUT1A
25 - - - 40 6 39 Assembled set
stock
4 1-2 Business Days
When out of stock
Answered later
193,900JPY (with tax 213,290JPY)
14618
N40MB191ALG
40 - - - 55 6 39 Only flanged terminal
stock
2 1-2 Business Days
When out of stock
Answered later
139,300JPY (with tax 153,230JPY)
16376
N40MB191ALGUT1A
40 - - - 55 6 39 Assembled set
stock
2 1-2 Business Days
When out of stock
Answered later
194,200JPY (with tax 213,620JPY)
14619
C70MB191ALG
- 70 - - 70 12 45 Only flanged terminal
stock
1 1-2 Business Days
When out of stock
Answered later
140,400JPY (with tax 154,440JPY)
16378
C70MB191ALGUT1A
- 70 - - 70 12 45 Assembled set
stock
1 1-2 Business Days
When out of stock
Answered later
195,300JPY (with tax 214,830JPY)
40451
F20MB191ALGA
- - 20 - 80 8 45 Only flanged terminal
When out of stock
Answered later
170,500JPY (with tax 187,550JPY)
40452
F20MB191ALGUT1B
- - 20 - 80 8 45 Assembled set
When out of stock
Answered later
225,400JPY (with tax 247,940JPY)
40453
F25MB191ALGA
- - 25 - 90 8 45 Only flanged terminal
When out of stock
Answered later
170,800JPY (with tax 187,880JPY)
40454
F25MB191ALGUT1B
- - 25 - 90 8 45 Assembled set
When out of stock
Answered later
225,700JPY (with tax 248,270JPY)
40455
F40MB191ALGA
- - 40 - 105 10 47 Only flanged terminal
When out of stock
Answered later
171,400JPY (with tax 188,540JPY)
40456
F40MB191ALGUT1B
- - 40 - 105 10 47 Assembled set
When out of stock
Answered later
226,300JPY (with tax 248,930JPY)
40457
F50MB191ALGA
- - 50 - 120 10 47 Only flanged terminal
When out of stock
Answered later
172,000JPY (with tax 189,200JPY)
40458
F50MB191ALGUT1B
- - 50 - 120 10 47 Assembled set
When out of stock
Answered later
226,900JPY (with tax 249,590JPY)
15980
G20MB191ALG
- - - 20 80 8 42 Only flanged terminal
stock
1 1-2 Business Days
When out of stock
Answered later
170,500JPY (with tax 187,550JPY)
16877
G20MB191ALGUT1A
- - - 20 80 8 42 Assembled set
stock
1 1-2 Business Days
When out of stock
Answered later
225,400JPY (with tax 247,940JPY)
40461
G25MB191ALGA
- - - 25 90 8 45 Only flanged terminal
When out of stock
Answered later
170,800JPY (with tax 187,880JPY)
40462
G25MB191ALGUT1B
- - - 25 90 8 45 Assembled set
When out of stock
Answered later
225,700JPY (with tax 248,270JPY)
40463
G40MB191ALGA
- - - 40 105 10 47 Only flanged terminal
When out of stock
Answered later
171,400JPY (with tax 188,540JPY)
40464
G40MB191ALGUT1B
- - - 40 105 10 47 Assembled set
When out of stock
Answered later
226,300JPY (with tax 248,930JPY)
40465
G50MB191ALGA
- - - 50 120 10 47 Only flanged terminal
When out of stock
Answered later
172,000JPY (with tax 189,200JPY)
40466
G50MB191ALGUT1B
- - - 50 120 10 47 Assembled set
When out of stock
Answered later
226,900JPY (with tax 249,590JPY)
NW/KF ICF VF VG A B D The contents of goods
To detail page Contact Us

Filter by model

stock status

Flange

The contents of goods

フィードスルー 多ピン BURNDY® 高電流タイプ ガイド付き 19PIN admin.label.item.catalog_image
製品 製品コード 型式 数量
フランジ付き端子 ○○○○○ ***MB191ALG 1個
真空側PEEKインサート 16322 VSPI19GA 1個
大気側プラグ 10007 ASP19 1個
ソケットコンタクト 10147 SVC16 10本/4組

フランジ付き端子の○○○○○は5桁コード、***はフランジ規格が入ります
NW16 → N16
NW25 → N25
NW40 → N40
ICF34 → C34
ICF70 → C70
Burndyタイプのアセンブリ方法は以下の画像をクリックしてください。
Burndyタイプ_アセンブリ方法
圧着工具の取扱い方法は以下の画像をクリックしてください。 圧着工具の取り扱い方法
Connection parts
Connection parts crimp type 10 pieces for socket contact φ1.6
Connection parts crimp type 10 pieces for socket contact φ1.6
Product code :10147
Model:SVC16
7,100JPY (with tax 7,810JPY)
Connection piece vacuum side PEEK® insulating insert BURNDY® 19 for PIN
Connection piece vacuum side PEEK® insulating insert BURNDY® 19 for PIN
Product code :16322
Model:VSPI19GA
16,900JPY (with tax 18,590JPY)
Connection parts atmosphere side plug BURNDY 19 for PIN
Connection parts atmosphere side plug BURNDY 19 for PIN
Product code :10007
Model:ASP19
9,600JPY (with tax 10,560JPY)
EXTRACTION TOOL for Φ1.6
EXTRACTION TOOL for Φ1.6
Product code :14914
Model:EXT16
14,700JPY (with tax 16,170JPY)
Crimp Tool AWG #12 - #28
Crimp Tool AWG #12 - #28
Product code :10052
Model:CT2313
142,300JPY (with tax 156,530JPY)
Connection parts Vacuum side Polyimide sheathed cable AWG#22 for multi-pin L=1000
Connection parts Vacuum side Polyimide sheathed cable AWG#22 for multi-pin L=1000
Product code :17840
Model:VMK1000/XXA
2,700JPY (with tax 2,970JPY)
Connecting parts Vacuum side PEEK® sheathed cable AWG#20 for multiple pins L=1000
Connecting parts Vacuum side PEEK® sheathed cable AWG#20 for multiple pins L=1000
Product code :14487
Model:VMP1000/XX
2,200JPY (with tax 2,420JPY)
Connection part Vacuum side Socket contact with polyimide sheathed cable L=1000
Connection part Vacuum side Socket contact with polyimide sheathed cable L=1000
Product code :18473
Model:VMK1000X/SA
7,500JPY (with tax 8,250JPY)
Connecting parts Vacuum side Insert + Polyimide sheathed cable included BURNDY®19PIN L=1000
Connecting parts Vacuum side Insert + Polyimide sheathed cable included BURNDY®19PIN L=1000
Product code :18433
Model:VMBK1KX/19PIGB
164,000JPY (with tax 180,400JPY)
Connection parts Atmosphere side Polyethylene sheathed cable AWG#20 for multi-pin L=1000
Connection parts Atmosphere side Polyethylene sheathed cable AWG#20 for multi-pin L=1000
Product code :14484
Model:AMV1000/XX
300JPY (with tax 330JPY)
Connection parts Atmosphere side Socket contact with polyethylene sheathed cable L=1000
Connection parts Atmosphere side Socket contact with polyethylene sheathed cable L=1000
Product code :14108
Model:AMV1000X/S
1,600JPY (with tax 1,760JPY)
Connecting components Atmosphere side Plug + PE sheathed cable included BURNDY 19PIN L=1000
Connecting components Atmosphere side Plug + PE sheathed cable included BURNDY 19PIN L=1000
Product code :14499
Model:AMBV1000X/19PI
44,600JPY (with tax 49,060JPY)
