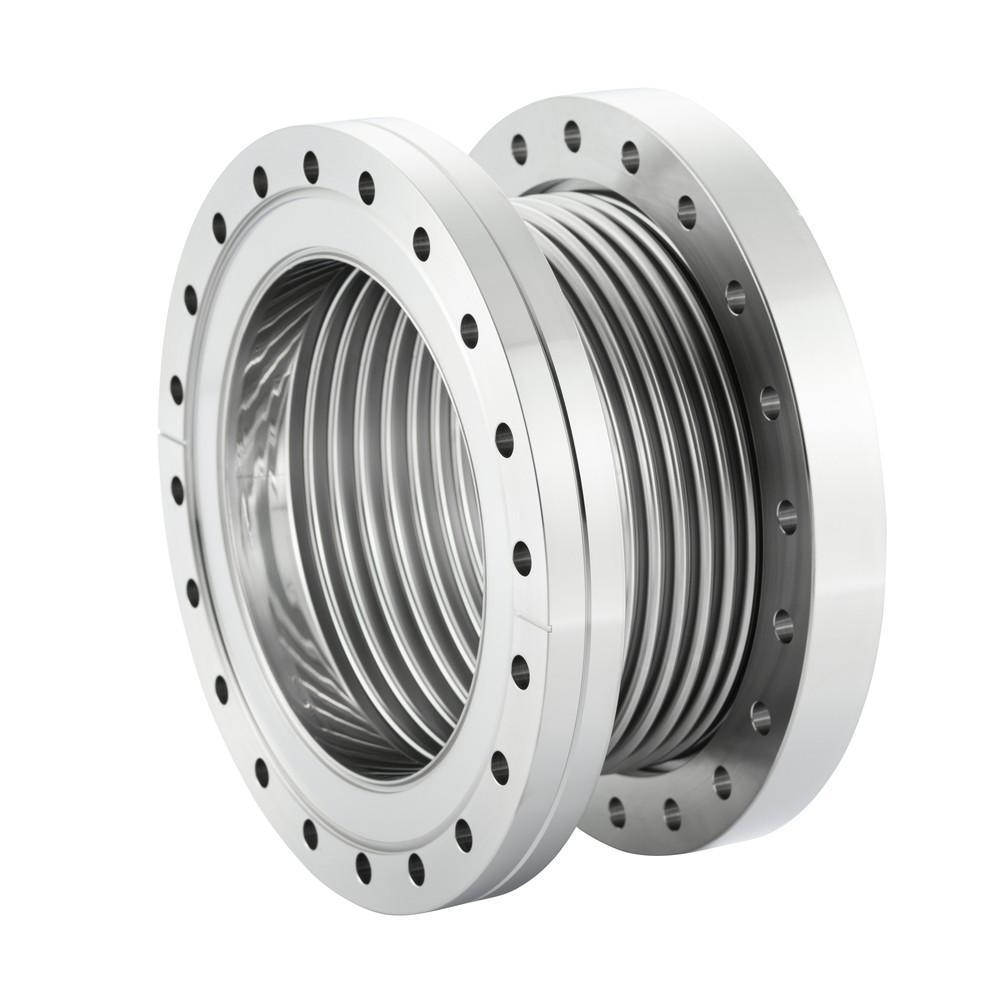

ICF203 Formed Bellows one side rotation L=115

Mouse over the image to enlarge it

share the productshare the product

Product code :20899 Model:ICF203FB115

▼ICF formed bellows
Used for longitudinal dimensional adjustment of piping and for vibration absorption.
It cannot be bent in the short direction.
Standard Specifications: Inner: Vacuum, Outer: Atmosphere
Temperature: up to 250°C
Life time: 10,000 cycles
Flange sizes (ICF): 34, 70, 114, 152, 203

▼The following types are standardized (List)
Flange: Pipe end, ICF, NW/KF, JIS-VF, JIS-VG
Material: SUS, Teflon (NW only)
*Flexible tubes are here.

▼Others
Short and long flanges for welding (list), tees and crosses various types of piping are also available in various sizes.
We can also change lengths, fittings, and flange sizes. Please contact us by clicking the "Inquiry" button on the right side of the page.

For precision cleaning requests, click here.

Basic Information
Flange material	SUS 304
Flexible / bellows	SUS 316L
life cycle	10000 cycle
RoHS2 corresponding	○

177,700 JPY (with tax 195,470JPY)

stock: 1; 1-2 Business Days

When out of stock: 30 Business Days

Quantity

Inquiry for this product

RoHS2 Download

share the productshare the product

front.product.product_code Model	ICF	A	C	D	L	T	Bellows plate thickness	Operating range	Spring constant (N / mm)	Stock & Delivery	front.product.price front.product.tax_included2
20899 ICF203FB115	203	203	153	134	115	22	0.15	101-129	9.8	stock 1 1-2 Business Days When out of stock 30 Business Days	177,700JPY (with tax 195,470JPY)

ICF	A	C	D	L	T	Bellows plate thickness	Operating range	Spring constant (N / mm)
203	203	153	134	115	22	0.15	101-129	9.8
