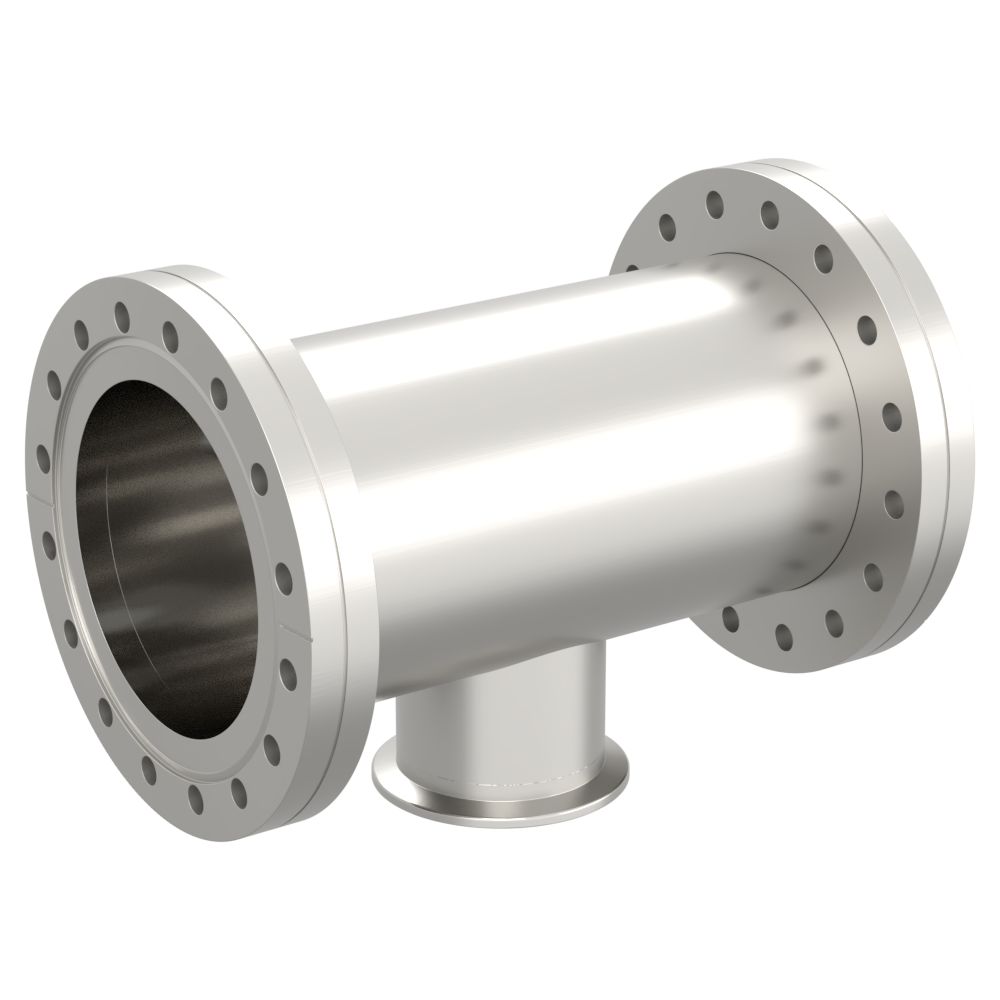

ICF152 one side rotation / NW50 standard conversion tee

ICF152片側回転/NW50規格変換ティー

Mouse over the image to enlarge it

ICF152片側回転/NW50規格変換ティー
share the productshare the product
Product code :25392 Model:ICF152/NW50EXTE

NW / KF, ICF, JIS VF / VG standards, tube end, various types of general-purpose joint end (Swagelok®, VCR®, tapered screw) stocks conversion adapter of various standards such as the type as a standard product.
Quickly it can also be accommodated with respect to special order items such as conversion and change of the tube size of the catalog with no standard.

Basic Information
Flange material SUS 304
The inner surface processing Buff 400 (equivalent to Ra 1.0
RoHS2 corresponding
Inquiry for this product
share the productshare the product
front.product.product_code
Model
ICF NW/KF A B C D C1 D1 L1 L2
Stock & Delivery
front.product.price
front.product.tax_included2
152 50 152 75 101.6 97.6 60.5 55 90 110
ICF152片側回転/NW50規格変換ティー admin.label.item.size_image
ICF NW/KF A B C D C1 D1 L1 L2
152 50 152 75 101.6 97.6 60.5 55 90 110
Product code :25392    Model:ICF152/NW50EXTE

Filter by model

フランジ

ICF152片側回転/NW50規格変換ティー admin.label.item.catalog_image
