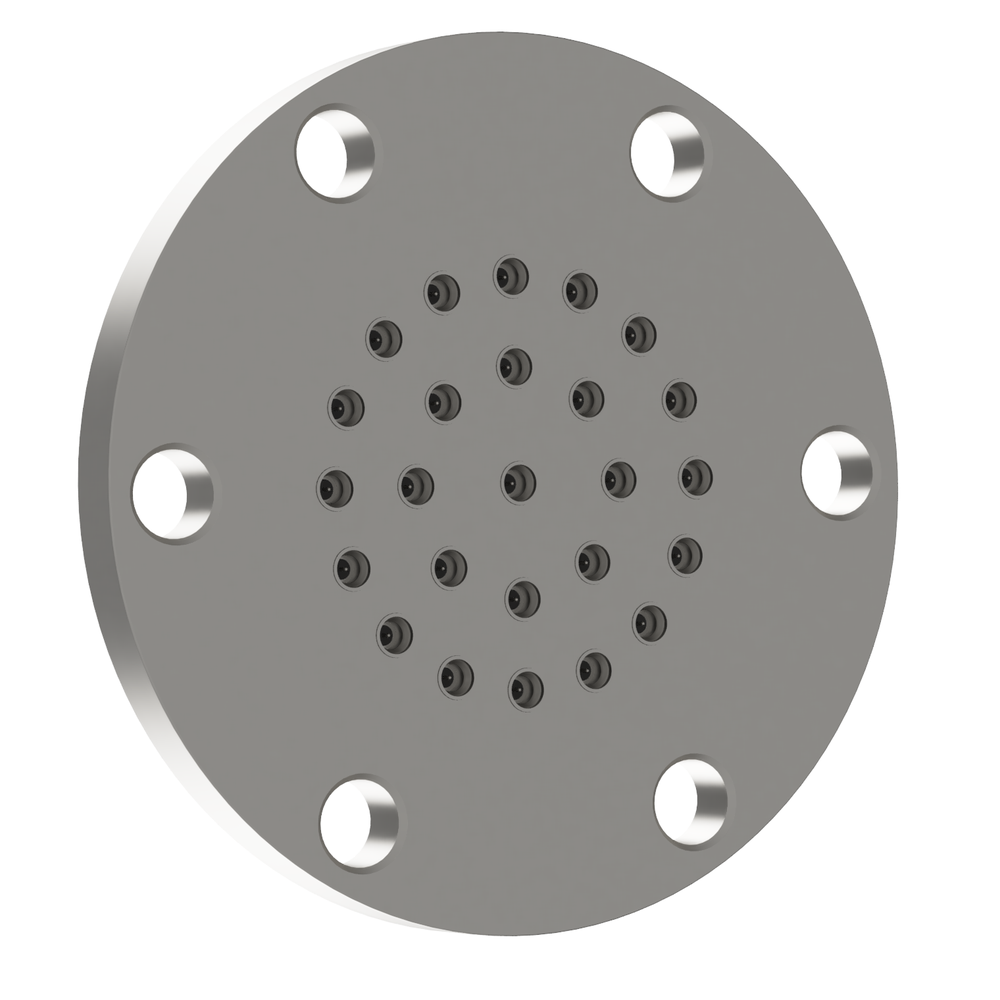

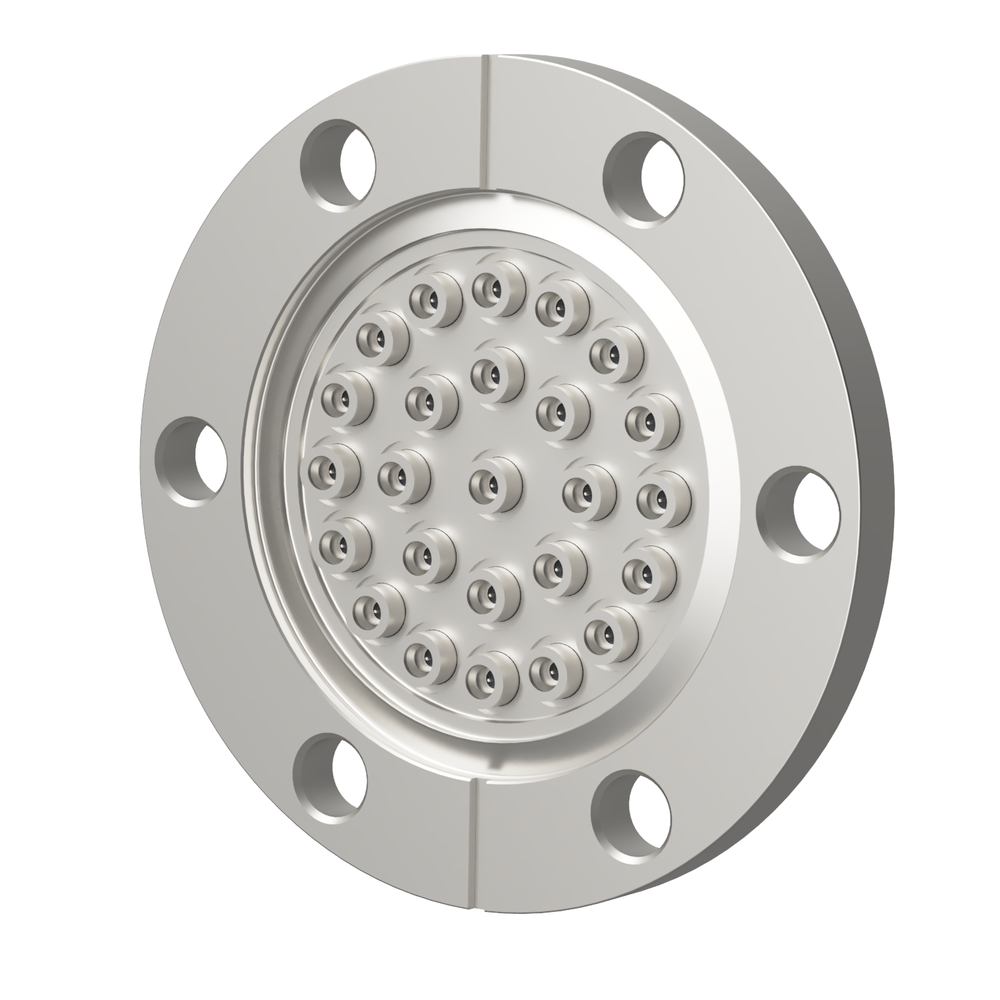

ICF70 flange with 25 coaxial SMPM
Product code :41539
Model:C70SMPM25
| Basic Information | |
|---|---|
| Withstand voltage: DC | 500 V |
| Electric current / 1 pc. | Milli |
| frequency | 65 GHz |
| Maximum temperature | 165℃ |
| The lowest temperature | -55℃ |
| Impedance | 50 Ω |
| Insulation resistance value | 10⁹ ohm |
front.product.product_code Model |
Panel mount | ICF | The number of electrode | Stock & Delivery |
front.product.price front.product.tax_included2 |
|---|---|---|---|---|---|
| - | 70 | 25 | |||
| Panel mount | ICF | The number of electrode |
|---|---|---|
| - | 70 | 25 |
Product code :41539
Model:C70SMPM25
Filter by model
フランジ
電極数
RoHS2 Download
Download the RoHS2 compliance report for the following products.
ICF70 flange with 25 coaxial SMPM
Model:C70SMPM25
Product code:41539
