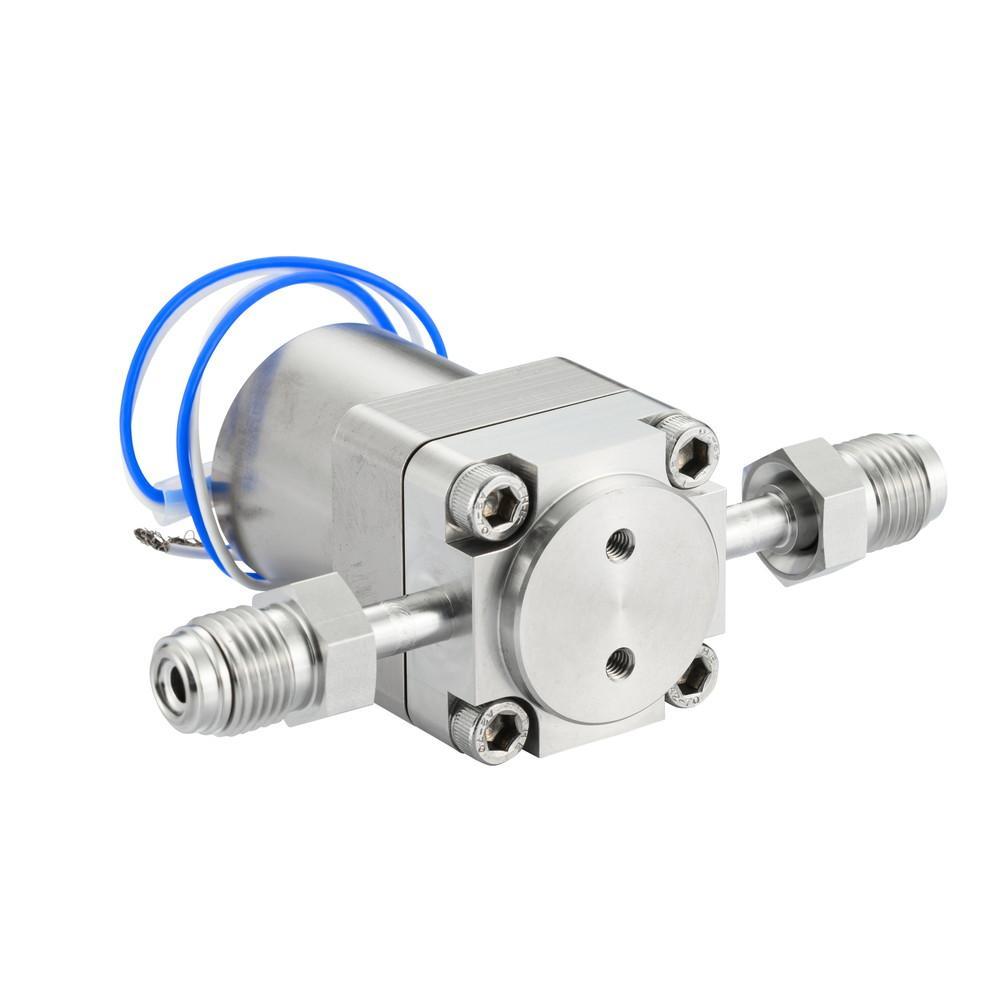

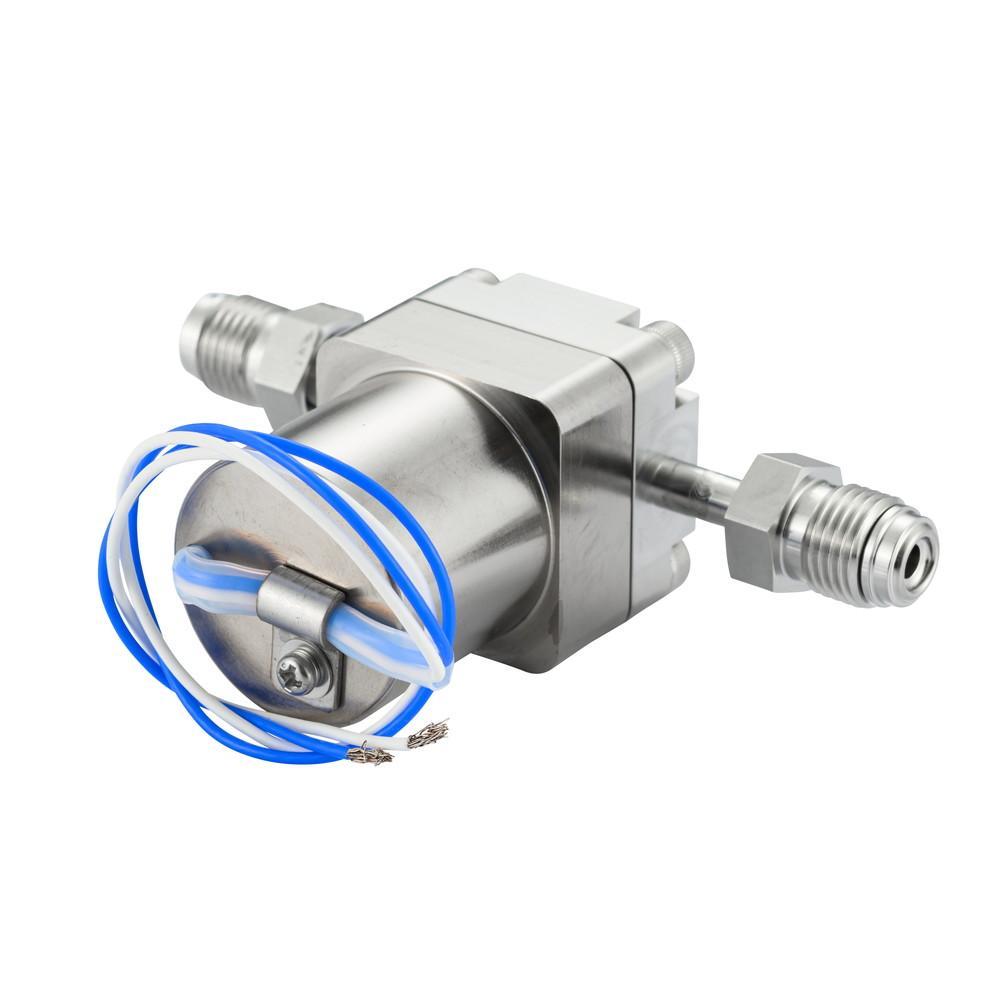

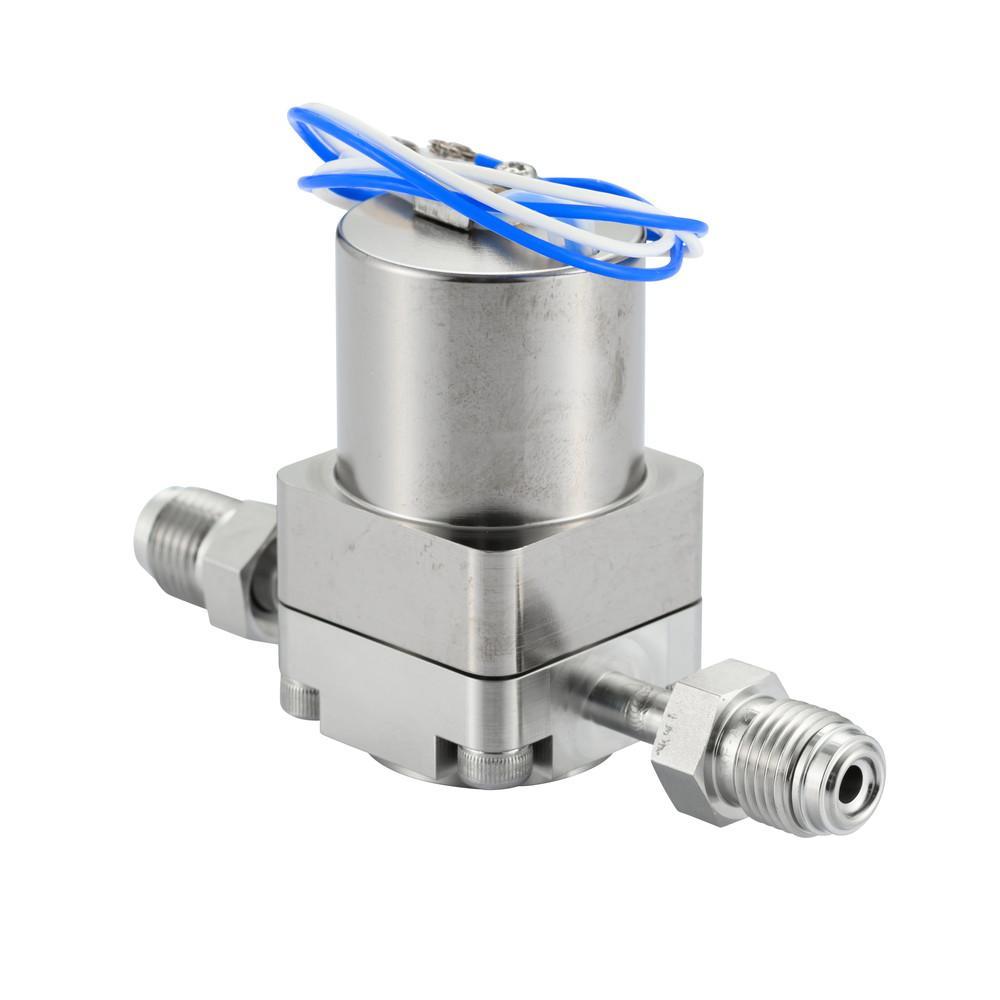

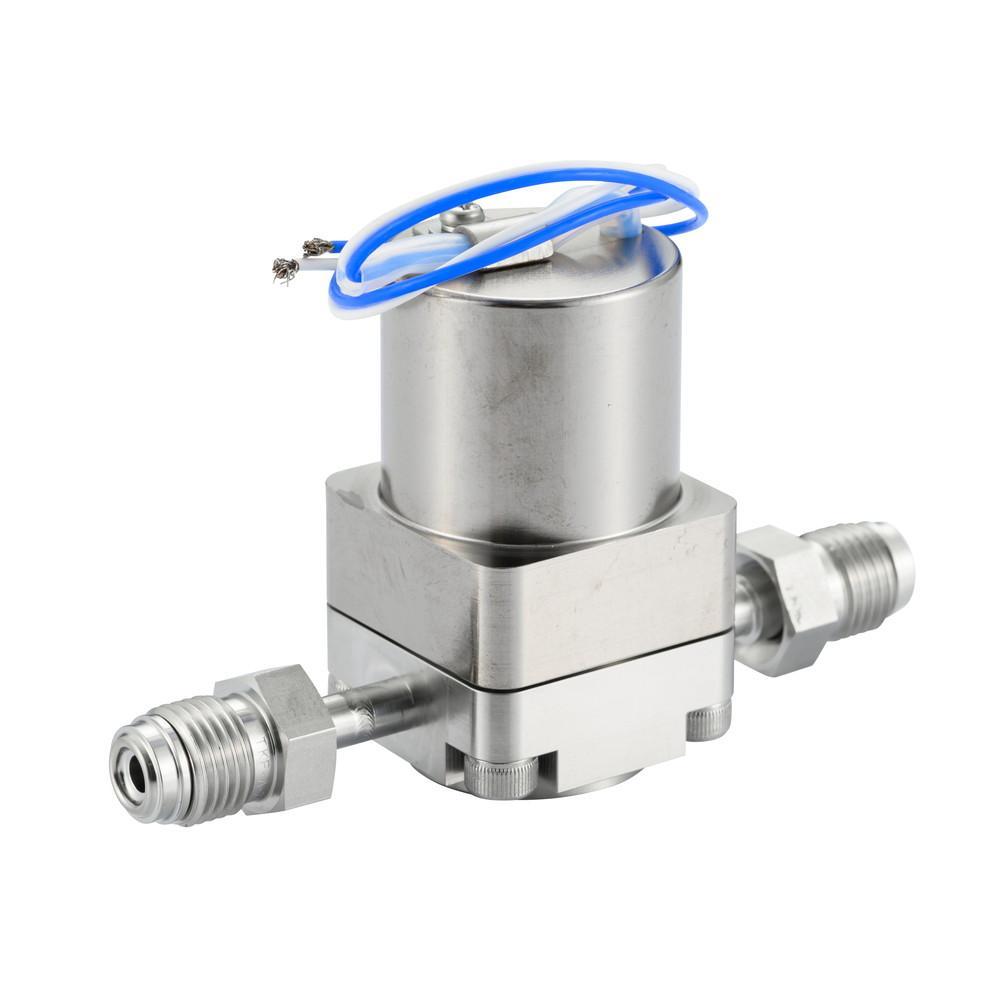

Solenoid Valve Straight Type Both Ends VCR Male 1/4

ソレノイドバルブ　ストレート型両端VCRおす1/4

Mouse over the image to enlarge it

ソレノイドバルブ　ストレート型両端VCRおす1/4
share the productshare the product
Facebook
LINE
Twitter
Product code :27948 Model:SVS1/4MVCR

▼Solenoid Valves
Shape: L type, straight type

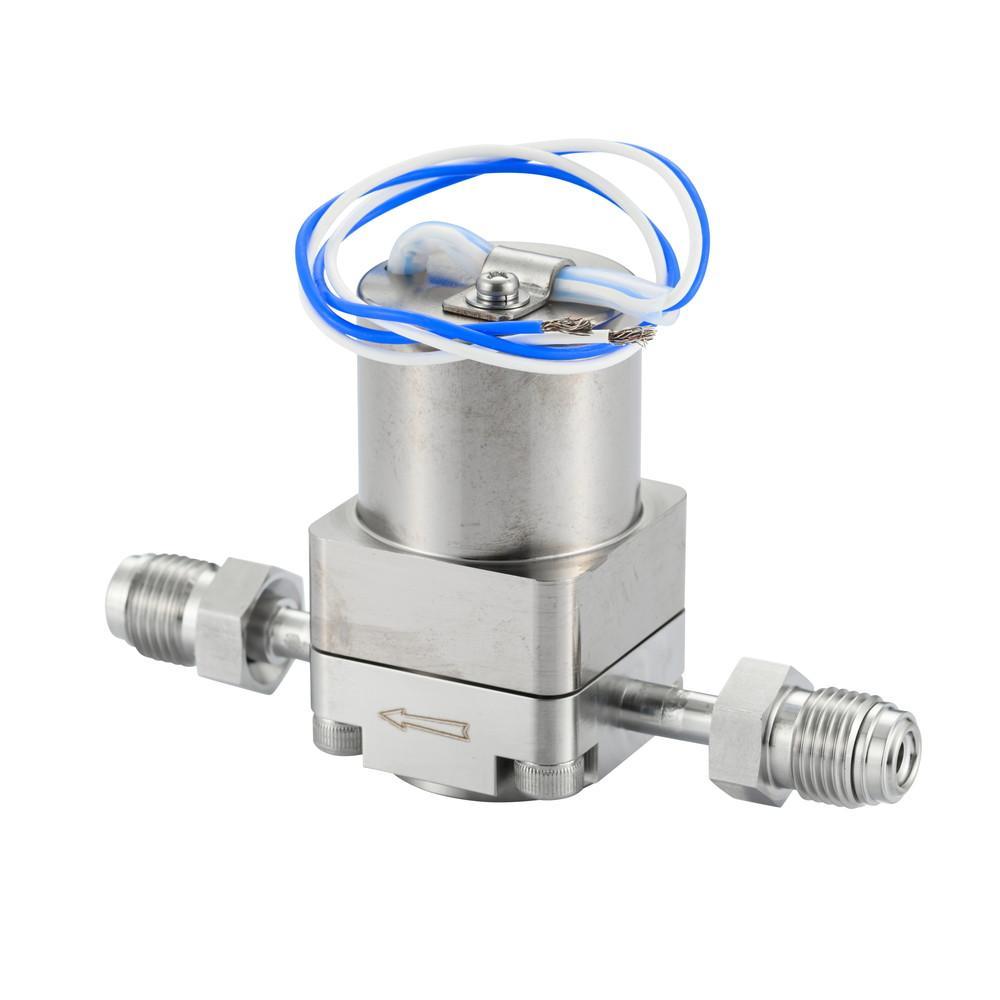

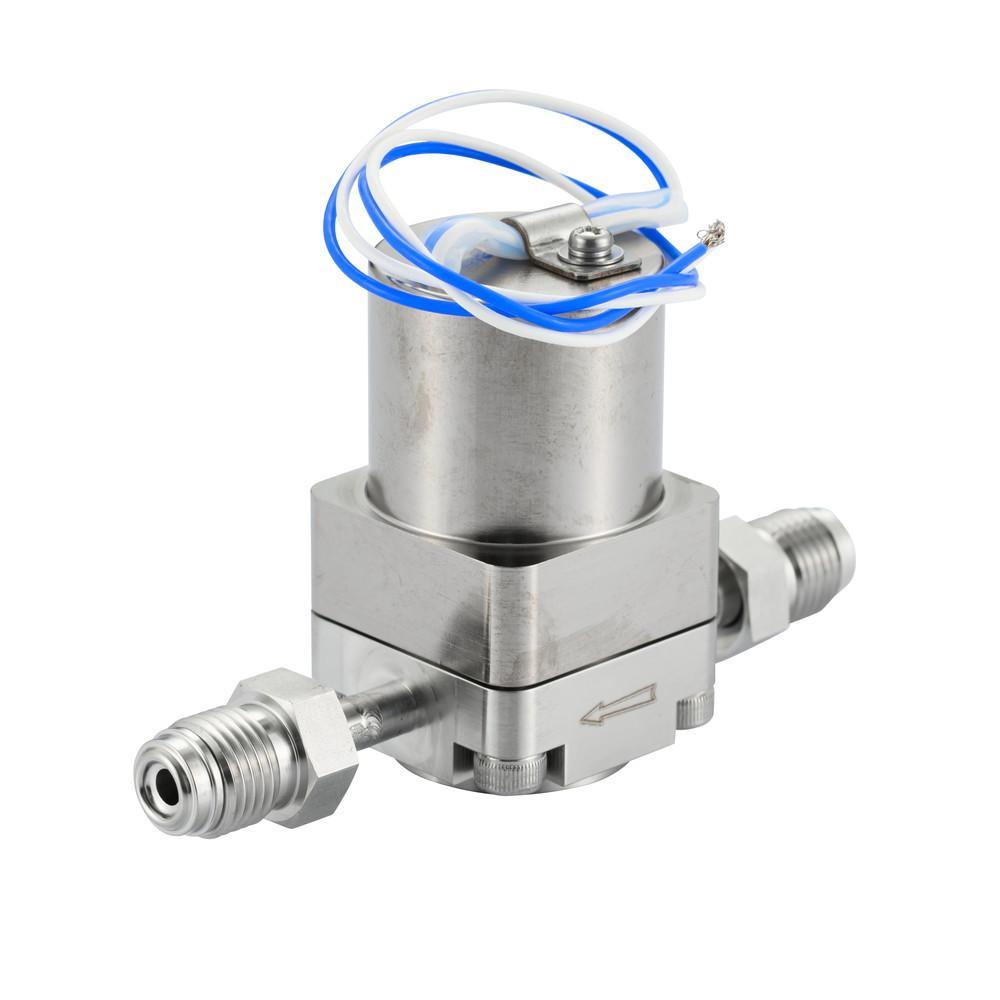

Flow direction：Refer to the arrows on the side
VCR® fitting connection
Orifice diameter: Φ3

▼ Features
Solenoid valve for high vacuum with a unique self-retaining mechanism.
Valve opens when constant current is applied and remains open even when current is cut off
Pulse power supply: 24V DC
Input power supply: 3.5A
Input time (pulse): 0.2 to 1 second
Opening/closing action: Switching voltage polarity

▼Others
If you have any questions about our products, please feel free to contact us from the "Inquiry" button.

For precision cleaning requests, please click here.

Basic Information
Maximum temperature 60℃
The lowest temperature 5℃
Available pressure Vacuum～0.9MPa(G)
Orifice diameter Φ3mm
Available gases Air and inert gas
197,100 JPY (with tax 216,810JPY)
When out of stock
Answered later
Inquiry for this product
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 Joint standard shape Tube / Fitting Size
Stock & Delivery
front.product.price
front.product.tax_included2
27948
SVS1/4MVCR
VCR® M Staight 1/4 inch
When out of stock
Answered later
197,100JPY (with tax 216,810JPY)
ソレノイドバルブ　ストレート型両端VCRおす1/4 admin.label.item.size_image
Joint standard shape Tube / Fitting Size
VCR® M Staight 1/4 inch
Solenoid Valve Straight Type Both Ends VCR Male 1/4
Product code :27948    Model:SVS1/4MVCR
197,100JPY (with tax 216,810JPY)
Contact Us

Filter by model

チューブ/継手サイズ

継手規格

形状

ソレノイドバルブ　ストレート型両端VCRおす1/4 admin.label.item.catalog_image
パルス電源：DC24V
投入電源：3.5A
投入時間：パルス0.2-1秒（コイル温度の上昇抑制）
開・閉：極性を入れ替える（+24/-24）

Heリークテスト・弁座漏れ試験
外部許容リーク量：10x10-10Pa・㎥/sec以下
弁座許容リーク量：10x10-9Pa・㎥/sec以下
