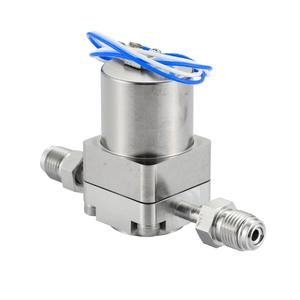

Solenoid valve

Solenoid valve

▼Solenoid Valves
Shape: L type, straight type
Flow direction：Refer to the arrows on the side
VCR® fitting connection
Orifice diameter: Φ3

▼ Features
Solenoid valve for high vacuum with a unique self-retaining mechanism.
Valve opens when constant current is applied and remains open even when current is cut off
Pulse power supply: 24V DC
Input power supply: 3.5A
Input time (pulse): 0.2 to 1 second
Opening/closing action: Switching voltage polarity

▼Others
If you have any questions about our products, please feel free to contact us from the "Inquiry" button.

For precision cleaning requests, please click here.

see next
Basic Information
Maximum temperature 60℃
The lowest temperature 5℃
Available pressure Vacuum～0.9MPa(G)
Orifice diameter Φ3mm
Available gases Air and inert gas
Inquiry for this subcategory

We have 4 type candidate

※ Please click on the product code or model for more information.

front.product.product_code
Model
 Joint standard shape Tube / Fitting Size
Stock & Delivery
front.product.price
front.product.tax_included2
27941
SVL1/4FVCR
VCR® F L type 1/4 inch
When out of stock
Answered later
197,700JPY (with tax 217,470JPY)
27946
SVS1/4FVCR
VCR® F Staight 1/4 inch
When out of stock
Answered later
197,100JPY (with tax 216,810JPY)
27943
SVL1/4MVCR
VCR® M L type 1/4 inch
When out of stock
Answered later
197,700JPY (with tax 217,470JPY)
27948
SVS1/4MVCR
VCR® M Staight 1/4 inch
When out of stock
Answered later
197,100JPY (with tax 216,810JPY)
Joint standard shape Tube / Fitting Size
To detail page Contact Us

Filter by model

Tube / Fitting Size

Joint standard

shape

ソレノイドバルブ admin.label.item.catalog_image
パルス電源：DC24V
投入電源：3.5A
投入時間：パルス0.2-1秒（コイル温度の上昇抑制）
開・閉：極性を入れ替える（+24/-24）

Heリークテスト・弁座漏れ試験
外部許容リーク量：10x10-10Pa・㎥/sec以下
弁座許容リーク量：10x10-9Pa・㎥/sec以下
