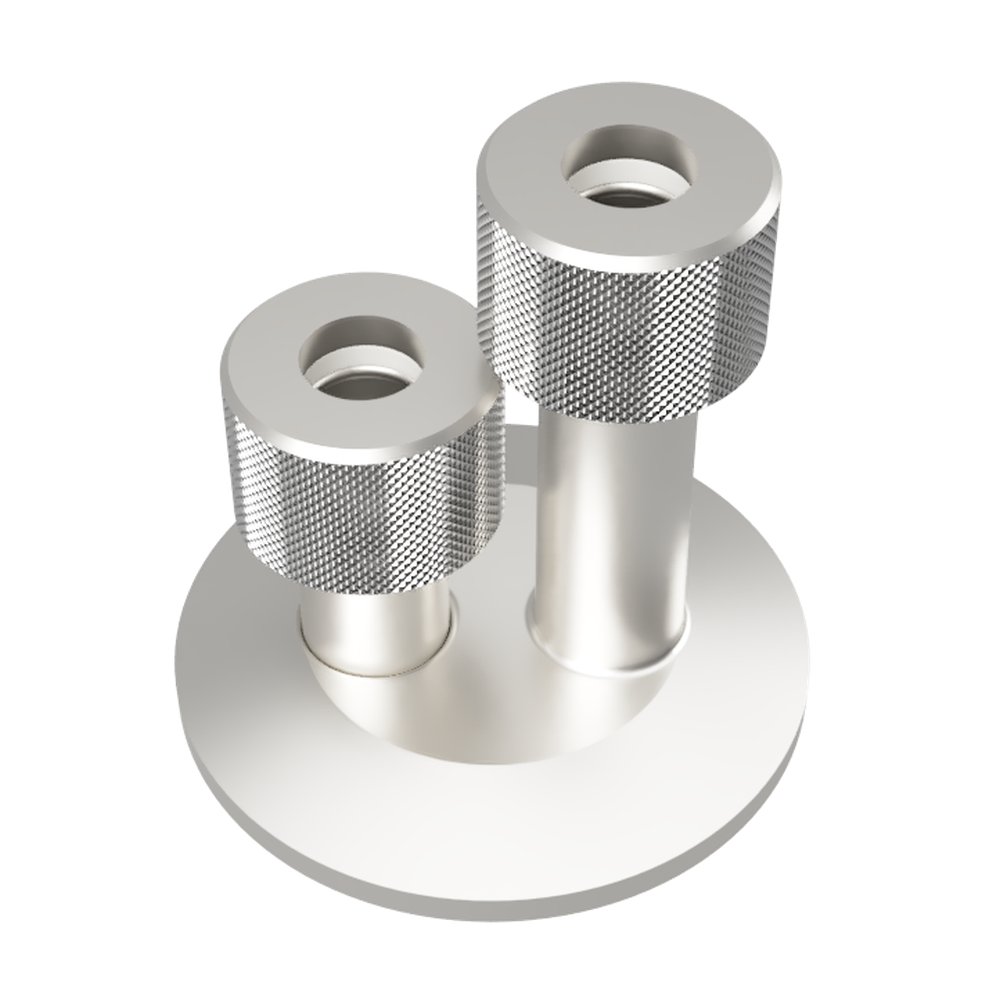

NW40+3/8" dual gauge port

NW40+3/8インチ デュアル ゲージポート

Mouse over the image to enlarge it

NW40+3/8インチ デュアル ゲージポート
share the productshare the product
Facebook
LINE
Twitter
Product code :27670 Model:NW40DGP3/8BT

▼Dual Adapter Gauge Port/Wilson Seal
Two tubes can be introduced through one flange.
Used to introduce vacuum gauges, tubing, etc.
O-ring seal inside the port
Dual type has no internal step.
The nominal diameter of the gauge port is the outer diameter of the tube to be inserted.

▼Precautions for Use
Tightening the knurled portion without a tube inserted will damage the internal components and may cause thread galling.
Never tighten the knurled portion without a tube or similar component inserted.
Tighten the knurled portion by hand only.
Tightening is complete when the thread can no longer be turned by hand.

▼Custom-made products are also available.
We can also accommodate changes in length, fittings, and flange size. Please contact us by clicking the "Inquiry" button on the right side of the page.

For precision cleaning requests, please click here.

Basic Information
Seal / gasket material Viton ®
body SUS 304
RoHS2 corresponding ○
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 NW/KF ICF VF VG Connection diameter (φ) B D P.C.D
Stock & Delivery
front.product.price
front.product.tax_included2
27670
NW40DGP3/8BT
40 - - - 3/8 inch 55 36 20
NW40+3/8インチ デュアル ゲージポート admin.label.item.size_image
NW/KF ICF VF VG Connection diameter (φ) B D P.C.D
40 - - - 3/8 inch 55 36 20
