▼Dual Adapter Gauge Port/Wilson Seal
Two tubes can be introduced through one flange.
Used to introduce vacuum gauges, tubing, etc.
O-ring seal inside the port
Dual type has no internal step.
The nominal diameter of the gauge port is the outer diameter of the tube to be inserted.
▼Precautions for Use
Tightening the knurled portion without a tube inserted will damage the internal components and may cause thread galling.
Never tighten the knurled portion without a tube or similar component inserted.
Tighten the knurled portion by hand only.
Tightening is complete when the thread can no longer be turned by hand.
▼Custom-made products are also available.
We can also accommodate changes in length, fittings, and flange size. Please contact us by clicking the "Inquiry" button on the right side of the page.
For precision cleaning requests, please click here.
| Basic Information | |
|---|---|
| Seal / gasket material | Viton ® |
| body | SUS 304 |
| RoHS2 corresponding | Compliant |
※ Please click on the product code or model for more information.
front.product.product_code Model |
NW/KF | ICF | VF | VG | Connection diameter (φ) | B | D | P.C.D | Stock & Delivery |
front.product.price front.product.tax_included2 |
|---|---|---|---|---|---|---|---|---|---|---|

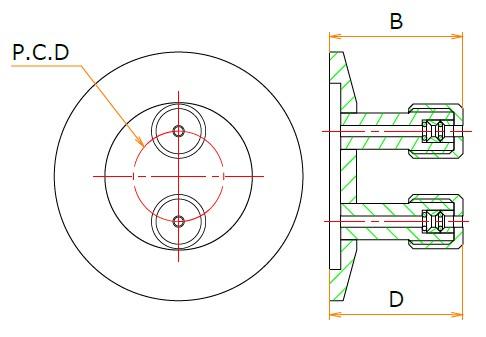

| 40 | - | - | - | 2 mm | - | 30 | 20 |
When out of stock
20 Business Days
|
74,100JPY
(with tax 81,510JPY)
|
|
| 40 | - | - | - | 3 mm | - | 40 | 20 |
When out of stock
20 Business Days
|
74,700JPY
(with tax 82,170JPY)
|
|
| 40 | - | - | - | 4 mm | - | 40 | 20 |
When out of stock
20 Business Days
|
75,100JPY
(with tax 82,610JPY)
|
|
| 40 | - | - | - | 5 mm | - | 45 | 20 |
When out of stock
20 Business Days
|
75,700JPY
(with tax 83,270JPY)
|
|
| 40 | - | - | - | 6 mm | - | 45 | 20 |
When out of stock
20 Business Days
|
77,100JPY
(with tax 84,810JPY)
|
|
| 40 | - | - | - | 8 mm | - | 44 | 20 |
When out of stock
20 Business Days
|
77,400JPY
(with tax 85,140JPY)
|
|
| 40 | - | - | - | 1/4 inch | - | 36 | 20 |
When out of stock
20 Business Days
|
91,100JPY
(with tax 100,210JPY)
|
|

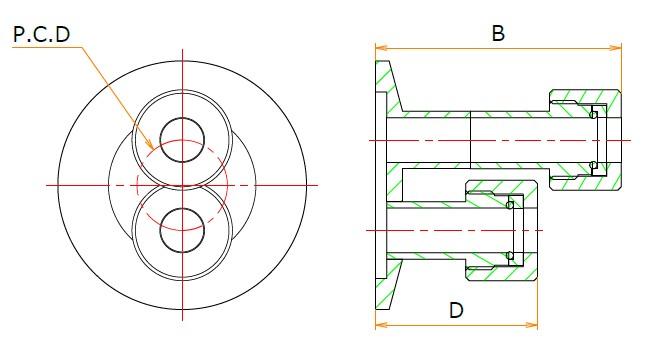

| 40 | - | - | - | 3/8 inch | 55 | 36 | 20 |
When out of stock
20 Business Days
|
97,100JPY
(with tax 106,810JPY)
|
|

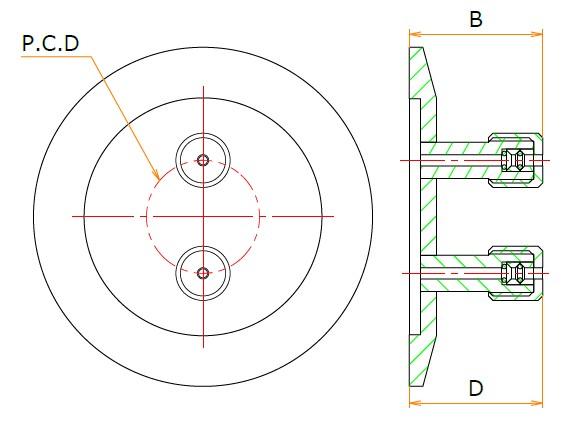

| 50 | - | - | - | 2 mm | - | 30 | 25 |
When out of stock
20 Business Days
|
74,700JPY
(with tax 82,170JPY)
|
|
| 50 | - | - | - | 3 mm | - | 40 | 25 |
When out of stock
20 Business Days
|
75,100JPY
(with tax 82,610JPY)
|
|
| 50 | - | - | - | 4 mm | - | 40 | 25 |
When out of stock
20 Business Days
|
75,700JPY
(with tax 83,270JPY)
|
|
| 50 | - | - | - | 5 mm | - | 45 | 25 |
When out of stock
20 Business Days
|
77,100JPY
(with tax 84,810JPY)
|
|
| 50 | - | - | - | 6 mm | - | 45 | 25 |
When out of stock
20 Business Days
|
77,700JPY
(with tax 85,470JPY)
|
|
| 50 | - | - | - | 8 mm | - | 44 | 25 |
When out of stock
20 Business Days
|
77,400JPY
(with tax 85,140JPY)
|
|
| 50 | - | - | - | 10 mm | - | 55 | 25 |
When out of stock
20 Business Days
|
79,100JPY
(with tax 87,010JPY)
|
|

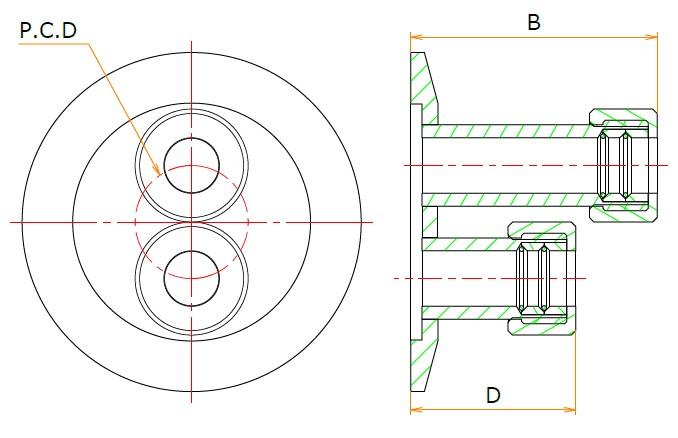

| 50 | - | - | - | 12 mm | 55 | 37 | 25 |
When out of stock
20 Business Days
|
90,700JPY
(with tax 99,770JPY)
|
|
| 50 | - | - | - | 1/4 inch | - | 36 | 25 |
When out of stock
20 Business Days
|
91,700JPY
(with tax 100,870JPY)
|
|
| 50 | - | - | - | 3/8 inch | - | 36 | 25 |
When out of stock
20 Business Days
|
97,700JPY
(with tax 107,470JPY)
|
|
| 50 | - | - | - | 1/2 inch | - | 36 | 25 |
When out of stock
20 Business Days
|
97,900JPY
(with tax 107,690JPY)
|
|

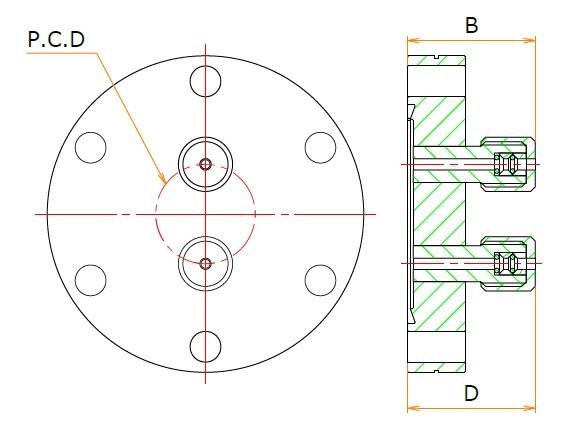

| - | 70 | - | - | 2 mm | - | 29 | 22 |
When out of stock
20 Business Days
|
77,100JPY
(with tax 84,810JPY)
|
|
| - | 70 | - | - | 3 mm | - | 39 | 22 |
When out of stock
20 Business Days
|
77,700JPY
(with tax 85,470JPY)
|
|
| - | 70 | - | - | 4 mm | - | 39 | 22 |
When out of stock
20 Business Days
|
79,100JPY
(with tax 87,010JPY)
|
|
| - | 70 | - | - | 5 mm | - | 44 | 22 |
When out of stock
20 Business Days
|
79,700JPY
(with tax 87,670JPY)
|
|
| - | 70 | - | - | 6 mm | - | 44 | 22 |
When out of stock
20 Business Days
|
90,100JPY
(with tax 99,110JPY)
|
|
| - | 70 | - | - | 8 mm | - | 43 | 22 |
When out of stock
20 Business Days
|
90,700JPY
(with tax 99,770JPY)
|
|
| - | 70 | - | - | 1/4 inch | - | 35 | 22 |
When out of stock
20 Business Days
|
94,100JPY
(with tax 103,510JPY)
|
|

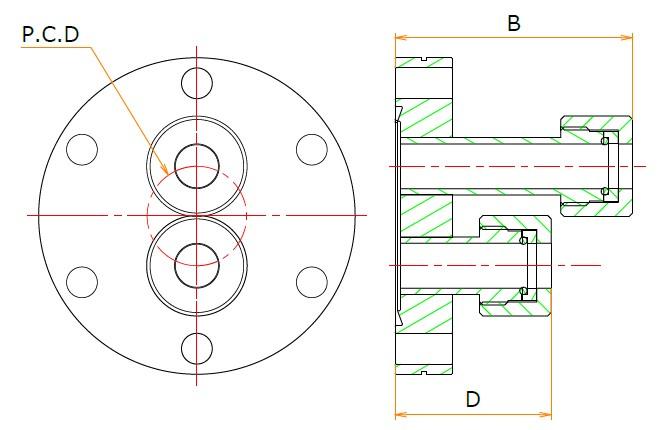

| - | 70 | - | - | 3/8 inch | 53 | 35 | 22 |
When out of stock
20 Business Days
|
95,100JPY
(with tax 104,610JPY)
|
|

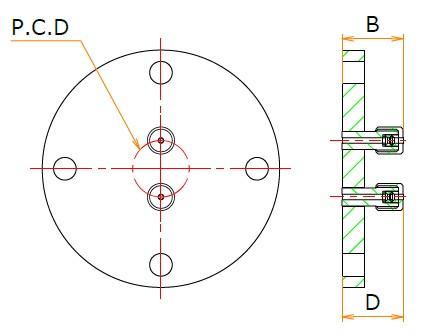

| - | - | 40 | - | 2 mm | - | 27 | 25 |
When out of stock
20 Business Days
|
79,100JPY
(with tax 87,010JPY)
|
|
| - | - | 40 | - | 3 mm | - | 37 | 25 |
When out of stock
20 Business Days
|
79,700JPY
(with tax 87,670JPY)
|
|
| - | - | 40 | - | 4 mm | - | 37 | 25 |
When out of stock
20 Business Days
|
90,100JPY
(with tax 99,110JPY)
|
|
| - | - | 40 | - | 5 mm | - | 42 | 37 |
When out of stock
20 Business Days
|
90,700JPY
(with tax 99,770JPY)
|
|
| - | - | 40 | - | 6 mm | - | 42 | 25 |
When out of stock
20 Business Days
|
91,700JPY
(with tax 100,870JPY)
|
|
| - | - | 40 | - | 8 mm | - | 41 | 25 |
When out of stock
20 Business Days
|
94,100JPY
(with tax 103,510JPY)
|
|
| - | - | 40 | - | 10 mm | - | 52 | 25 |
When out of stock
20 Business Days
|
94,700JPY
(with tax 104,170JPY)
|
|

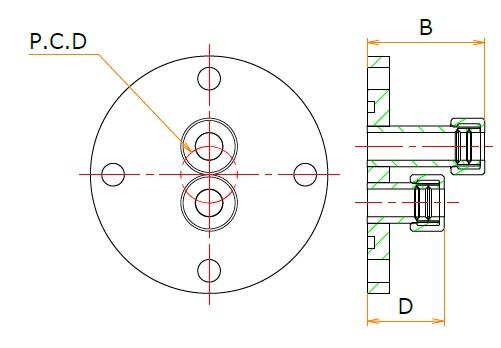

| - | - | 40 | - | 12 mm | 52 | 34 | 25 |
When out of stock
20 Business Days
|
97,100JPY
(with tax 106,810JPY)
|
|
| - | - | 40 | - | 1/4 inch | - | 34 | 25 |
When out of stock
20 Business Days
|
95,700JPY
(with tax 105,270JPY)
|
|
| - | - | 40 | - | 3/8 inch | - | 34 | 25 |
When out of stock
20 Business Days
|
97,100JPY
(with tax 106,810JPY)
|
|
| - | - | 40 | - | 1/2 inch | - | 34 | 25 |
When out of stock
20 Business Days
|
97,700JPY
(with tax 107,470JPY)
|
|

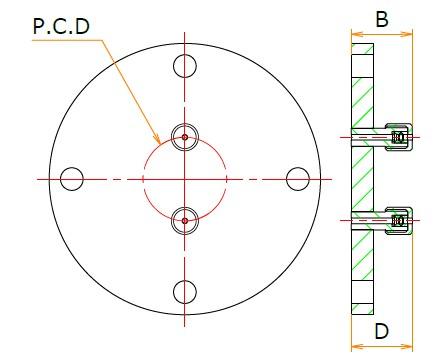

| - | - | 50 | - | 2 mm | - | 27 | 37 |
When out of stock
20 Business Days
|
90,700JPY
(with tax 99,770JPY)
|
|
| - | - | 50 | - | 3 mm | - | 37 | 37 |
When out of stock
20 Business Days
|
91,700JPY
(with tax 100,870JPY)
|
|
| - | - | 50 | - | 4 mm | - | 37 | 37 |
When out of stock
20 Business Days
|
94,100JPY
(with tax 103,510JPY)
|
|
| - | - | 50 | - | 5 mm | - | 42 | 37 |
When out of stock
20 Business Days
|
94,700JPY
(with tax 104,170JPY)
|
|
| - | - | 50 | - | 6 mm | - | 42 | 37 |
When out of stock
20 Business Days
|
97,100JPY
(with tax 106,810JPY)
|
|
| - | - | 50 | - | 8 mm | - | 41 | 37 |
When out of stock
20 Business Days
|
99,100JPY
(with tax 109,010JPY)
|
|
| - | - | 50 | - | 10 mm | - | 52 | 37 |
When out of stock
20 Business Days
|
99,400JPY
(with tax 109,340JPY)
|
|
| - | - | 50 | - | 12 mm | - | 52 | 37 |
When out of stock
20 Business Days
|
99,700JPY
(with tax 109,670JPY)
|
|
| - | - | 50 | - | 1/4 inch | - | 34 | 37 |
When out of stock
20 Business Days
|
97,900JPY
(with tax 107,690JPY)
|
|
| - | - | 50 | - | 3/8 inch | - | 34 | 37 |
When out of stock
20 Business Days
|
99,100JPY
(with tax 109,010JPY)
|
|
| - | - | 50 | - | 1/2 inch | - | 34 | 37 |
When out of stock
20 Business Days
|
99,400JPY
(with tax 109,340JPY)
|
|
| - | - | 50 | - | 3/4 inch | - | 42 | 37 |
When out of stock
20 Business Days
|
99,700JPY
(with tax 109,670JPY)
|
|

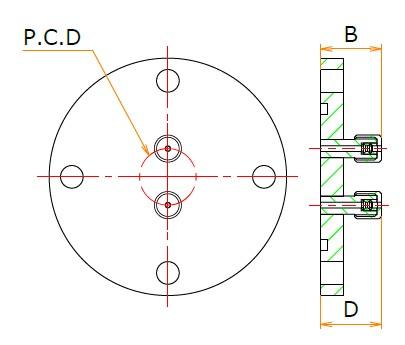

| - | - | - | 40 | 2 mm | - | 27 | 25 |
When out of stock
20 Business Days
|
79,100JPY
(with tax 87,010JPY)
|
|
| - | - | - | 40 | 3 mm | - | 37 | 25 |
When out of stock
20 Business Days
|
79,700JPY
(with tax 87,670JPY)
|
|
| - | - | - | 40 | 4 mm | - | 37 | 25 |
When out of stock
20 Business Days
|
90,100JPY
(with tax 99,110JPY)
|
|
| - | - | - | 40 | 5 mm | - | 42 | 25 |
When out of stock
20 Business Days
|
90,700JPY
(with tax 99,770JPY)
|
|
| - | - | - | 40 | 6 mm | - | 42 | 25 |
When out of stock
20 Business Days
|
91,700JPY
(with tax 100,870JPY)
|
|
| - | - | - | 40 | 8 mm | - | 41 | 25 |
When out of stock
20 Business Days
|
94,100JPY
(with tax 103,510JPY)
|
|
| - | - | - | 40 | 10 mm | - | 52 | 25 |
When out of stock
20 Business Days
|
94,700JPY
(with tax 104,170JPY)
|
|

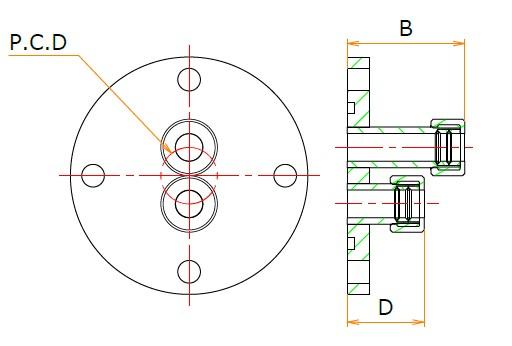

| - | - | - | 40 | 12 mm | 52 | 34 | 25 |
When out of stock
20 Business Days
|
97,100JPY
(with tax 106,810JPY)
|
|
| - | - | - | 40 | 1/4 inch | - | 34 | 25 |
When out of stock
20 Business Days
|
95,700JPY
(with tax 105,270JPY)
|
|
| - | - | - | 40 | 3/8 inch | - | 34 | 25 |
When out of stock
20 Business Days
|
97,100JPY
(with tax 106,810JPY)
|
|
| - | - | - | 40 | 1/2 inch | - | 34 | 25 |
When out of stock
20 Business Days
|
97,700JPY
(with tax 107,470JPY)
|
|

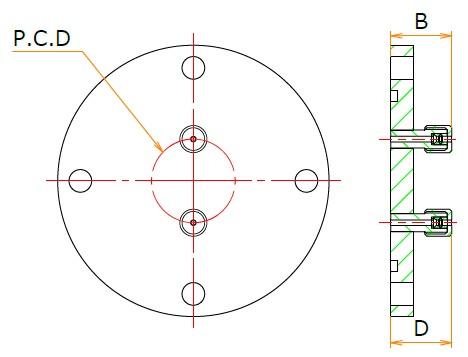

| - | - | - | 50 | 2 mm | - | 27 | 37 |
When out of stock
20 Business Days
|
90,700JPY
(with tax 99,770JPY)
|
|
| - | - | - | 50 | 3 mm | - | 37 | 37 |
When out of stock
20 Business Days
|
91,700JPY
(with tax 100,870JPY)
|
|
| - | - | - | 50 | 4 mm | - | 37 | 37 |
When out of stock
20 Business Days
|
94,100JPY
(with tax 103,510JPY)
|
|
| - | - | - | 50 | 5 mm | - | 42 | 37 |
When out of stock
20 Business Days
|
94,700JPY
(with tax 104,170JPY)
|
|
| - | - | - | 50 | 6 mm | - | 42 | 37 |
When out of stock
20 Business Days
|
97,100JPY
(with tax 106,810JPY)
|
|
| - | - | - | 50 | 8 mm | - | 41 | 37 |
When out of stock
20 Business Days
|
99,100JPY
(with tax 109,010JPY)
|
|
| - | - | - | 50 | 10 mm | - | 52 | 37 |
When out of stock
20 Business Days
|
99,400JPY
(with tax 109,340JPY)
|
|
| - | - | - | 50 | 12 mm | - | 52 | 37 |
When out of stock
20 Business Days
|
99,700JPY
(with tax 109,670JPY)
|
|
| - | - | - | 50 | 1/4 inch | - | 34 | 37 |
When out of stock
20 Business Days
|
97,900JPY
(with tax 107,690JPY)
|
|
| - | - | - | 50 | 3/8 inch | - | 34 | 37 |
When out of stock
20 Business Days
|
99,100JPY
(with tax 109,010JPY)
|
|
| - | - | - | 50 | 1/2 inch | - | 34 | 37 |
When out of stock
20 Business Days
|
99,400JPY
(with tax 109,340JPY)
|
|
| - | - | - | 50 | 3/4 inch | - | 42 | 37 |
When out of stock
20 Business Days
|
99,700JPY
(with tax 109,670JPY)
|
| NW/KF | ICF | VF | VG | Connection diameter (φ) | B | D | P.C.D |
|---|---|---|---|---|---|---|---|
