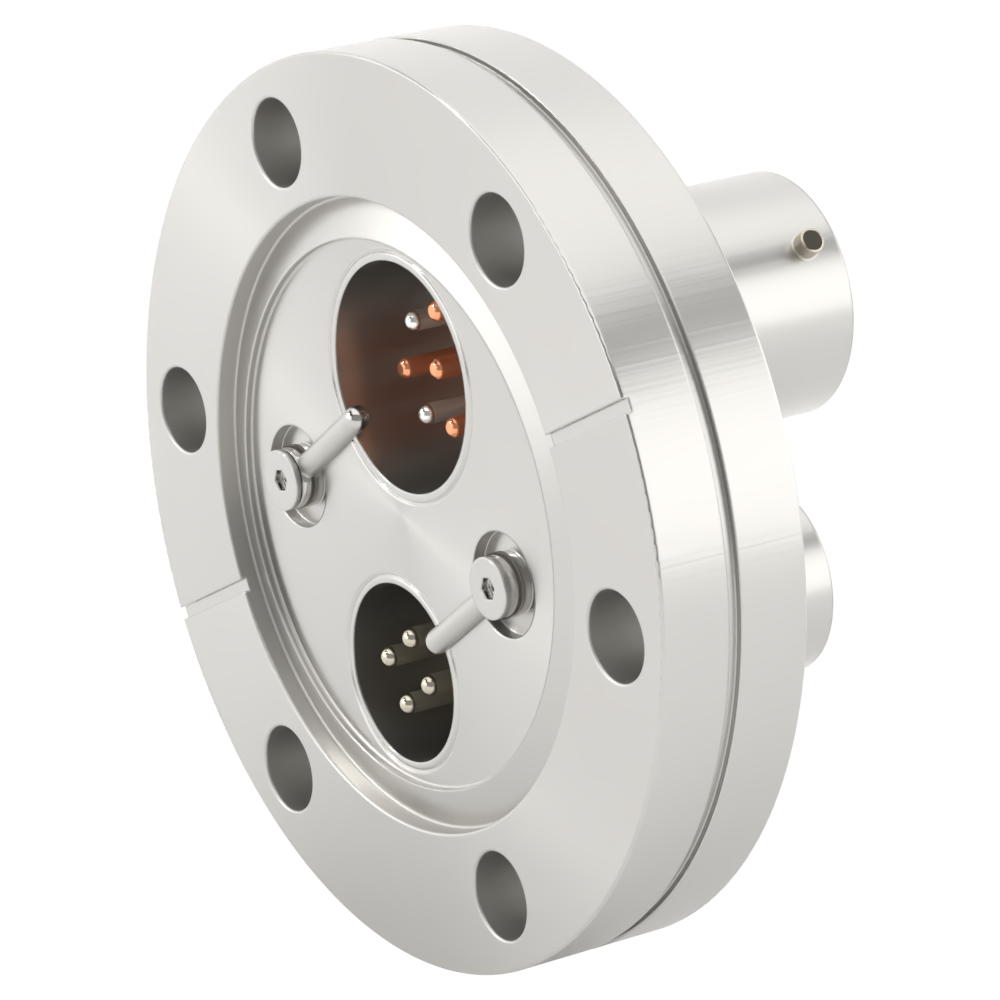

Multi-pin BURNDY 4 PIN + T thermocouple 4-pair ICF70 flange with guide

多ピン BURNDY 4 PIN + T熱電対4対 ICF70 フランジ ガイド付き

Mouse over the image to enlarge it

多ピン BURNDY 4 PIN + T熱電対4対 ICF70 フランジ ガイド付き
share the productshare the product
Facebook
LINE
Twitter
Product code :18921 Model:C70MB4TCT4G

▼Multi-pin BURNDY® guided multiple terminals
Hybrid feedthroughs combining multiple terminals
Multiple terminals can be used for different applications.
Terminals: Multi-pin high current type, K thermocouple, T thermocouple
Separate power induction and thermal measurement on a single port.

▼Custom-made products are also available.
Combination of multiple and different types of terminals, change of flange size, and mounting on special flanges are also available.
Please contact us from the "Inquiry" button on the right side of the page.

For precision cleaning requests, please click here.

Basic Information
Withstand voltage: DC 500 V
Insulation resistance value 10⁹ ohm
frequency 10 MHz
Connection type BURNDY
Flange material SUS 304
sleeve Kovar ®
Insulator Alumina ceramic
Maximum temperature 450℃
The lowest temperature -196℃
Leak rate <1.3x10-10Pa･㎥/sec
RoHS2 corresponding ○
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 NW/KF ICF type A B D1 D2 The contents of goods The number of electrode Pairs of Thermocouple Electric current / 1 pc. Total current/1 terminal
Stock & Delivery
front.product.price
front.product.tax_included2
18921
C70MB4TCT4G
- 70 T Thermocouple/High current 70 12.7 37 37 Only flanged terminal 4 4 10 A 33.1 A
多ピン BURNDY 4 PIN + T熱電対4対 ICF70 フランジ ガイド付き admin.label.item.size_image
NW/KF ICF type A B D1 D2 The contents of goods The number of electrode Pairs of Thermocouple Electric current / 1 pc. Total current/1 terminal
- 70 T Thermocouple/High current 70 12.7 37 37 Only flanged terminal 4 4 10 A 33.1 A
Multi-pin BURNDY 4 PIN + T thermocouple 4-pair ICF70 flange with guide
Product code :18921    Model:C70MB4TCT4G
Contact Us

Filter by model

フランジ

タイプ

商品内容

電極数

対数（熱電対）

電流/1本

総電流/1端子

多ピン BURNDY 4 PIN + T熱電対4対 ICF70 フランジ ガイド付き admin.label.item.catalog_image
製品 型式 4+4タイプ 8+4タイプ 8+8タイプ
フランジ付き端子 - 1個 1個 1個
真空側PEEKインサート VSPI4GA 2個 1個 -
真空側PEEKインサート VSPI8GA - 1個 2個
大気側プラグ ASP4 2個 1個 -
大気側プラグ ASP8 - 1個 2個
ソケットコンタクト SVC16 10本/2組 10本/3組 10本/4組
製品 型式 4+4タイプ 多ピン8+熱電対4タイプ 熱電対8+多ピン4タイプ 8+8タイプ
フランジ付き端子 - 1個 1個 1個 1個
真空側PEEKインサート VSPI4GA 2個 1個 1個 -
真空側PEEKインサート VSPI8GA - 1個 1個 2個
大気側プラグ ASP4 2個 1個 1個 -
大気側プラグ ASP8 - 1個 1個 2個
ソケットコンタクト SVC16 10本/1組 10本/2組 10本/1組 10本/2組
クロメルソケットコンタクト(+) SVC16CHA 4本 4本 8本 8本
アルメルソケットコンタクト(-) SVC16ALA 4本 4本 8本 8本
製品 型式 4+4タイプ 多ピン8+熱電対4タイプ 熱電対8+多ピン4タイプ 8+8タイプ
フランジ付き端子 - 1個 1個 1個 1個
真空側PEEKインサート VSPI4GA 1個 - 1個 -
真空側PEEKインサート VSPI8GA - 1個 - 1個
大気側プラグ ASP4 1個 - 1個 -
大気側プラグ ASP8 - 1個 - 1個
ソケットコンタクト SVC16 10本/1組 10本/2組 10本/1組 10本/2組
銅ソケットコンタクト(+) SVC16CUNL 4本 4本 8本 8本
コンスタンタソケットコンタクト(-) SVC16CONL 4本 4本 8本 8本
