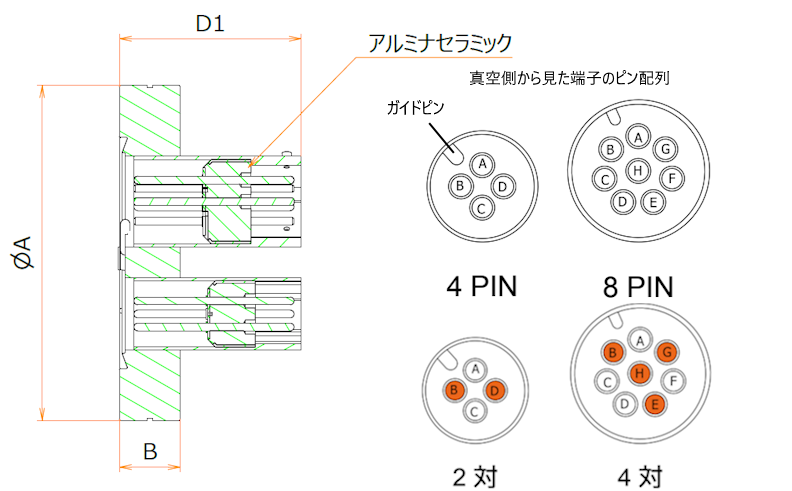

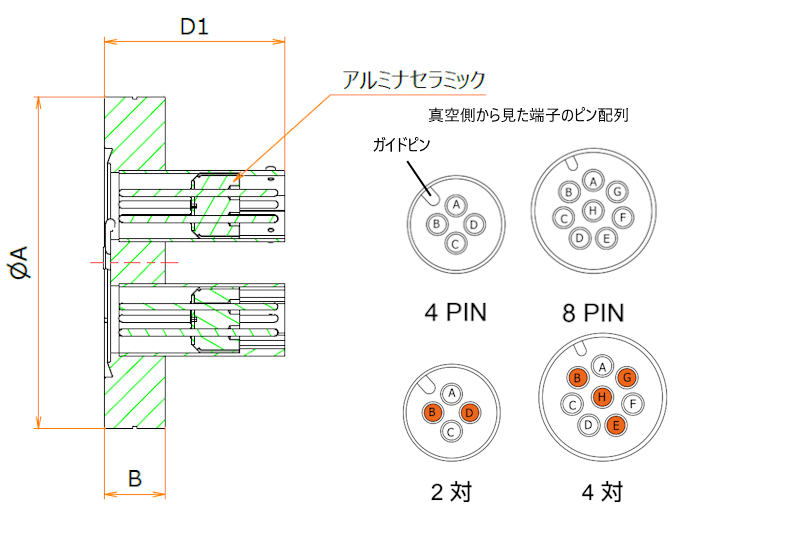

▼Multi-pin BURNDY® guided multiple terminals
Hybrid feedthroughs combining multiple terminals
Multiple terminals can be used for different applications.
Terminals: Multi-pin high current type, K thermocouple, T thermocouple
Separate power induction and thermal measurement on a single port.
▼Custom-made products are also available.
Combination of multiple and different types of terminals, change of flange size, and mounting on special flanges are also available.
Please contact us from the "Inquiry" button on the right side of the page.
For precision cleaning requests, please click here.
| Basic Information | |
|---|---|
| Withstand voltage: DC | 500 V |
| Insulation resistance value | 10⁹ ohm |
| frequency | 10 MHz |
| Connection type | BURNDY |
| Flange material | SUS 304 |
| sleeve | Kovar ® |
| Insulator | Alumina ceramic |
| Maximum temperature | 450℃ |
| The lowest temperature | -196℃ |
| Leak rate | <1.3x10-10Pa・㎥/sec |
| RoHS2 corresponding | Compliant |
※ Please click on the product code or model for more information.
front.product.product_code Model |
NW/KF | ICF | type | A | B | D1 | D2 | The contents of goods | The number of electrode | Pairs of Thermocouple | Electric current / 1 pc. | Total current/1 terminal | Stock & Delivery |
front.product.price front.product.tax_included2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 40 | - | High current | 55 | 12.7 | 38 | 38 | Only flanged terminal | 8(4+4) | - | 10 A | 33.1 A |
When out of stock
15 Business Days
|
184,100JPY
(with tax 202,510JPY)
|
|
| 40 | - | High current | 55 | 12.7 | 38 | 38 | Assembled set | 8(4+4) | - | 10 A | 33.1 A |
When out of stock
15 Business Days
|
257,300JPY
(with tax 283,030JPY)
|
|
| 40 | - | High current | 55 | 12.7 | 38 | 38 | Only flanged terminal | 16(8+8) | - | 10 A | 48 A |
When out of stock
15 Business Days
|
191,100JPY
(with tax 210,210JPY)
|
|
| 40 | - | High current | 55 | 12.7 | 38 | 38 | Assembled set | 16(8+8) | - | 10 A | 48 A |
When out of stock
15 Business Days
|
289,000JPY
(with tax 317,900JPY)
|
|
| 40 | - | High current | 55 | 12.7 | 38 | 38 | Only flanged terminal | 12(8+4) | - | 10 A | 4 Pin 33.1 A / 8 Pin 48 A |
When out of stock
15 Business Days
|
187,100JPY
(with tax 205,810JPY)
|
|
| 40 | - | High current | 55 | 12.7 | 38 | 38 | Assembled set | 12(8+4) | - | 10 A | 4 Pin 33.1 A / 8 Pin 48 A |
When out of stock
15 Business Days
|
279,500JPY
(with tax 307,450JPY)
|
|
| 40 | - | K thermocouple/High current | 55 | 12.7 | 38 | 38 | Only flanged terminal | 8 | 4 | 10 A | 48 A |
When out of stock
15 Business Days
|
271,100JPY
(with tax 298,210JPY)
|
|
| 40 | - | K thermocouple/High current | 55 | 12.7 | 38 | 38 | Assembled set | 8 | 4 | 10 A | 48 A |
When out of stock
15 Business Days
|
426,000JPY
(with tax 468,600JPY)
|
|
| 40 | - | K thermocouple/High current | 55 | 12.7 | 38 | 38 | Only flanged terminal | 8 | 2 | 10 A | 48 A |
When out of stock
15 Business Days
|
291,100JPY
(with tax 320,210JPY)
|
|
| 40 | - | K thermocouple/High current | 55 | 12.7 | 38 | 38 | Assembled set | 8 | 2 | 10 A | 48 A |
When out of stock
15 Business Days
|
412,000JPY
(with tax 453,200JPY)
|
|
| 40 | - | K thermocouple/High current | 55 | 12.7 | 38 | 38 | Only flanged terminal | 4 | 4 | 10 A | 33.1 A |
When out of stock
15 Business Days
|
271,100JPY
(with tax 298,210JPY)
|
|
| 40 | - | K thermocouple/High current | 55 | 12.7 | 38 | 38 | Assembled set | 4 | 4 | 10 A | 33.1 A |
When out of stock
15 Business Days
|
420,500JPY
(with tax 462,550JPY)
|
|
| 40 | - | K thermocouple/High current | 55 | 12.7 | 38 | 38 | Only flanged terminal | 4 | 2 | 10 A | 33.1 A |
When out of stock
15 Business Days
|
254,100JPY
(with tax 279,510JPY)
|
|
| 40 | - | K thermocouple/High current | 55 | 12.7 | 38 | 38 | Assembled set | 4 | 2 | 10 A | 33.1 A |
When out of stock
15 Business Days
|
355,800JPY
(with tax 391,380JPY)
|
|
| 40 | - | T Thermocouple/High current | 55 | 12.7 | 38 | 38 | Only flanged terminal | 8 | 4 | 10 A | 48 A |
When out of stock
15 Business Days
|
311,100JPY
(with tax 342,210JPY)
|
|
| 40 | - | T Thermocouple/High current | 55 | 12.7 | 38 | 38 | Assembled set | 8 | 4 | 10 A | 48 A |
When out of stock
15 Business Days
|
454,600JPY
(with tax 500,060JPY)
|
|
| 40 | - | T Thermocouple/High current | 55 | 12.7 | 38 | 38 | Only flanged terminal | 8 | 2 | 10 A | 48 A |
When out of stock
15 Business Days
|
331,100JPY
(with tax 364,210JPY)
|
|
| 40 | - | T Thermocouple/High current | 55 | 12.7 | 38 | 38 | Assembled set | 8 | 2 | 10 A | 48 A |
When out of stock
15 Business Days
|
429,000JPY
(with tax 471,900JPY)
|
|
| 40 | - | T Thermocouple/High current | 55 | 12.7 | 38 | 38 | Only flanged terminal | 4 | 4 | 10 A | 33.1 A |
When out of stock
15 Business Days
|
311,100JPY
(with tax 342,210JPY)
|
|
| 40 | - | T Thermocouple/High current | 55 | 12.7 | 38 | 38 | Assembled set | 4 | 4 | 10 A | 33.1 A |
When out of stock
15 Business Days
|
442,400JPY
(with tax 486,640JPY)
|
|
| 40 | - | T Thermocouple/High current | 55 | 12.7 | 38 | 38 | Only flanged terminal | 4 | 2 | 10 A | 33.1 A |
When out of stock
15 Business Days
|
294,100JPY
(with tax 323,510JPY)
|
|
| 40 | - | T Thermocouple/High current | 55 | 12.7 | 38 | 38 | Assembled set | 4 | 2 | 10 A | 33.1 A |
When out of stock
15 Business Days
|
379,800JPY
(with tax 417,780JPY)
|
|
| - | 70 | High current | 70 | 12.7 | 37 | 37 | Only flanged terminal | 8(4+4) | - | 10 A | 33.1 A |
When out of stock
15 Business Days
|
167,100JPY
(with tax 183,810JPY)
|
|
| - | 70 | High current | 70 | 12.7 | 37 | 37 | Assembled set | 8(4+4) | - | 10 A | 33.1 A |
When out of stock
15 Business Days
|
240,300JPY
(with tax 264,330JPY)
|
|
| - | 70 | High current | 70 | 12.7 | 37 | 37 | Only flanged terminal | 16(8+8) | - | 10 A | 48 A |
When out of stock
15 Business Days
|
177,100JPY
(with tax 194,810JPY)
|
|
| - | 70 | High current | 70 | 12.7 | 37 | 37 | Assembled set | 16(8+8) | - | 10 A | 48 A |
When out of stock
15 Business Days
|
275,000JPY
(with tax 302,500JPY)
|
|
| - | 70 | High current | 70 | 12.7 | 37 | 37 | Only flanged terminal | 12(8+4) | - | 10 A | 4 Pin 33.1 A / 8 Pin 48 A |
When out of stock
15 Business Days
|
171,100JPY
(with tax 188,210JPY)
|
|
| - | 70 | High current | 70 | 12.7 | 37 | 37 | Assembled set | 12(8+4) | - | 10 A | 4 Pin 33.1 A / 8 Pin 48 A |
When out of stock
15 Business Days
|
263,500JPY
(with tax 289,850JPY)
|
|
| - | 70 | K thermocouple/High current | 70 | 12.7 | 37 | 37 | Only flanged terminal | 8 | 4 | 10 A | 48 A |
stock
1
1-2 Business Days
When out of stock
15 Business Days
|
274,100JPY
(with tax 301,510JPY)
|
|
| - | 70 | K thermocouple/High current | 70 | 12.7 | 37 | 37 | Assembled set | 8 | 4 | 10 A | 48 A |
stock
1
1-2 Business Days
When out of stock
15 Business Days
|
429,000JPY
(with tax 471,900JPY)
|
|
| - | 70 | K thermocouple/High current | 70 | 12.7 | 38 | 38 | Only flanged terminal | 8 | 2 | 10 A | 48 A |
When out of stock
15 Business Days
|
294,100JPY
(with tax 323,510JPY)
|
|
| - | 70 | K thermocouple/High current | 70 | 12.7 | 37 | 37 | Assembled set | 8 | 2 | 10 A | 48 A |
When out of stock
15 Business Days
|
415,000JPY
(with tax 456,500JPY)
|
|
| - | 70 | K thermocouple/High current | 70 | 12.7 | 37 | 37 | Only flanged terminal | 4 | 4 | 10 A | 33.1 A |
When out of stock
15 Business Days
|
274,100JPY
(with tax 301,510JPY)
|
|
| - | 70 | K thermocouple/High current | 70 | 12.7 | 37 | 37 | Assembled set | 4 | 4 | 10 A | 33.1 A |
When out of stock
15 Business Days
|
423,500JPY
(with tax 465,850JPY)
|
|
| - | 70 | K thermocouple/High current | 70 | 12.7 | 37 | 37 | Only flanged terminal | 4 | 2 | 10 A | 33.1 A |
When out of stock
15 Business Days
|
257,100JPY
(with tax 282,810JPY)
|
|
| - | 70 | K thermocouple/High current | 70 | 12.7 | 37 | 37 | Assembled set | 4 | 2 | 10 A | 33.1 A |
When out of stock
15 Business Days
|
358,800JPY
(with tax 394,680JPY)
|
|
| - | 70 | T Thermocouple/High current | 70 | 12.7 | 37 | 37 | Only flanged terminal | 8 | 4 | 10 A | 48 A |
When out of stock
15 Business Days
|
314,100JPY
(with tax 345,510JPY)
|
|
| - | 70 | T Thermocouple/High current | 70 | 12.7 | 37 | 37 | Assembled set | 8 | 4 | 10 A | 48 A |
When out of stock
15 Business Days
|
457,600JPY
(with tax 503,360JPY)
|
|
| - | 70 | T Thermocouple/High current | 70 | 12.7 | 37 | 37 | Only flanged terminal | 8 | 2 | 10 A | 48 A |
When out of stock
15 Business Days
|
334,100JPY
(with tax 367,510JPY)
|
|
| - | 70 | T Thermocouple/High current | 70 | 12.7 | 37 | 37 | Assembled set | 8 | 2 | 10 A | 48 A |
When out of stock
15 Business Days
|
432,000JPY
(with tax 475,200JPY)
|
|
| - | 70 | T Thermocouple/High current | 70 | 12.7 | 38 | 38 | Only flanged terminal | 4 | 4 | 10 A | 33.1 A |
When out of stock
15 Business Days
|
314,100JPY
(with tax 345,510JPY)
|
|
| - | 70 | T Thermocouple/High current | 70 | 12.7 | 38 | 38 | Assembled set | 4 | 4 | 10 A | 33.1 A |
When out of stock
15 Business Days
|
445,400JPY
(with tax 489,940JPY)
|
|
| - | 70 | T Thermocouple/High current | 70 | 12.7 | 37 | 37 | Only flanged terminal | 4 | 2 | 10 A | 33.1 A |
When out of stock
15 Business Days
|
297,100JPY
(with tax 326,810JPY)
|
|
| - | 70 | T Thermocouple/High current | 70 | 12.7 | 37 | 37 | Assembled set | 4 | 2 | 10 A | 33.1 A |
When out of stock
15 Business Days
|
382,800JPY
(with tax 421,080JPY)
|
| NW/KF | ICF | type | A | B | D1 | D2 | The contents of goods | The number of electrode | Pairs of Thermocouple | Electric current / 1 pc. | Total current/1 terminal |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 製品 | 型式 | 多ピン4PIN+多ピン4PIN | 多ピン8PIN+多ピン8PIN | 多ピン4PIN+多ピン8PIN |
|---|---|---|---|---|
| フランジ付き端子 | - | 1個 | 1個 | 1個 |
| 真空側PEEKインサート | VSPI4GA | 2個 | - | 1個 |
| 真空側PEEKインサート | VSPI8GA | - | 2個 | 1個 |
| 大気側プラグ | ASP4 | 2個 | - | 1個 |
| 大気側プラグ | ASP8 | - | 2個 | 1個 |
| ソケットコンタクト | SVC16 | 10本/2組 | 10本/4組 | 10本/3組 |
| 製品 | 型式 | 多ピン4PIN+K熱電対2対 | 多ピン4PIN+K熱電対4対 | 多ピン8PIN+K熱電対2対 | 多ピン8PIN+K熱電対4対 |
|---|---|---|---|---|---|
| フランジ付き端子 | - | 1個 | 1個 | 1個 | 1個 |
| 真空側PEEKインサート | VSPI4GA | 2個 | 1個 | 1個 | - |
| 真空側PEEKインサート | VSPI8GA | - | 1個 | 1個 | 2個 |
| 大気側プラグ | ASP4 | 2個 | 1個 | 1個 | - |
| 大気側プラグ | ASP8 | - | 1個 | 1個 | 2個 |
| ソケットコンタクト | SVC16 | 10本/1組 | 10本/1組 | 10本/2組 | 10本/2組 |
| クロメルソケットコンタクト(+) | SVC16CHA | 4本 | 8本 | 4本 | 8本 |
| アルメルソケットコンタクト(-) | SVC16ALA | 4本 | 8本 | 4本 | 8本 |
| 製品 | 型式 | 多ピン4PIN+T熱電対2対 | 多ピン4PIN+T熱電対4対 | 多ピン8PIN+T熱電対2対 | 多ピン8PIN+T熱電対4対 |
|---|---|---|---|---|---|
| フランジ付き端子 | - | 1個 | 1個 | 1個 | 1個 |
| 真空側PEEKインサート | VSPI4GA | 1個 | 1個 | - | - |
| 真空側PEEKインサート | VSPI8GA | - | - | 1個 | 1個 |
| 大気側プラグ | ASP4 | 1個 | 1個 | - | - |
| 大気側プラグ | ASP8 | - | - | 1個 | 1個 |
| ソケットコンタクト | SVC16 | 10本/1組 | 10本/1組 | 10本/2組 | 10本/2組 |
| 銅ソケットコンタクト(+) | SVC16CUNL | 4本 | 8本 | 4本 | 8本 |
| コンスタンタソケットコンタクト(-) | SVC16CONL | 4本 | 8本 | 4本 | 8本 |
