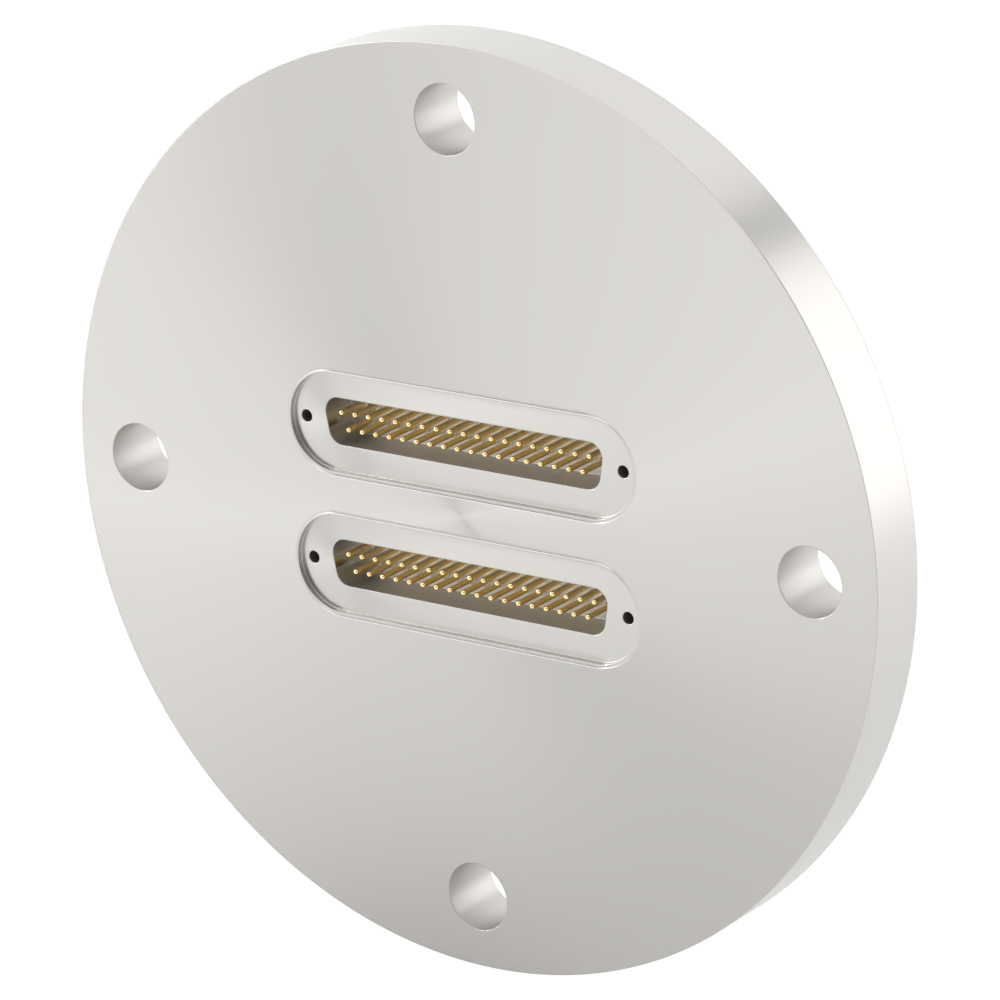

Multi-pin D-Sub 37 PIN + 37PIN VF80 Flange

多ピン D-Sub 37 PIN + 37PIN VF80 フランジ

Mouse over the image to enlarge it

多ピン D-Sub 37 PIN + 37PIN VF80 フランジ
share the productshare the product
Facebook
LINE
Twitter
Product code :18886 Model:F80MD372

▼ Feedthrough Multi-Pin D-Sub (MIL-C-24308)
D-sub terminal mates with MIL-C-24308 standard equivalent
300V 3A compatible

▼ The following types are standardized (List)
Number of PINs: 9, 15, 25, 37, 50
Combination type (ex. 9PINx2 , 9PIN+15PIN)
Flange type (NW/KF, ICF, JIS-VF, JIS-VG)
Panel mount type

▼ Custom-made products are also available.
We also accept special flange custom-ordered panel mountings with different numbers of terminals and combinations of terminals of various types.
Please contact us by clicking the "Inquiry" button on the right side of this page.

※ Panel mount type comes with bolt washers and O-rings.

Click here to request precision cleaning.

Basic Information
type D-Sub
Insulation resistance value 10⁹ ohm
Connection type D-Sub(MIL-C-24308)
electrode Kovar ®
Flange material SUS 304
sleeve SUS 329
Insulator Borosilicate glass
Maximum temperature 300℃
The lowest temperature -196℃
Leak rate <1.3x10-10Pa･㎥/sec
Electric current / 1 pc. 3 A
Total current/1 terminal 22.2 A
Withstand voltage: DC 300 V
RoHS2 corresponding ○
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 Panel mount NW/KF ICF VF VG Bolt Anakei Bolt hole spacing A B D The number of electrode E1 E2
Stock & Delivery
front.product.price
front.product.tax_included2
18886
F80MD372
- - - 80 - - - 160 12 22 74(37+37) - -
多ピン D-Sub 37 PIN + 37PIN VF80 フランジ admin.label.item.size_image
Panel mount NW/KF ICF VF VG Bolt Anakei Bolt hole spacing A B D The number of electrode E1 E2
- - - 80 - - - 160 12 22 74(37+37) - -
Multi-pin D-Sub 37 PIN + 37PIN VF80 Flange
Product code :18886    Model:F80MD372
Contact Us

Filter by model

フランジ

電極数

多ピン D-Sub 37 PIN + 37PIN VF80 フランジ admin.label.item.catalog_image
Dサブのアセンブリ方法は以下の画像をクリックしてください。
Dサブ_アセンブリ方法
圧着工具の取扱い方法は以下の画像をクリックしてください。
圧着工具の取り扱い方法
D-Sub端子内はストレート結線になっております。
D-Subピン配列
Connection parts
Connecting parts vacuum side D-Sub PEEK® insert 37PIN
Connecting parts vacuum side D-Sub PEEK® insert 37PIN
Product code :14038
Model:VSPI37D
Connecting parts vacuum-side socket contact φ1.0 crimp type
Connecting parts vacuum-side socket contact φ1.0 crimp type
Product code :13358
Model:SVC10D
With the vacuum side Kapton coated cables D-Sub PEEK® insert 37PIN for L = 1000
With the vacuum side Kapton coated cables D-Sub PEEK® insert 37PIN for L = 1000
Product code :14482
Model:VMD37K1000X/PI
Connection parts atmosphere side plug D-Sub 37 for PIN
Connection parts atmosphere side plug D-Sub 37 for PIN
Product code :14040
Model:ASP37D
Connection piece vacuum side Kapton coated ribbon cable 37PIN for L = 1000
Connection piece vacuum side Kapton coated ribbon cable 37PIN for L = 1000
Product code :14477
Model:VMD37K1000/XX
RTMD 25 PIN/37 PIN/50 PIN BOLT/WASHER with Hexagon Socket for 25 PIN/37 PIN/50 PIN 25 pairs
RTMD 25 PIN/37 PIN/50 PIN BOLT/WASHER with Hexagon Socket for 25 PIN/37 PIN/50 PIN 25 pairs
Product code :25566
Model:BW-M5X16LB
