  1. Cosmotec for Vacuum Components
  2. Feedthrough
  3. Coaxial
  4. BNC type
  5. Coaxial BNC-R-F with 3 pcs ICF70 Flange

Coaxial BNC-R-F with 3 pcs ICF70 Flange

同軸 BNC-R-F 3個付き ICF70 フランジ

Mouse over the image to enlarge it

同軸 BNC-R-F 3個付き ICF70 フランジ
share the productshare the product
Facebook
LINE
Twitter
Product code :10318 Model:C70BRF3

Bayonet Naval Connectors
▼ Feedthrough Coaxial BNC Floating Shield One Side Plug Mating
1kV 3A compatible
For 50Ω transmission
Floating shield isolated from ground
Electrode on vacuum side, BNC connector connection on atmospheric side only
Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

▼ In addition, the following types are standardized
Ground shield
Plug mating on both sides
Electrode tip M2 screw (one side plug type)
High voltage 5kV

▼ Custom-made products are also available.
We can also accept a change in the number of poles, a combination of multiple types of terminals, and mounting on a special flange.
Please contact us by clicking the "Inquiry" button on the right side of this page.

Precision cleaning request.

Basic Information
type BNC
Connection type The atmosphere-side plug-fitti
electrode Kovar ®
Flange material SUS 304
sleeve Kovar ®
Insulator Alumina ceramic
Maximum temperature 450℃
The lowest temperature -196℃
Leak rate <1.3x10-10Pa･㎥/sec
Classification Flanged terminal
type Floating shield
Impedance 50 Ω
frequency 100 MHz
Insulation resistance value 10⁹ ohm
Withstand voltage: DC 1 kV
Electric current / 1 pc. 3 A
RoHS2 corresponding ○
116,400 JPY (with tax 128,040JPY)
stock
3
1-2 Business Days
When out of stock
30 Business Days
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 NW/KF ICF VF VG A B C D P.C.D The number of electrode
Stock & Delivery
front.product.price
front.product.tax_included2
10318
C70BRF3
- 70 - - 70 12.7 18.8 25 21 3
stock
3 1-2 Business Days
When out of stock
30 Business Days
116,400JPY (with tax 128,040JPY)

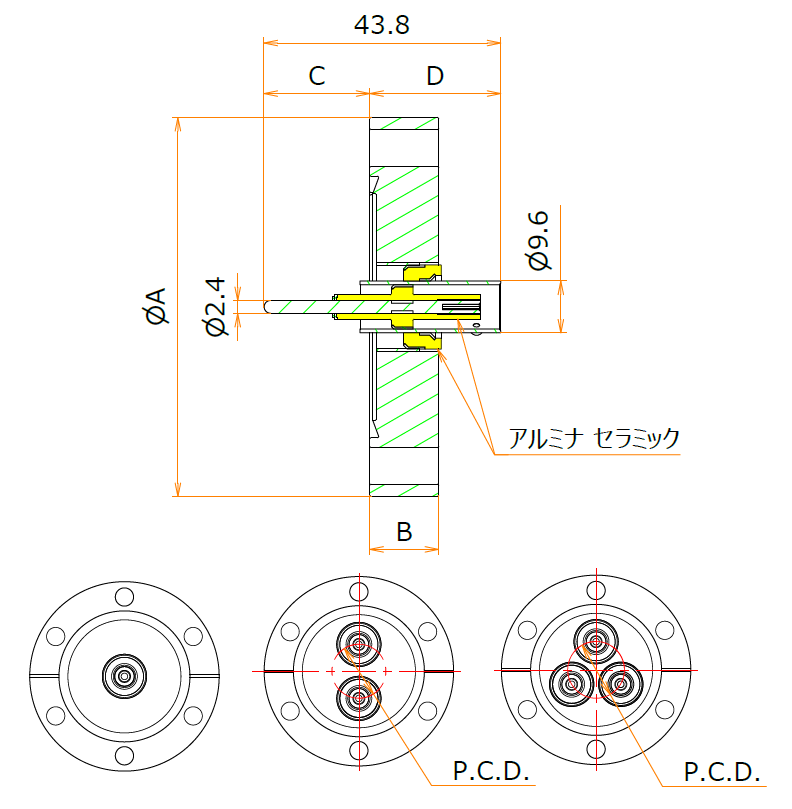

同軸 BNC-R-F 3個付き ICF70 フランジ admin.label.item.size_image
NW/KF ICF VF VG A B C D P.C.D The number of electrode
- 70 - - 70 12.7 18.8 25 21 3
Coaxial BNC-R-F with 3 pcs ICF70 Flange
Product code :10318    Model:C70BRF3
116,400JPY (with tax 128,040JPY)
Contact Us

Filter by model

フランジ

電極数
