ISO-K/F - VF/VG standard conversion nipple
▼ISO-K/F - VF/VG Conversion Nipple
For converting piping standards.
ISO-K flange fastening method: clamp fastening
ISO-F flange fastening method: bolt fastening
ISO flange center ring is common for both K and F.
ISO-F type comes with a conversion ring; use it with the ISO-K flange.
JIS flange fastening method: Bolt tightening
Bolt hole: Drilled hole type (through hole)
For JIS flanges, VF (without groove) and VG (with groove) are used as a pair.
▼The following types are standardized
Flange size (ISO-K): 63, 80, 100
Flange size (JIS): 50, 65, 80, 100
Material: SUS304
Various standard conversion nipples are here.
▼Others
Cross pipes, adapters, and various piping are available in a wide variety of sizes.
Please contact us for a consultation about changing the material and flange size. Please contact us by clicking the "Inquiry" button on the right side of the page.
For precision cleaning requests, please click here.
| Basic Information | |
|---|---|
| Flange material | SUS 304 |
| The inner surface processing | Buff 400 (equivalent to Ra 1.0 |
| RoHS2 corresponding | ○ |
We have 34 type candidate
※ Please click on the product code or model for more information.
front.product.product_code Model |

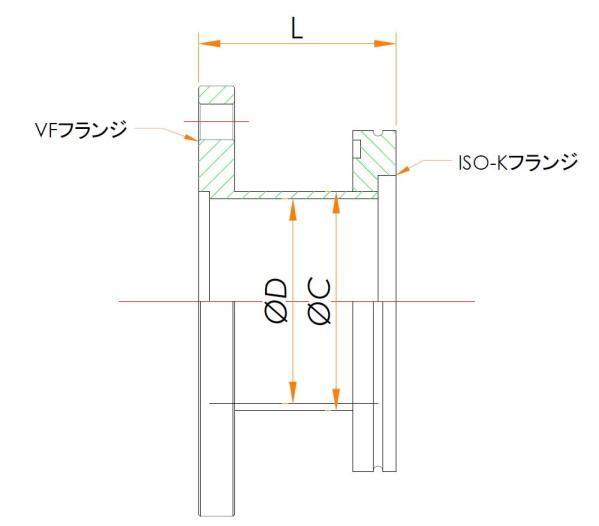

ISO-K | ISO-F | VF | VG | C | D | L | Stock & Delivery |
front.product.price front.product.tax_included2 |
|---|---|---|---|---|---|---|---|---|---|
| 63 | - | 20 | - | 27.2 | 23.9 | 75 |
When out of stock
30 Business Days
|
44,100JPY
(with tax 48,510JPY)
|
|
| 63 | - | 25 | - | 34 | 30.7 | 75 |
When out of stock
30 Business Days
|
57,100JPY
(with tax 62,810JPY)
|
|
| 63 - 100 | - | 40 | - | 48.6 | 45.3 | 75 |
When out of stock
30 Business Days
|
61,100JPY
(with tax 67,210JPY)
|
|
| 63 | - | 50 | - | 60.5 | 54.5 | 75 |
stock
1
1-2 Business Days
When out of stock
30 Business Days
|
64,100JPY
(with tax 70,510JPY)
|
|
| 63 | - | - | 20 | 27.2 | 23.9 | 75 |
When out of stock
30 Business Days
|
44,100JPY
(with tax 48,510JPY)
|
|
| 63 | - | - | 25 | 34 | 30.7 | 75 |
When out of stock
30 Business Days
|
57,100JPY
(with tax 62,810JPY)
|
|
| 63 | - | - | 40 | 48.6 | 45.3 | 75 |
When out of stock
30 Business Days
|
61,100JPY
(with tax 67,210JPY)
|
|
| 63 | - | - | 50 | 60.5 | 54.5 | 75 |
stock
1
1-2 Business Days
When out of stock
30 Business Days
|
64,100JPY
(with tax 70,510JPY)
|
|
| 80 | - | 20 | - | 27.5 | 23.9 | 75 |
When out of stock
30 Business Days
|
54,100JPY
(with tax 59,510JPY)
|
|
| 80 | - | 25 | - | 34.3 | 30.7 | 75 |
When out of stock
30 Business Days
|
64,700JPY
(with tax 71,170JPY)
|
|
| 80 | - | 40 | - | 48.9 | 45.3 | 75 |
When out of stock
30 Business Days
|
71,100JPY
(with tax 78,210JPY)
|
|
| 80 | - | 65 | - | 76.3 | 70.3 | 75 |
stock
1
1-2 Business Days
When out of stock
30 Business Days
|
74,100JPY
(with tax 81,510JPY)
|
|
| 80 | - | 80 | - | 76.3 | 70.3 | 75 |
stock
1
1-2 Business Days
When out of stock
Answered later
|
97,100JPY
(with tax 106,810JPY)
|
|
| 80 | - | - | 20 | 27.5 | 23.9 | 75 |
When out of stock
30 Business Days
|
54,100JPY
(with tax 59,510JPY)
|
|
| 80 | - | - | 25 | 34.3 | 30.7 | 75 |
When out of stock
30 Business Days
|
64,700JPY
(with tax 71,170JPY)
|
|
| 80 | - | - | 40 | 48.9 | 45.3 | 75 |
When out of stock
30 Business Days
|
71,100JPY
(with tax 78,210JPY)
|
|
| 80 | - | - | 65 | 76.3 | 70.3 | 75 |
stock
1
1-2 Business Days
When out of stock
30 Business Days
|
74,100JPY
(with tax 81,510JPY)
|
|
| 80 | - | - | 80 | 76.3 | 70.3 | 75 |
stock
1
1-2 Business Days
When out of stock
Answered later
|
97,100JPY
(with tax 106,810JPY)
|
|
| 100 | - | 20 | - | 23.9 | 27.5 | 75 |
When out of stock
30 Business Days
|
57,100JPY
(with tax 62,810JPY)
|
|
| 100 | - | 25 | - | 34.3 | 30.7 | 75 |
When out of stock
30 Business Days
|
67,100JPY
(with tax 73,810JPY)
|
|
| 100 | - | 40 | - | 48.9 | 45.3 | 75 |
When out of stock
30 Business Days
|
71,100JPY
(with tax 78,210JPY)
|
|
| 100 | - | 100 | - | 101.6 | 95.6 | 75 |
stock
3
1-2 Business Days
When out of stock
Answered later
|
99,100JPY
(with tax 109,010JPY)
|
|
| 100 | - | - | 20 | 23.9 | 27.5 | 75 |
When out of stock
30 Business Days
|
57,100JPY
(with tax 62,810JPY)
|
|
| 100 | - | - | 25 | 34.3 | 30.7 | 75 |
When out of stock
30 Business Days
|
67,100JPY
(with tax 73,810JPY)
|
|
| 100 | - | - | 40 | 48.9 | 45.3 | 75 |
When out of stock
30 Business Days
|
71,100JPY
(with tax 78,210JPY)
|
|
| 100 | - | - | 100 | 101.6 | 95.6 | 75 |
When out of stock
30 Business Days
|
99,100JPY
(with tax 109,010JPY)
|
|
| - | 63 | 50 | - | 60.5 | 54.5 | 75 |
When out of stock
Answered later
|
74,100JPY
(with tax 81,510JPY)
|
|
| - | 63 | - | 50 | 60.5 | 54.5 | 75 |
When out of stock
Answered later
|
74,100JPY
(with tax 81,510JPY)
|
|
| - | 80 | 65 | - | 76.3 | 70.3 | 75 |
When out of stock
Answered later
|
84,100JPY
(with tax 92,510JPY)
|
|
| - | 80 | 80 | - | 76.3 | 70.3 | 75 |
When out of stock
Answered later
|
107,100JPY
(with tax 117,810JPY)
|
|
| - | 80 | - | 80 | 76.3 | 70.3 | 75 |
When out of stock
Answered later
|
107,100JPY
(with tax 117,810JPY)
|
|
| - | 80 | - | 65 | 76.3 | 70.3 | 75 |
When out of stock
Answered later
|
84,100JPY
(with tax 92,510JPY)
|
|
| - | 100 | 100 | - | 101.6 | 95.6 | 75 |
When out of stock
Answered later
|
109,100JPY
(with tax 120,010JPY)
|
|
| - | 100 | - | 100 | 101.6 | 95.6 | 75 |
When out of stock
Answered later
|
109,100JPY
(with tax 120,010JPY)
|
| ISO-K | ISO-F | VF | VG | C | D | L |
|---|---|---|---|---|---|---|
