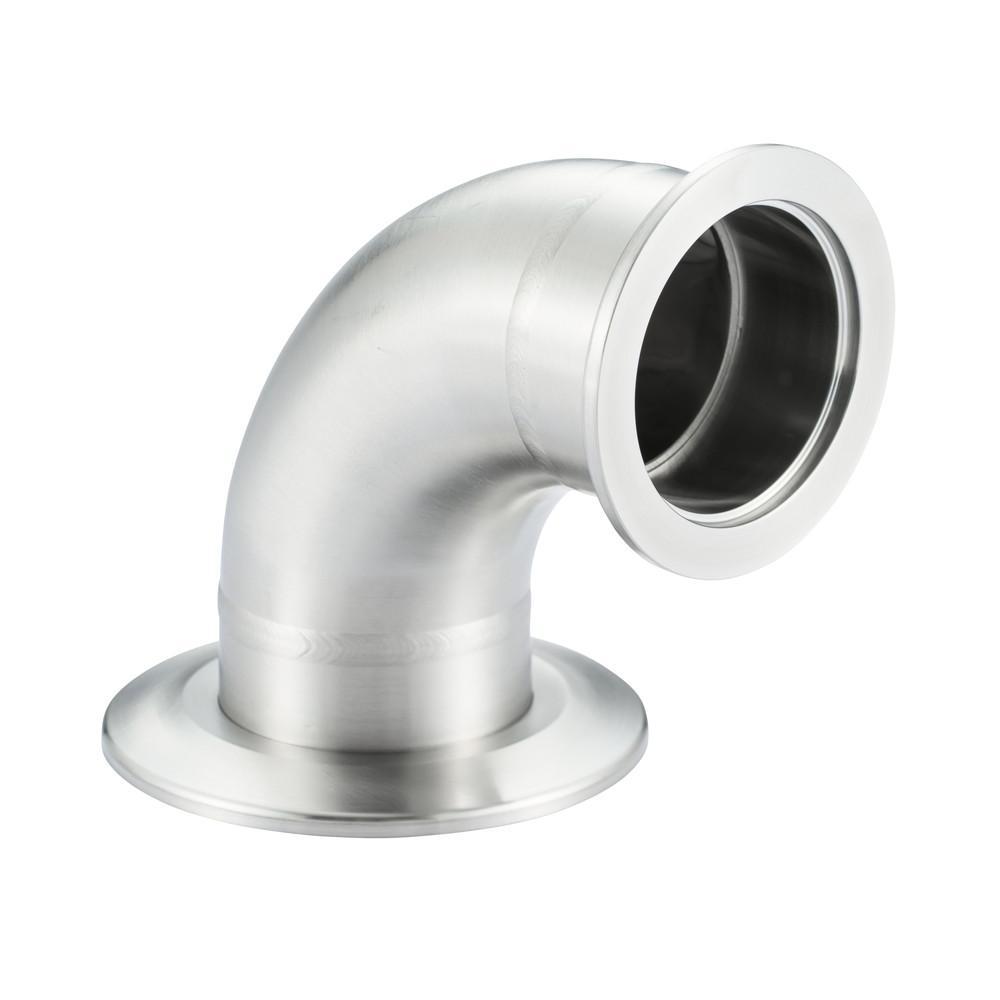

NW50/40 Conversion elbow

NW50/40 変換エルボ

Mouse over the image to enlarge it

NW50/40 変換エルボ
share the productshare the product
Facebook
LINE
Twitter
Product code :25957 Model:NW50/40EL

▼NW/KF Conversion elbow 90
The NW/KF Conversion Elbow 90° allows for both pipe diameter conversion and angle adjustment at the same time.
For NW flange connection, center ring and Clamps for NW flange connections.
The use of aluminum edge seals allows for ultra-high vacuum ( 10-⁹Pa range) is also possible with the use of aluminum edge seal.

The following types are standardized
Flange size (NW): 16, 25, 40, 50
Material: SUS304
Various standardized conversion nipples are also available.
ICF conversion elbows are here.

Others
Short and long flanges for welding (list), tees and crosses various types of piping are also available in various sizes.
We can also provide products with different flange sizes, lengths, and materials. Please contact us by clicking the "Inquiry" button on the right side of the page.

For precision cleaning requests, click here.

Basic Information
body SUS 304
Flange material SUS 304
RoHS2 corresponding ○
31,700 JPY (with tax 34,870JPY)
stock
1
1-2 Business Days
When out of stock
30 Business Days
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 NW/KF A B C D L
Stock & Delivery
front.product.price
front.product.tax_included2
25957
NW50/40EL
40 / 50 55 75 42.7 36.7 67.6
stock
1 1-2 Business Days
When out of stock
30 Business Days
31,700JPY (with tax 34,870JPY)
NW50/40 変換エルボ admin.label.item.size_image
NW/KF A B C D L
40 55 75 42.7 36.7 67.6
NW50/40 Conversion elbow
Product code :25957    Model:NW50/40EL
31,700JPY (with tax 34,870JPY)
