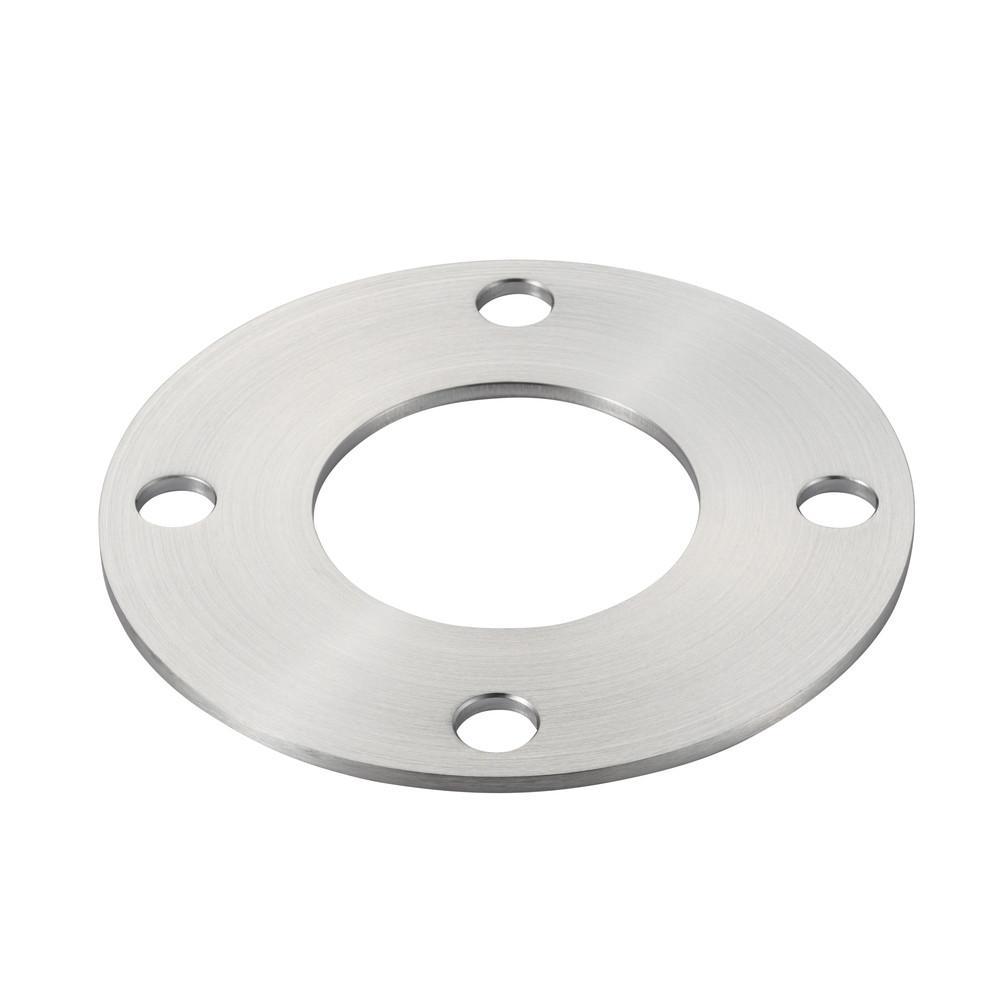

VF40 Double-sided seal face Perforated flange
▼JIS-VF Flange with both sealing faces perforated
Flange with both sealing faces perforated
Elastomer O-ring seal
Can be used for connection when VG (grooved) flanges face each other in piping.
Fastening method: bolt tightening
Bolt holes: Drilled hole type (through hole)
▼The following types of JIS standard flanges are standardized (List)
Flange size (JIS): 10, 20, 25, 40, 50, 65, 80, 100, 125, 150, 200, 250, 300
Material: SUS304
Blank flange, rotating flange, and flange with hole are standardized
In addition to zero-length conversion flanges, VG flange with grooves on both sides and VF flange with sealed faces on both sides
▼Others
Standard conversion nipples (list), tees and crosses various types of piping are also available in a wide variety of sizes.
Please contact us for additional processing or material changes to our products. Please contact us by clicking the "Inquiry" button on the right side of the page.
For precision cleaning requests, please click here.
| Basic Information | |
|---|---|
| Flange material | SUS 304 |
| RoHS2 corresponding | ○ |
front.product.product_code Model |
VF | A | C | T | P.C.D | Hole diameter(depth) | Number of holes | O-ring standard | Fixed/Rotatable | Stock & Delivery |
front.product.price front.product.tax_included2 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 40 | 105 | 49.5 | 3 | 85 | φ10 | 4 | V55 | pierced | |||
| VF | A | C | T | P.C.D | Hole diameter(depth) | Number of holes | O-ring standard | Fixed/Rotatable |
|---|---|---|---|---|---|---|---|---|
| 40 | 105 | 49.5 | 3 | 85 | φ10 | 4 | V55 | pierced |
