Multi-pin Micro D-Sub (MIL-DTL-83513) 15PIN NW/KF40 Flange

多ピン Micro D-Sub (MIL-DTL-83513) 15PIN NW/KF40 フランジ

Mouse over the image to enlarge it

share the productshare the product

Product code :17459 Model:N40MMD151

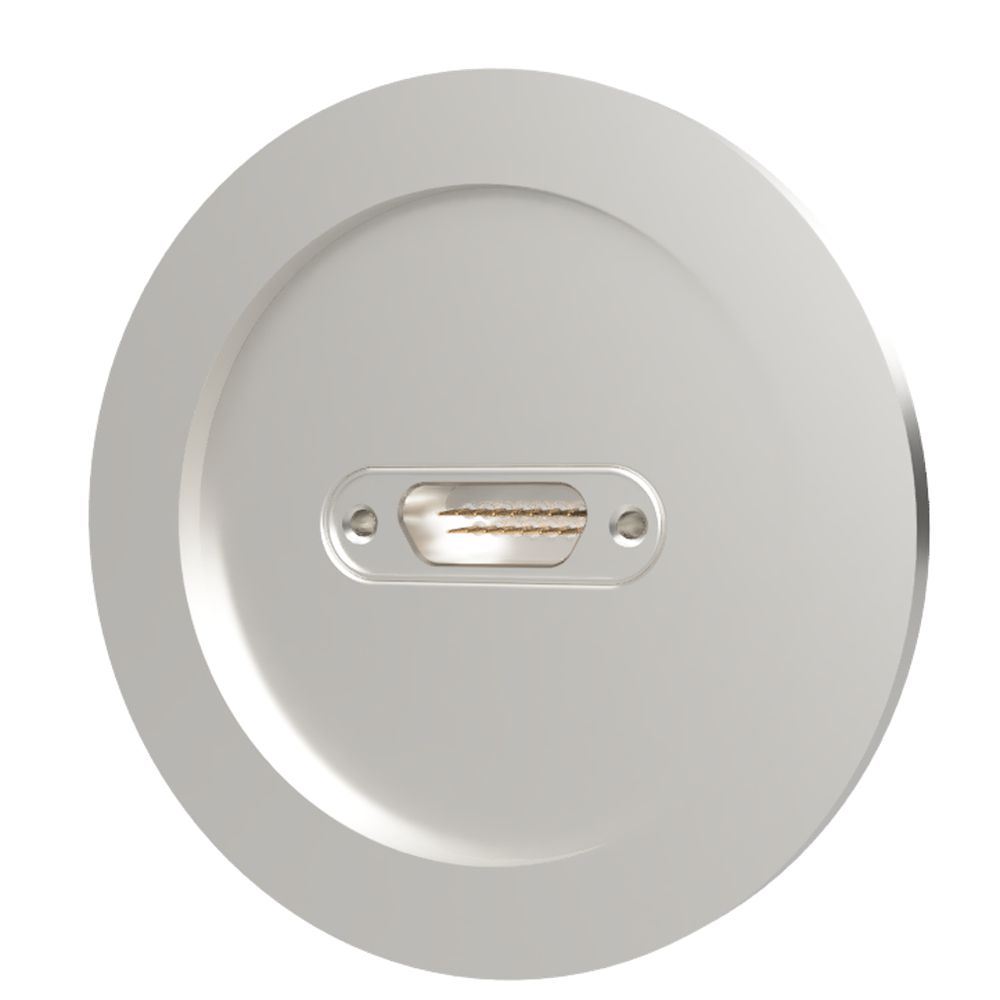

▼ Feedthrough Multi-Pin Micro D-Sub (MIL-DTL-83513)
Micro D-sub connector mates with MIL-DTL-83513 equivalent
300V 3A compatible
Pin shape on the vacuum side, socket shape on the atmosphere side
Straight wiring inside the terminal
Atmospheric side connector is here.

▼The following types are standardized (list)
Number of PINs: 9, 15, 21, 25, 31, 37, 51, 100
Flange: ICF, NW/KF, JIS-VF, JIS-VG

▼Custom-made products are also available.
We can change the flange, the number of terminals, and combine multiple types of terminals.
Please contact us by clicking the "Inquiry" button on the right side of the page.

For precision cleaning requests, please click here.

Basic Information
type	Micro D-Sub (MIL-DTL-83513)
Electric current / 1 pc.	3 A
Withstand voltage: DC	300 V
Connection type	Micro D-Sub (MIL-DTL-83513)
electrode	beryllium copper
Flange material	SUS 304L
Insulator	ceramic
Maximum temperature	450℃
The lowest temperature	-269℃
Leak rate	<1x10^-8Pa･㎥/sec

320,700 JPY (with tax 352,770JPY)

When out of stock: Answered later

Quantity

Inquiry for this product

share the productshare the product

front.product.product_code Model	NW/KF	ICF	VF	VG	The number of electrode	A	B	D	The contents of goods	Stock & Delivery	front.product.price front.product.tax_included2
17459 N40MMD151	40	-	-	-	15	55	6	-	Only flanged terminal	When out of stock Answered later	320,700JPY (with tax 352,770JPY)

NW/KF	ICF	VF	VG	The number of electrode	A	B	D	The contents of goods
40	-	-	-	15	55	6	-	Only flanged terminal

Connection parts

Vacuum side 9PIN with insert + cable

Product code :18486
Model:VMMD9K600X/PI

76,600JPY (with tax 84,260JPY)

Vacuum side 15PIN with insert + cable

Product code :18487
Model:VMMD15K600X/PI

109,700JPY (with tax 120,670JPY)

Vacuum side 21PIN with insert + cable

Product code :18488
Model:VMMD21K600X/PI

125,700JPY (with tax 138,270JPY)

Vacuum side 25PIN with insert + cable L=900

Product code :18616
Model:VMMD25K900X/PI

274,100JPY (with tax 301,510JPY)

Vacuum side 31PIN with insert + cable

Product code :18490
Model:VMMD31K600X/PI

138,300JPY (with tax 152,130JPY)

Vacuum side 37PIN with insert + cable L=900

Product code :18617
Model:VMMD37K900X/PI

347,600JPY (with tax 382,360JPY)

Vacuum side Insert + 51PIN with cable

Product code :18492
Model:VMMD51K600X/PI

237,200JPY (with tax 260,920JPY)

Vacuum side insert + 100PIN with cable

Product code :18493
Model:VMMD100K600X/PI

418,400JPY (with tax 460,240JPY)

Atmosphere side With plug + cable 9PIN

Product code :18494
Model:AMMD600X/9PI

38,200JPY (with tax 42,020JPY)

Atmosphere side With plug + cable 15PIN

Product code :18495
Model:AMMD600X/15PI

42,900JPY (with tax 47,190JPY)

Atmosphere side With plug + cable 25PIN

Product code :18497
Model:AMMD600X/25PI

37,200JPY (with tax 40,920JPY)

Atmosphere side With plug + cable 100PIN

Product code :18501
Model:AMMD600X/100PI

171,100JPY (with tax 188,210JPY)
