  6. Multi-pin Micro D-Sub (MIL-DTL-83513) 9PIN NW/KF25 Flange

Multi-pin Micro D-Sub (MIL-DTL-83513) 9PIN NW/KF25 Flange

多ピン Micro D-Sub (MIL-DTL-83513) 9PIN NW/KF25 フランジ

Mouse over the image to enlarge it

多ピン Micro D-Sub (MIL-DTL-83513) 9PIN NW/KF25 フランジ
share the productshare the product
Facebook
LINE
Twitter
Product code :17447 Model:N25MMD91

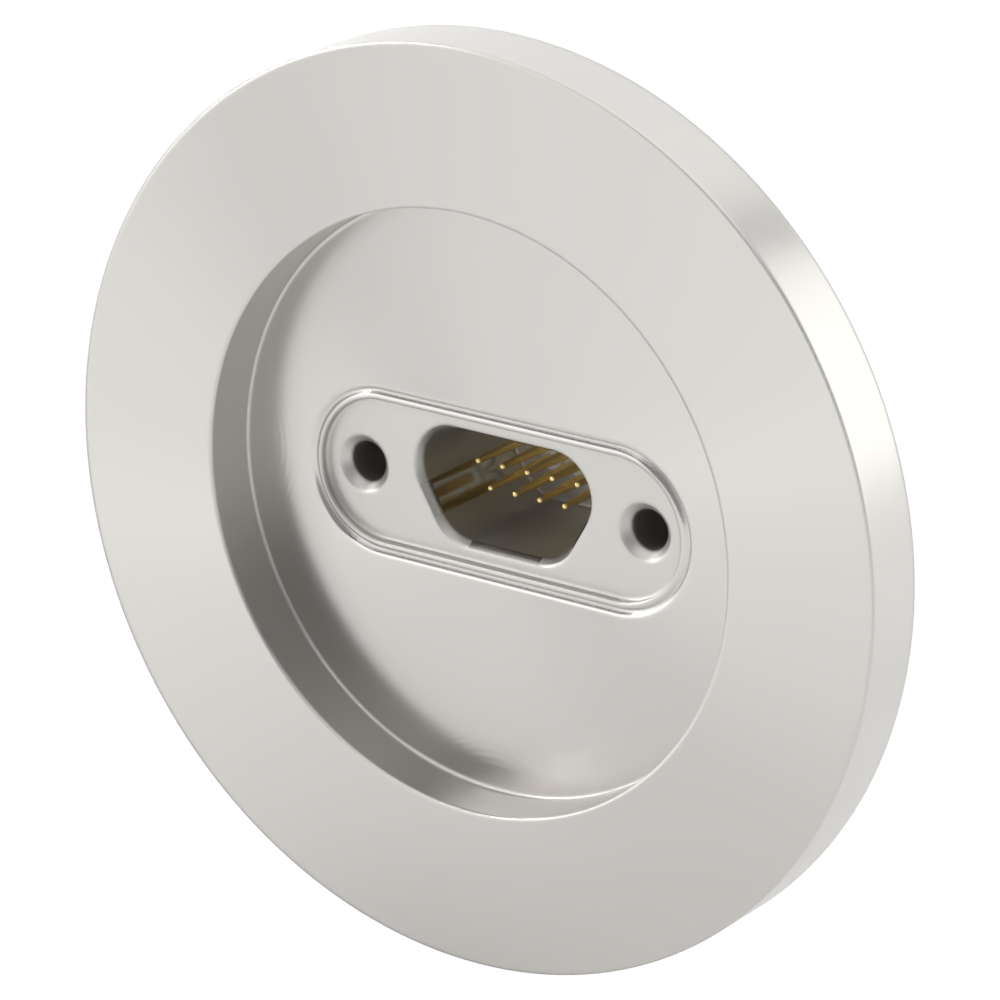

▼ Feedthrough Multi-Pin Micro D-Sub (MIL-DTL-83513)
Micro D-sub connector mates with MIL-DTL-83513 equivalent
300V 3A compatible
Pin shape on the vacuum side, socket shape on the atmosphere side
Straight wiring inside the terminal
Atmospheric side connector is here.

▼The following types are standardized (list)
Number of PINs: 9, 15, 21, 25, 31, 37, 51, 100
Flange: ICF, NW/KF, JIS-VF, JIS-VG

▼Custom-made products are also available.
We can change the flange, the number of terminals, and combine multiple types of terminals.
Please contact us by clicking the "Inquiry" button on the right side of the page.

For precision cleaning requests, please click here.

Basic Information
type Micro D-Sub (MIL-DTL-83513)
Electric current / 1 pc. 3 A
Withstand voltage: DC 300 V
Connection type Micro D-Sub (MIL-DTL-83513)
electrode beryllium copper
Flange material SUS 304L
Insulator ceramic
Maximum temperature 450℃
The lowest temperature -269℃
Leak rate <1x10-8Pa･㎥/sec
Inquiry for this product
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 NW/KF ICF VF VG The number of electrode A B D The contents of goods
Stock & Delivery
front.product.price
front.product.tax_included2
17447
N25MMD91
25 - - - 9 40 6 - Only flanged terminal
多ピン Micro D-Sub (MIL-DTL-83513) 9PIN NW/KF25 フランジ admin.label.item.size_image
NW/KF ICF VF VG The number of electrode A B D The contents of goods
25 - - - 9 40 6 - Only flanged terminal
Micro D-Sub 9PIN NW/KF25 Flange
Product code :17447    Model:N25MMD91
Contact Us

Filter by model

フランジ

電極数

多ピン Micro D-Sub (MIL-DTL-83513) 9PIN NW/KF25 フランジ admin.label.item.catalog_image
Connection parts
Vacuum side 9PIN with insert + cable
Vacuum side 9PIN with insert + cable
Product code :18486
Model:VMMD9K600X/PI
Vacuum side 15PIN with insert + cable
Vacuum side 15PIN with insert + cable
Product code :18487
Model:VMMD15K600X/PI
Vacuum side 21PIN with insert + cable
Vacuum side 21PIN with insert + cable
Product code :18488
Model:VMMD21K600X/PI
Vacuum side 25PIN with insert + cable L=900
Vacuum side 25PIN with insert + cable L=900
Product code :18616
Model:VMMD25K900X/PI
Vacuum side 31PIN with insert + cable
Vacuum side 31PIN with insert + cable
Product code :18490
Model:VMMD31K600X/PI
Vacuum side 37PIN with insert + cable L=900
Vacuum side 37PIN with insert + cable L=900
Product code :18617
Model:VMMD37K900X/PI
Vacuum side Insert + 51PIN with cable
Vacuum side Insert + 51PIN with cable
Product code :18492
Model:VMMD51K600X/PI
Vacuum side insert + 100PIN with cable
Vacuum side insert + 100PIN with cable
Product code :18493
Model:VMMD100K600X/PI
Atmosphere side With plug + cable 9PIN
Atmosphere side With plug + cable 9PIN
Product code :18494
Model:AMMD600X/9PI
Atmosphere side With plug + cable 15PIN
Atmosphere side With plug + cable 15PIN
Product code :18495
Model:AMMD600X/15PI
Atmosphere side With plug + cable 25PIN
Atmosphere side With plug + cable 25PIN
Product code :18497
Model:AMMD600X/25PI
Atmosphere side With plug + cable 100PIN
Atmosphere side With plug + cable 100PIN
Product code :18501
Model:AMMD600X/100PI
