  5. Singlemode With 4 FC vacuum connectors on both sides NW/KF50 flange

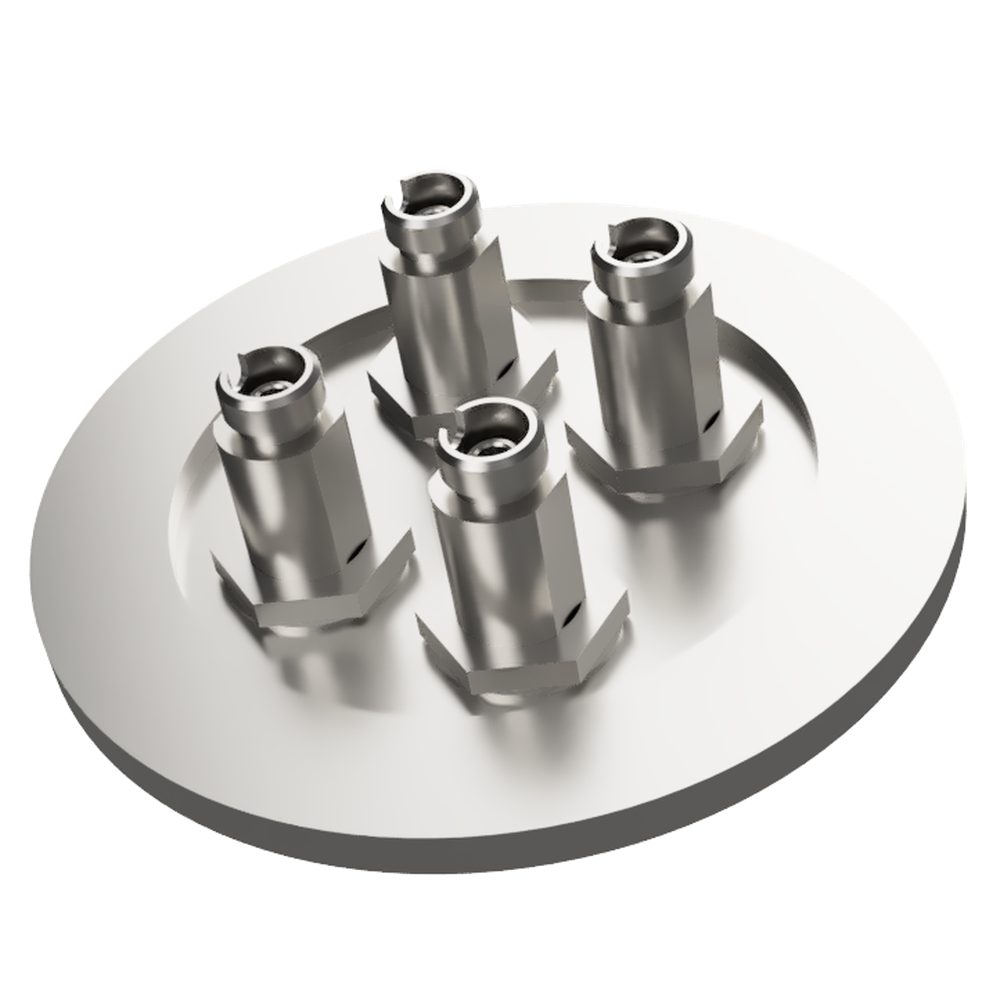

Singlemode With 4 FC vacuum connectors on both sides NW/KF50 flange

シングルモード 両側FC真空コネクタ 4個付き NW/KF50 フランジ

Mouse over the image to enlarge it

シングルモード 両側FC真空コネクタ 4個付き NW/KF50 フランジ
share the productshare the product
Facebook
LINE
Twitter
Product code :15835 Model:N50FS125FF4

FC connector is compatible optical fiber feedthrough.
NW / KF, please choose the best connection flange from the standard of the ICF.
Standard connector is FC, but also supports standards such as APC and PAND.
It is also possible to embed your payment get fiber from customers.

Basic Information
type Optical fiber
Fiber 石英
Wavelength: nm 1300
Transmission loss: dB <-1dB below
Leak rate <5.5x10-9Pa･㎥/sec
Reference-voltage value (MPa) 1
Main materials SUS 304
Maximum temperature 200℃
The lowest temperature -
Insulator Epoxy
Connection type FC/PC
RoHS2 corresponding ○
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 ICF NW/KF Fiber diameter (μm) mode The number of electrode A B C D
Stock & Delivery
front.product.price
front.product.tax_included2
15835
N50FS125FF4
- 50 125/9 Single-mode 4 75 6 17.4 14.2
シングルモード 両側FC真空コネクタ 4個付き NW/KF50 フランジ admin.label.item.size_image
ICF NW/KF Fiber diameter (μm) mode The number of electrode A B C D
- 50 125/9 Single-mode 4 75 6 17.4 14.2
Singlemode With 4 FC vacuum connectors on both sides NW/KF50 flange
Product code :15835    Model:N50FS125FF4
