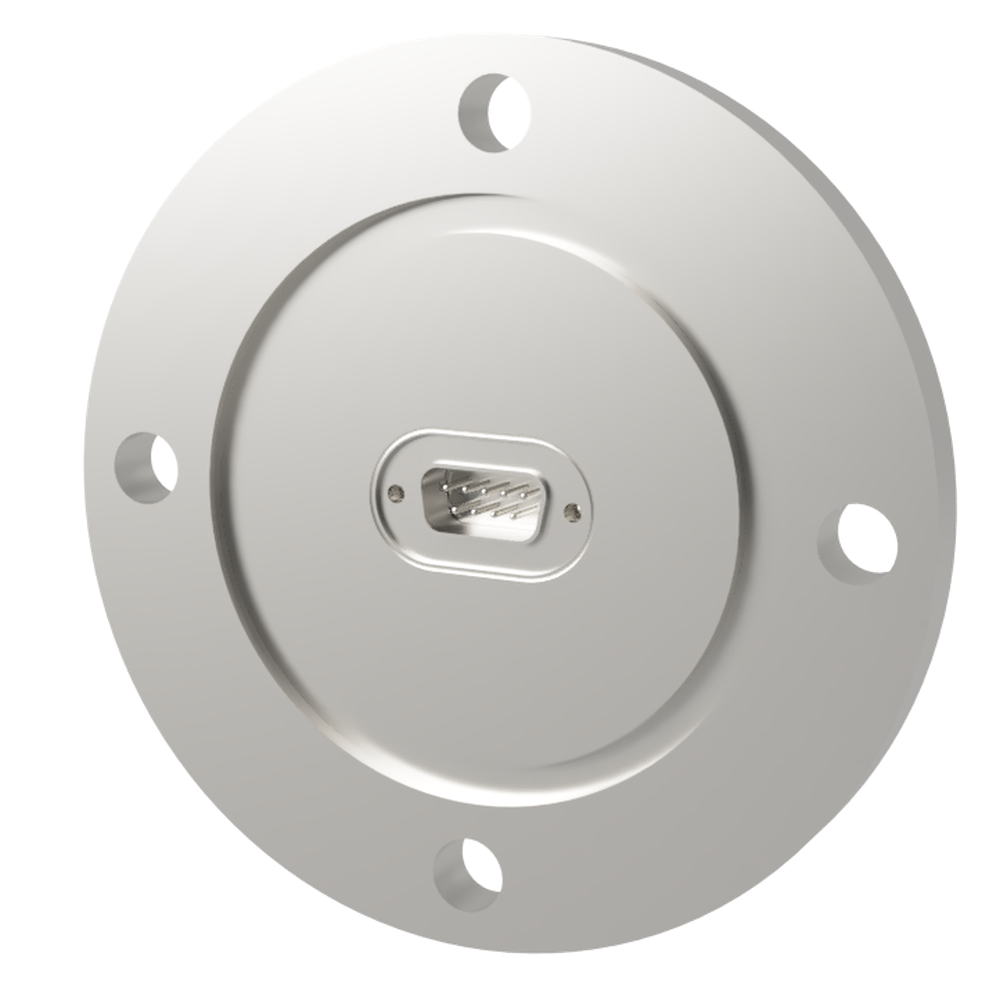

Multi-pin D-Sub 9 PIN VG50 Flange

多ピン D-Sub 9 PIN VG50 フランジ

Mouse over the image to enlarge it

多ピン D-Sub 9 PIN VG50 フランジ
share the productshare the product
Facebook
LINE
Twitter
Product code :11580 Model:G50MD91

▼ Feedthrough Multi-Pin D-Sub (MIL-C-24308)
D-sub terminal mates with MIL-C-24308 standard equivalent
300V 3A compatible

▼ The following types are standardized (List)
Number of PINs: 9, 15, 25, 37, 50
Combination type (ex. 9PINx2 , 9PIN+15PIN)
Flange type (NW/KF, ICF, JIS-VF, JIS-VG)
Panel mount type

▼ Custom-made products are also available.
We also accept special flange custom-ordered panel mountings with different numbers of terminals and combinations of terminals of various types.
Please contact us by clicking the "Inquiry" button on the right side of this page.

※Panel mount type comes with bolt washers and O-rings.

Click here to request precision cleaning.

Basic Information
type D-Sub
Insulation resistance value 10⁹ ohm
Connection type D-Sub(MIL-C-24308)
electrode Kovar ®
Flange material SUS 304
sleeve SUS 304
Insulator Alumina ceramic
Maximum temperature 450℃
The lowest temperature -196℃
Leak rate <1.3x10-10Pa･㎥/sec
Total current/1 terminal 14.6
Electric current / 1 pc. 3 A
Withstand voltage: DC 300 V
RoHS2 corresponding ○
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 Panel mount NW/KF ICF VF VG Bolt Anakei Bolt hole spacing A B D The number of electrode E1 E2
Stock & Delivery
front.product.price
front.product.tax_included2
11580
G50MD91
- - - - 50 - - 120 10 22 9 - -
多ピン D-Sub 9 PIN VG50 フランジ admin.label.item.size_image
Panel mount NW/KF ICF VF VG Bolt Anakei Bolt hole spacing A B D The number of electrode E1 E2
- - - - 50 - - 120 10 22 9 - -
Multi-pin D-Sub 9 PIN VG50 Flange
Product code :11580    Model:G50MD91
Contact Us

Filter by model

フランジ

電極数

多ピン D-Sub 9 PIN VG50 フランジ admin.label.item.catalog_image
Dサブのアセンブリ方法は以下の画像をクリックしてください。
Dサブ_アセンブリ方法
圧着工具の取扱い方法は以下の画像をクリックしてください。
圧着工具の取り扱い方法
D-Sub端子内はストレート結線になっております。
D-Subピン配列
Connection parts
Connecting parts vacuum side D-Sub PEEK® insert 9PIN
Connecting parts vacuum side D-Sub PEEK® insert 9PIN
Product code :13649
Model:VSPI9D
Connecting parts vacuum-side socket contact φ1.0 crimp type
Connecting parts vacuum-side socket contact φ1.0 crimp type
Product code :13358
Model:SVC10D
With the vacuum side Kapton coated cables D-Sub PEEK® insert 9PIN for L = 1000
With the vacuum side Kapton coated cables D-Sub PEEK® insert 9PIN for L = 1000
Product code :14479
Model:VMD9K1000X/PI
Connection parts atmosphere side plug D-Sub 9 for PIN
Connection parts atmosphere side plug D-Sub 9 for PIN
Product code :11816
Model:ASP9D
Connection piece vacuum side Kapton coated ribbon cable 9PIN for L = 1000
Connection piece vacuum side Kapton coated ribbon cable 9PIN for L = 1000
Product code :14474
Model:VMD9K1000/XX
RTMD 25 PIN/37 PIN/50 PIN BOLT/WASHER with Hexagon Socket for 25 PIN/37 PIN/50 PIN 25 pairs
RTMD 25 PIN/37 PIN/50 PIN BOLT/WASHER with Hexagon Socket for 25 PIN/37 PIN/50 PIN 25 pairs
Product code :25566
Model:BW-M5X16LB
