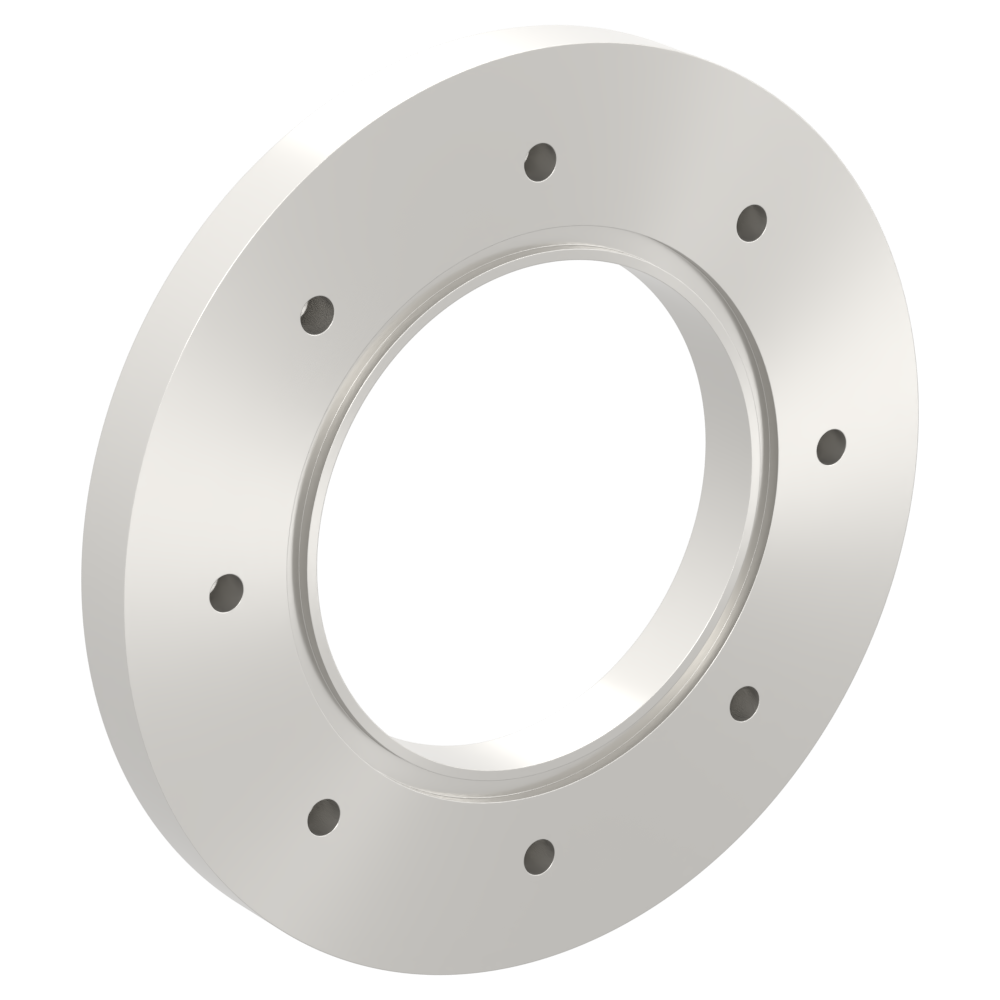

VF125/VG100 Zero length conversion flange

VF125/VG100 ゼロレングス変換フランジ

Mouse over the image to enlarge it

VF125/VG100 ゼロレングス変換フランジ
share the productshare the product
Product code :26679 Model:VF125/VG100ZLR

▼JIS VF-VG Zero length conversion flange
For pipe bore diameter adjustment
A single flange can be used for conversion, saving space for installation.
JIS flange fastening method: bolt-tightening
Bolt holes are tapped (threaded) on both the large and small bore sides.

▼ The following types are standardized (List)
Large diameter side: 40, 50, 65, 80, 100, 125, 150
Small bore side: 25, 40, 50, 65, 80, 100, 125
Combination of large bore VF and small bore VG
Combination of large bore VG and small bore VF
Double-sided VF, Double-sided VG Material: SUS304
Conversion flange with ICF (VF, VG ) and various standard conversion nipples are also available.

▼Others
We also offer various types of piping such as cross pipes and adapters in a wide variety of sizes.
We can also provide additional processing and flange size modifications to our products. Please contact us by clicking the "Inquiry" button on the right side of the page.

Precision cleaning services are available here.

Basic Information
Flange material SUS 304
RoHS2 corresponding
Inquiry for this product
share the productshare the product
front.product.product_code
Model
VF VG A B T P.C.D Hole diameter(depth) Number of holes
Stock & Delivery
front.product.price
front.product.tax_included2
125 100 210 115 17 Large caliber:185 ___Small cal Large diameter bolt: M10(12)_ Large diameter bolt: 8_Small d
VF125/VG100 ゼロレングス変換フランジ admin.label.item.size_image
VF VG A B T P.C.D Hole diameter(depth) Number of holes
125 100 210 115 17 Large caliber:185 ___Small cal Large diameter bolt: M10(12)_ Large diameter bolt: 8_Small d
Product code :26679    Model:VF125/VG100ZLR
