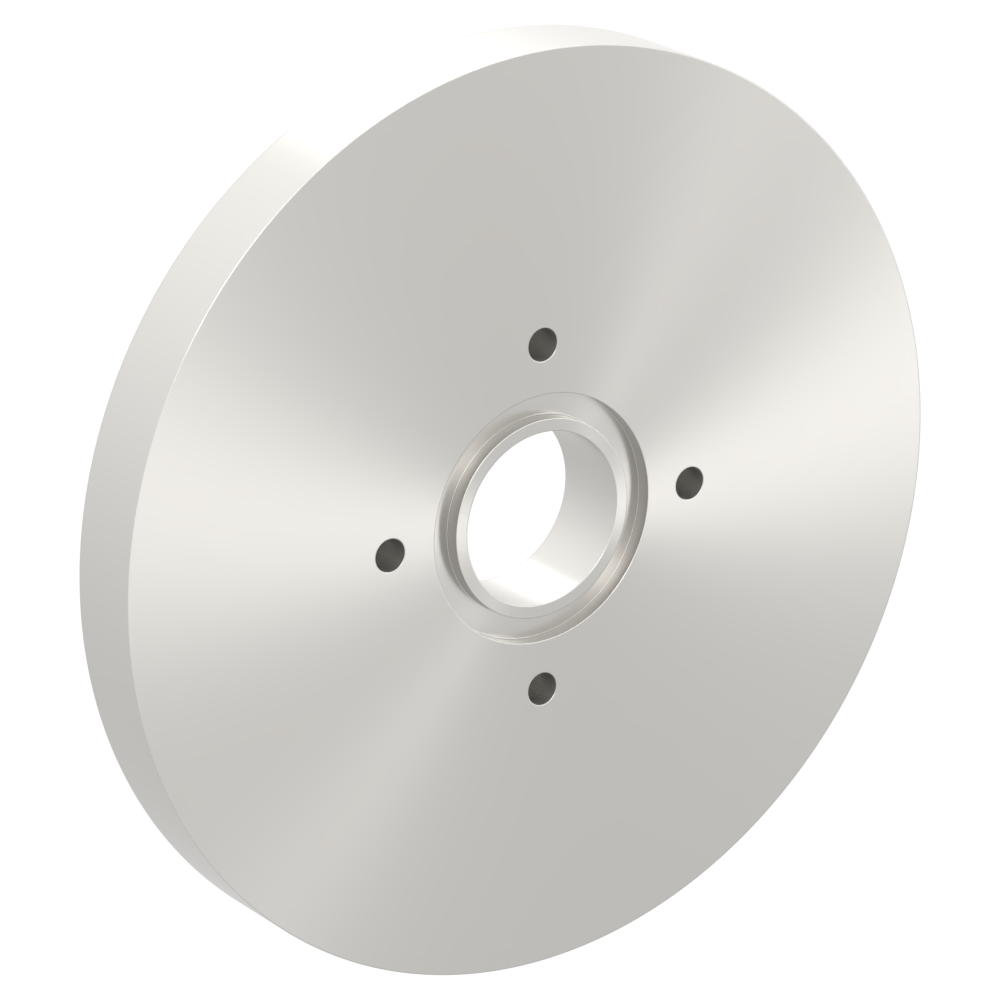

VF100/VG25 Zero length conversion flange
▼JIS VF-VG Zero length conversion flange
For pipe bore diameter adjustment
A single flange can be used for conversion, saving space for installation.
JIS flange fastening method: bolt-tightening
Bolt holes are tapped (threaded) on both the large and small bore sides.
▼ The following types are standardized (List)
Large diameter side: 40, 50, 65, 80, 100, 125, 150
Small bore side: 25, 40, 50, 65, 80, 100, 125
Combination of large bore VF and small bore VG
Combination of large bore VG and small bore VF
Double-sided VF, Double-sided VG
Material: SUS304
Conversion flange with ICF (VF, VG ) and various standard conversion nipples are also available.
▼Others
We also offer various types of piping such as cross pipes and adapters in a wide variety of sizes.
We can also provide additional processing and flange size modifications to our products. Please contact us by clicking the "Inquiry" button on the right side of the page.
Precision cleaning services are available here.
| Basic Information | |
|---|---|
| Flange material | SUS 304 |
| RoHS2 corresponding | ○ |
front.product.product_code Model |
VF | VG | A | B | T | P.C.D | Hole diameter(depth) | Number of holes | Stock & Delivery |
front.product.price front.product.tax_included2 |
|---|---|---|---|---|---|---|---|---|---|---|
| 100 | 25 | 185 | 35 | 17 | Large caliber:160 ___Small cal | 大口径ボルト:M10(10)＿小口径ボルト:M8(10) | 大口径ボルト:8＿小口径ボルト:4 | |||
| VF | VG | A | B | T | P.C.D | Hole diameter(depth) | Number of holes |
|---|---|---|---|---|---|---|---|
| 100 | 25 | 185 | 35 | 17 | Large caliber:160 ___Small cal | 大口径ボルト:M10(10)＿小口径ボルト:M8(10) | 大口径ボルト:8＿小口径ボルト:4 |
