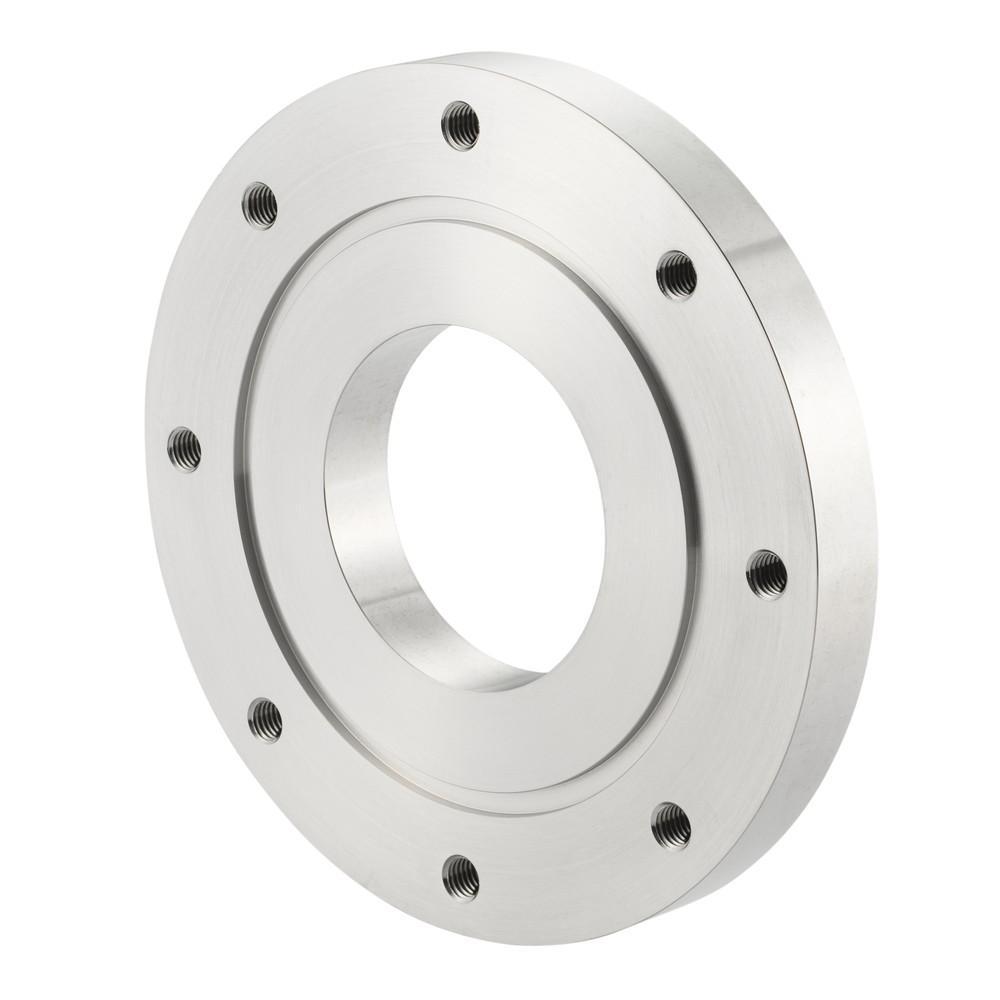

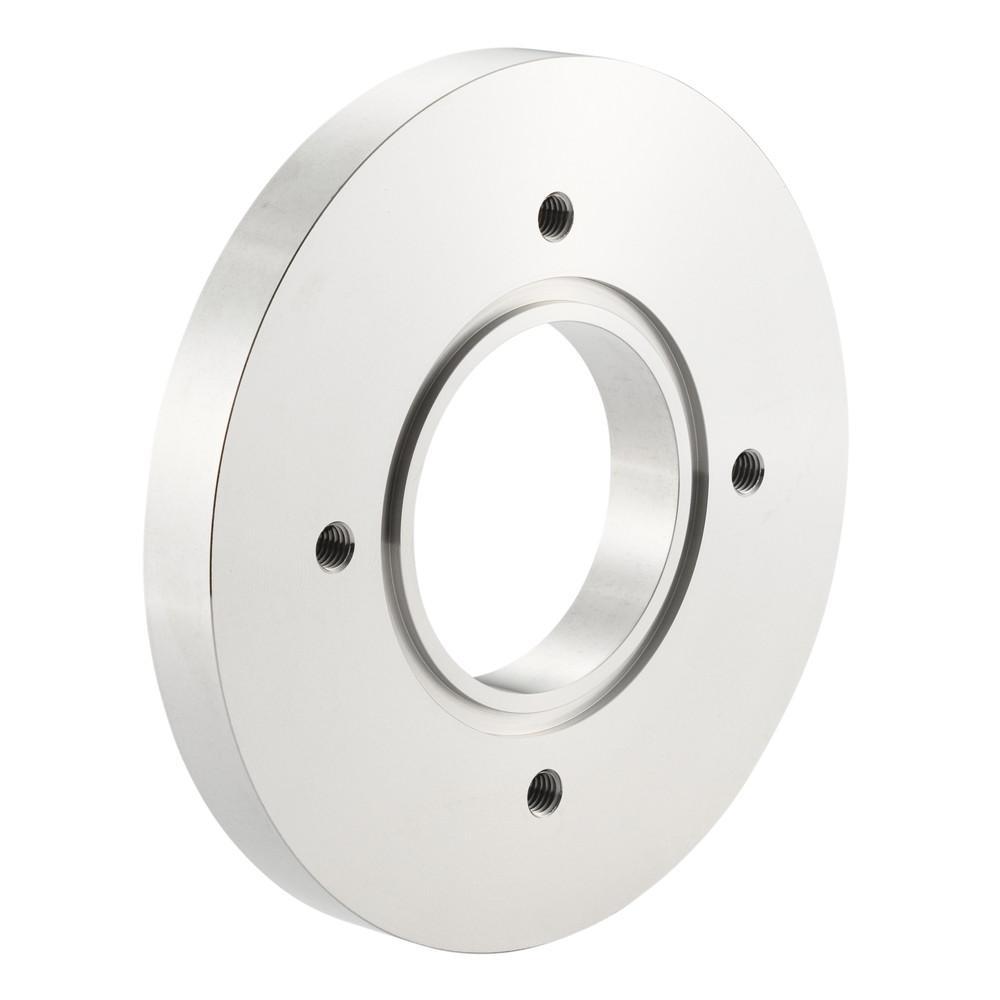

VG100/65 zero length conversion flange

VG100/65ゼロレングス変換フランジ
VG100/65ゼロレングス変換フランジ

Mouse over the image to enlarge it

VG100/65ゼロレングス変換フランジ
VG100/65ゼロレングス変換フランジ
share the productshare the product
Facebook
LINE
Twitter
Product code :26645 Model:VG100ZLR65

Suitable for connection of JIS flanges of different sizes.
Four types of combinations are available: VF / VF, VG / VG, VF / VG, and VG / VF.
We can also provide combinations other than the standard products quickly.

Necessary bolts and washers for connection are included in the product.

Basic Information
Flange material SUS 304
RoHS2 corresponding ○
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 VG A B T P.C.D Hole diameter(depth) Number of holes
Stock & Delivery
front.product.price
front.product.tax_included2
26645
VG100ZLR65
100 / 65 185 77 20 Large caliber:160 ___Small cal Large diameter bolt: M10(12)_ 大口径ボルト:8＿小口径ボルト:4
VG100/65ゼロレングス変換フランジ admin.label.item.size_image
VG A B T P.C.D Hole diameter(depth) Number of holes
100 185 77 20 Large caliber:160 ___Small cal Large diameter bolt: M10(12)_ 大口径ボルト:8＿小口径ボルト:4
VG100/65 zero length conversion flange
Product code :26645    Model:VG100ZLR65
