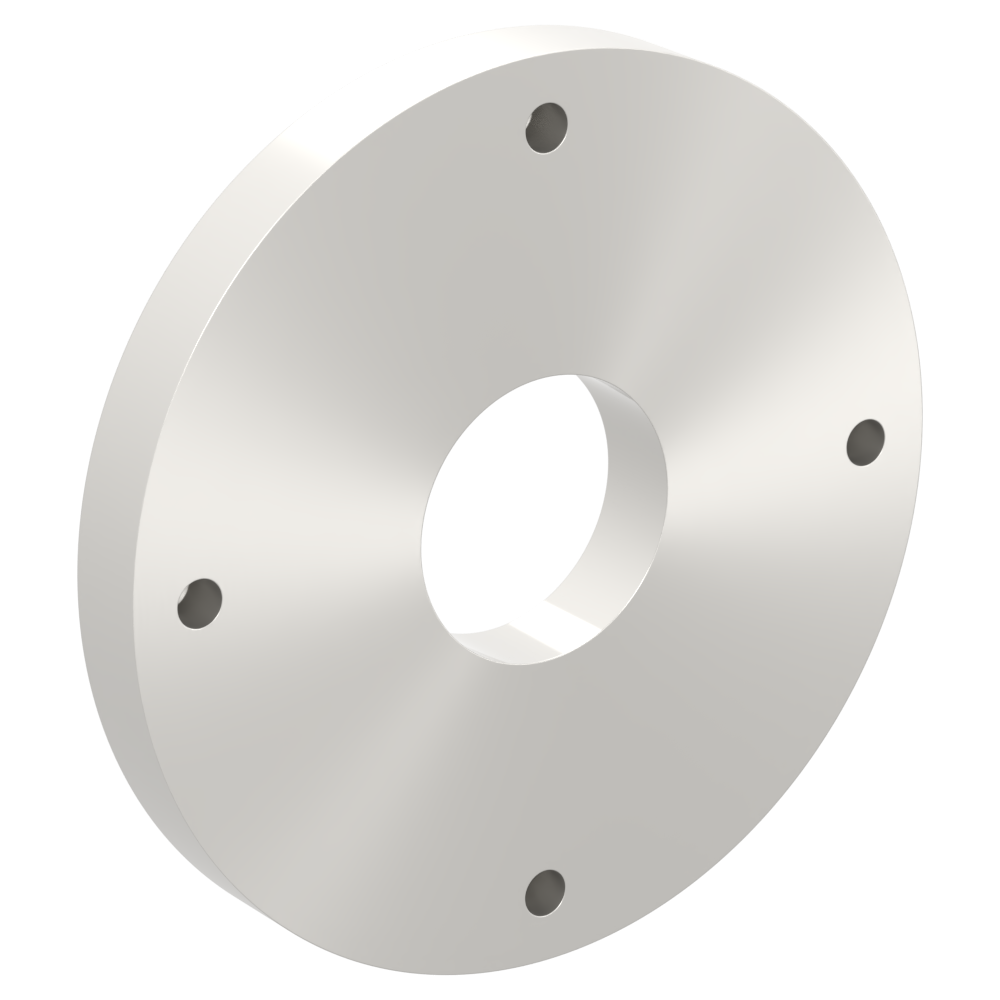

VF80/40 Zero length conversion flange

VF80/40 ゼロレングス変換フランジ

Mouse over the image to enlarge it

VF80/40 ゼロレングス変換フランジ
share the productshare the product
Facebook
LINE
Twitter
Product code :26612 Model:VF80ZLR40

▼JIS VF zero length conversion flange
Double-sided VF flange
For pipe bore adjustment
・A space-saving installation is possible because conversion can be done with a single flange.
JIS flange fastening method: Bolt tightening
Bolt holes are tapped (threaded) on both the large and small bore sides.

▼ The following types are standardized (List)
Large diameter side: 40, 50, 65, 80, 100, 125, 150
Small diameter side: 25,40,50,65,80,100,125
Combination: Double-sided VF, Double-sided VG, VF-VG, VG-VF Material: SUS304
Conversion flanges with ICF and Standard conversion nipples are also available.

▼Others
We also offer various types of piping such as cross pipes and adapters in a wide variety of sizes.
We can also provide additional processing and flange size modifications to our products. Please contact us by clicking the "Inquiry" button on the right side of the page.

For precision cleaning requests, please click here.

Basic Information
Flange material SUS 304
RoHS2 corresponding ○
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 VF A B T P.C.D Hole diameter(depth) Number of holes
Stock & Delivery
front.product.price
front.product.tax_included2
26612
VF80ZLR40
80 / 40 160 50 17 Large caliber:135 ___Small cal 大口径ボルト:M10(10)＿小口径ボルト:M8(10) Large-diameter bolt: 4_ small-
VF80/40 ゼロレングス変換フランジ admin.label.item.size_image
VF A B T P.C.D Hole diameter(depth) Number of holes
80 160 50 17 Large caliber:135 ___Small cal 大口径ボルト:M10(10)＿小口径ボルト:M8(10) Large-diameter bolt: 4_ small-
VF80/40 Zero length conversion flange
Product code :26612    Model:VF80ZLR40
