- VG500 Flange with hole

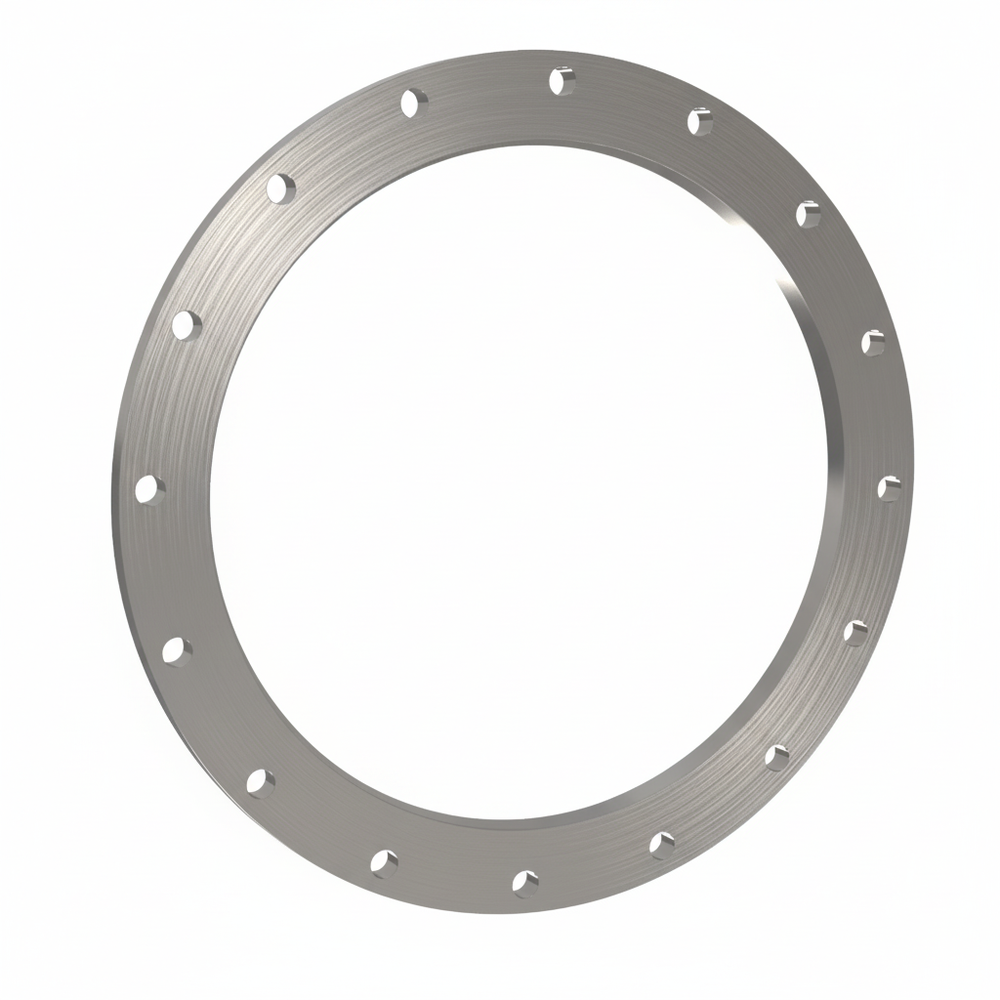

VG500 Flange with hole
Use elastomeric O-ring, pinching face to face with two flanges (grooved VF flange and VG grooved flange) is a way to secure airtightness by tightening a bolt from the outside.
We have standardized up to VF / VG10-VF / VG550.
Each, stocks blank flange, and a perforated flange for standard pipe connection.
In addition, as a face-to-face in the VF for the connection of pipes has become a (no groove), (dovetail groove) on both sides VG You are also available flange.
O It is also possible to be prepared by the ring there is a groove groove.
| Basic Information | |
|---|---|
| Flange material | SUS 304 |
| RoHS2 corresponding | ○ |
front.product.product_code Model |
VG | A | B | C | T | T1 | T2 | G1 | G2 | D | P.C.D | Hole diameter(depth) | Number of holes | Apply pipe outer diameter | O-ring standard | Fixed/Rotatable | Fixed/rotating | Stock & Delivery |
front.product.price front.product.tax_included2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 500 | 625 | 504 | 510 | 22 | 11 | 7 | 554 | 530 | 7 | 585 | φ19 | 16 | 508 | V530 | pierced | fix |
When out of stock
30 Business Days
|
171,100JPY
(with tax 188,210JPY)
|
| VG | A | B | C | T | T1 | T2 | G1 | G2 | D | P.C.D | Hole diameter(depth) | Number of holes | Apply pipe outer diameter | O-ring standard | Fixed/Rotatable | Fixed/rotating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 500 | 625 | 504 | 510 | 22 | 11 | 7 | 554 | 530 | 7 | 585 | φ19 | 16 | 508 | V530 | pierced | fix |
