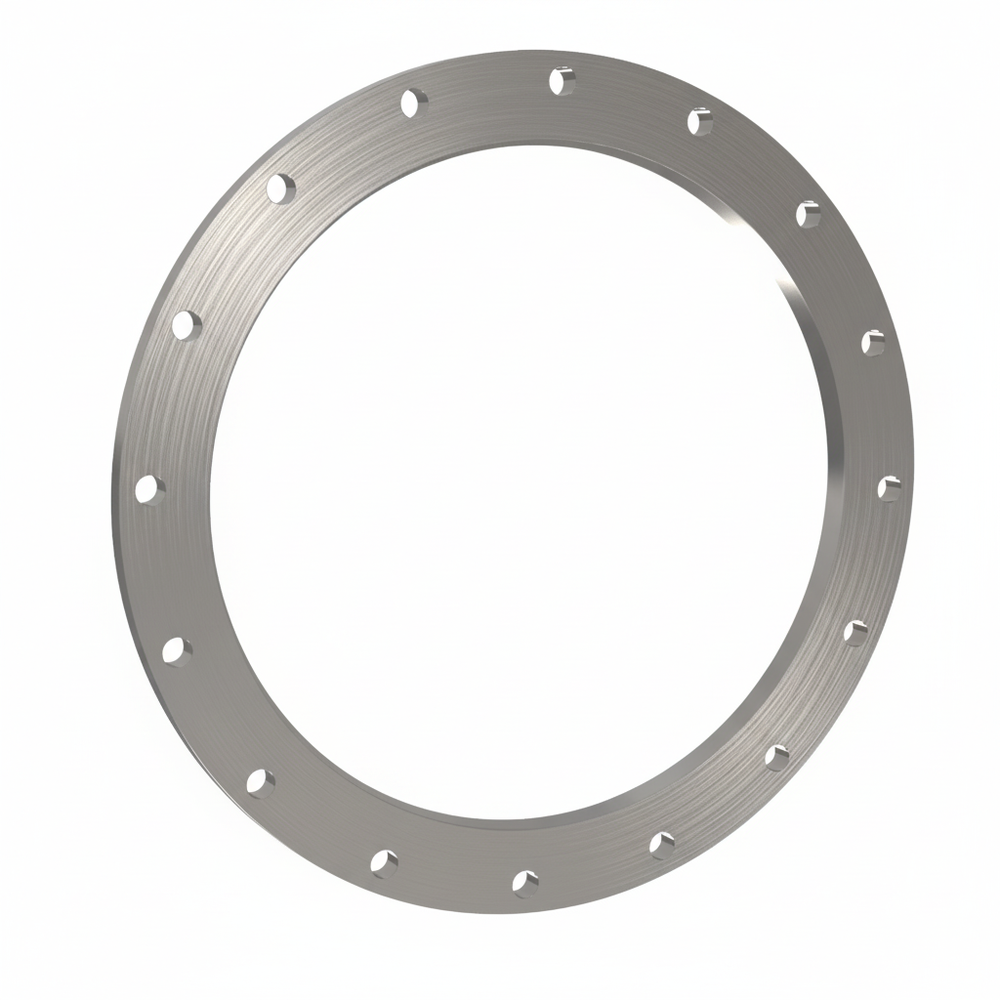

VG450 Flange with hole

VG450 穴あきフランジ

Mouse over the image to enlarge it

VG450 穴あきフランジ
share the productshare the product
Facebook
LINE
Twitter
Product code :22060 Model:VG450B450A

Use elastomeric O-ring, pinching face to face with two flanges (grooved VF flange and VG grooved flange) is a way to secure airtightness by tightening a bolt from the outside.
We have standardized up to VF / VG10-VF / VG550.
Each, stocks blank flange, and a perforated flange for standard pipe connection.
In addition, as a face-to-face in the VF for the connection of pipes has become a (no groove), (dovetail groove) on both sides VG You are also available flange.
O It is also possible to be prepared by the ring there is a groove groove.

Basic Information
Flange material SUS 304
RoHS2 corresponding ○
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 VG A B C T T1 T2 G1 G2 D P.C.D Hole diameter(depth) Number of holes Apply pipe outer diameter O-ring standard Fixed/Rotatable Fixed/rotating
Stock & Delivery
front.product.price
front.product.tax_included2
22060
VG450B450A
450 575 452 460 20 10 6 504 480 7 535 φ19 16 457.2 V480 pierced fix
VG450 穴あきフランジ admin.label.item.size_image
VG A B C T T1 T2 G1 G2 D P.C.D Hole diameter(depth) Number of holes Apply pipe outer diameter O-ring standard Fixed/Rotatable Fixed/rotating
450 575 452 460 20 10 6 504 480 7 535 φ19 16 457.2 V480 pierced fix
VG450 Flange with hole
Product code :22060    Model:VG450B450A
Contact Us

Filter by model

フランジ

ブランク・穴あき

固定・回転

VG450 穴あきフランジ admin.label.item.catalog_image
Related products
For VF/VG400-450 Hexagon socket BOLT/NUT/WASHER 25 pairs
For VF/VG400-450 Hexagon socket BOLT/NUT/WASHER 25 pairs
Product code :25561
Model:BNW-M16X65LB
V480 O-ring for Viton® VF/VG450
V480 O-ring for Viton® VF/VG450
Product code :22065
Model:V480
