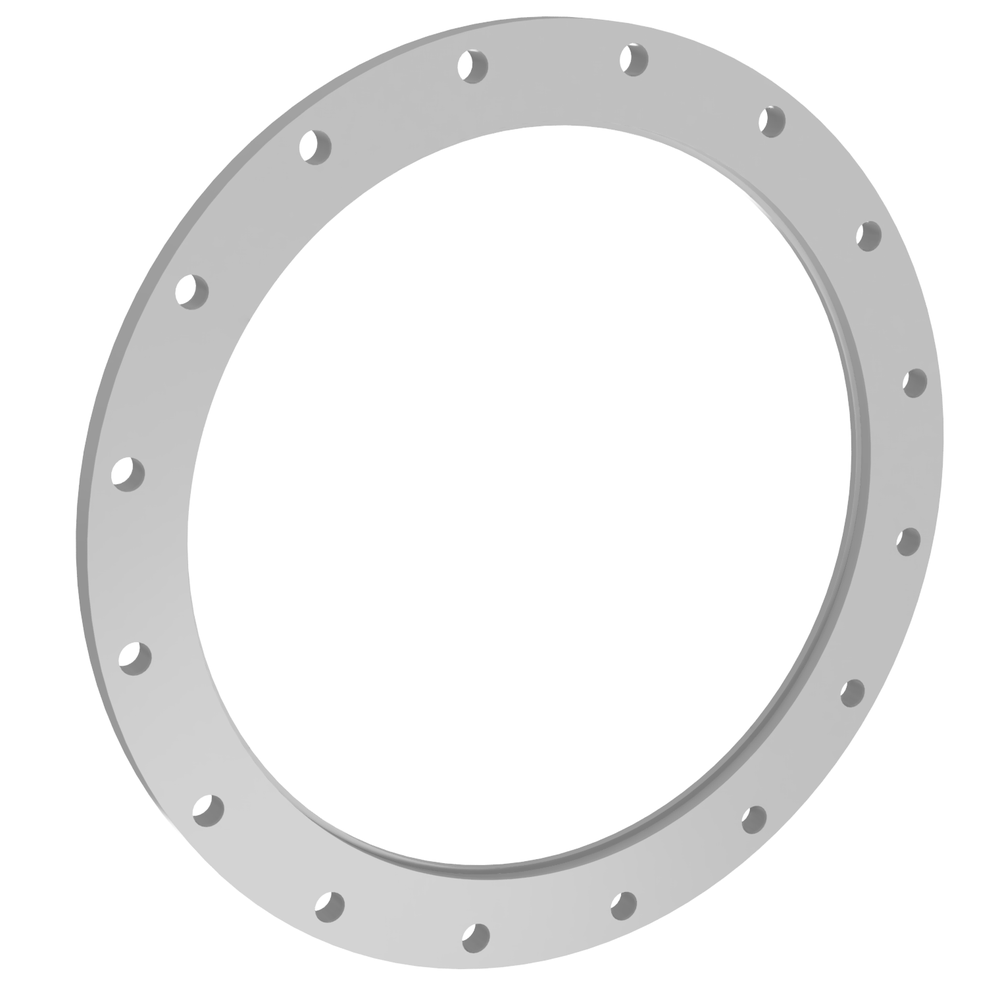

VF550 Flange with hole

VF550 穴あきフランジ

Mouse over the image to enlarge it

VF550 穴あきフランジ
share the productshare the product
Facebook
LINE
Twitter
Product code :22052 Model:VF550B550A

Use elastomeric O-ring, pinching face to face with two flanges (grooved VF flange and VG grooved flange) is a way to secure airtightness by tightening a bolt from the outside.
We have standardized up to VF / VG10-VF / VG550.
Each, stocks blank flange, and a perforated flange for standard pipe connection.
In addition, as a face-to-face in the VF for the connection of pipes has become a (no groove), (dovetail groove) on both sides VG You are also available flange.
O It is also possible to be prepared by the ring there is a groove groove.

Basic Information
RoHS2 corresponding ○
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 VF A B C T T1 T2 P.C.D Hole diameter(depth) Number of holes Apply pipe outer diameter O-ring standard Fixed/Rotatable Fixed/rotating Flange material
Stock & Delivery
front.product.price
front.product.tax_included2
22052
VF550B550A
550 680 555 560 24 12 7 640 φ19 16 558.8 V585 pierced fix SUS 304
VF550 穴あきフランジ admin.label.item.size_image
VF A B C T T1 T2 P.C.D Hole diameter(depth) Number of holes Apply pipe outer diameter O-ring standard Fixed/Rotatable Fixed/rotating Flange material
550 680 555 560 24 12 7 640 φ19 16 558.8 V585 pierced fix SUS 304
VF550 Flange with hole
Product code :22052    Model:VF550B550A
Contact Us

Filter by model

フランジ

ブランク・穴あき

固定・回転

フランジ材質

VF550 穴あきフランジ admin.label.item.catalog_image
Related products
For VF/VG500-550 Hexagon socket BOLT/NUT/WASHER 25 pairs
For VF/VG500-550 Hexagon socket BOLT/NUT/WASHER 25 pairs
Product code :25562
Model:BNW-M16X70LB
V585 O-ring for Viton® VF/VG550
V585 O-ring for Viton® VF/VG550
Product code :22067
Model:V585
