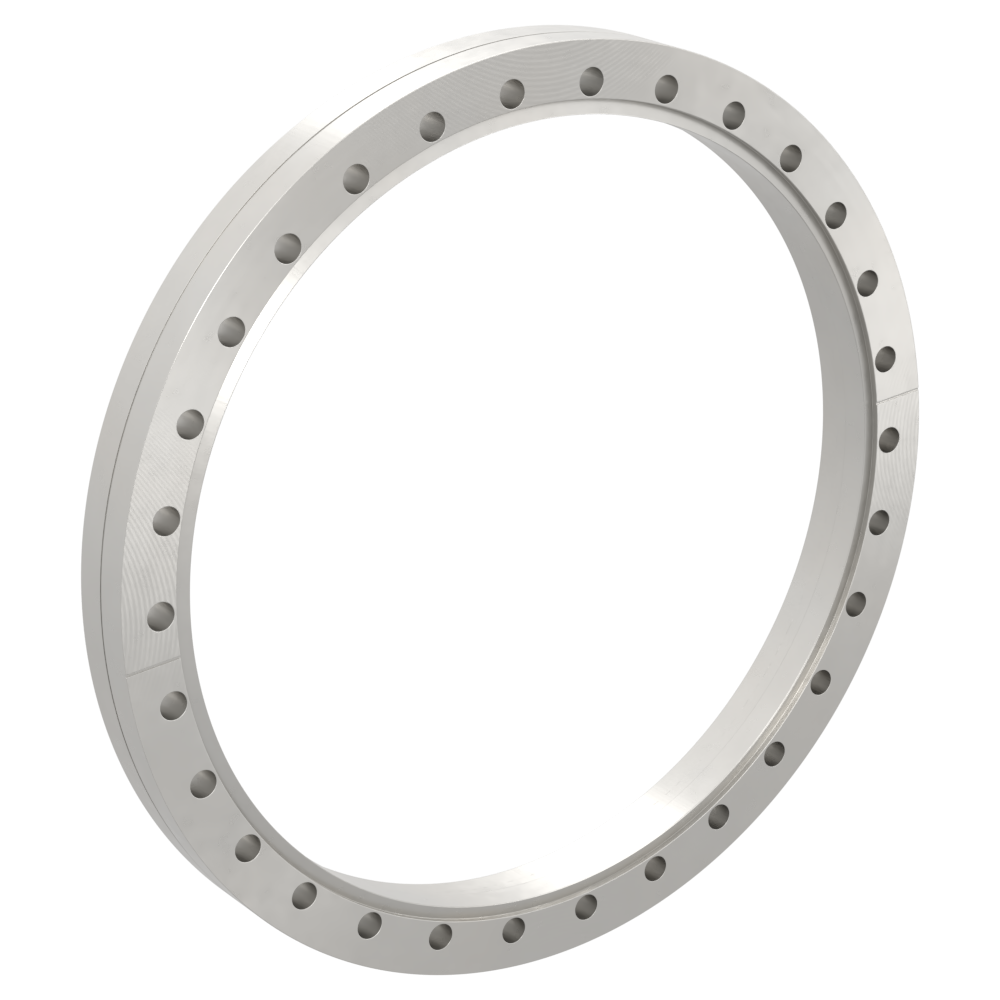

ICF356 Rotation 305.3 Flange with hole
It is an ultra-high vacuum compatible standard flange.
And subjecting the sealed portion to the knife edge shape, installed between the flange facing the metal gasket, it jamming with a knife edge portion, is the principle of securing the airtightness by tightening a bolt from the outside.
Up to ICF 34 ~ ICF 253 will have been standardized.
In addition there is also the handling of the ICF 305 or more sizes.
The fixed flange and the rotating flange are available, respectively, blank flange, and stocks perforated flange for standard pipe connection, drilled hole, the tap hole type.
Zero-length flanges of the size conversion, both sides edge flanges of the same size are also available.
Material SUS316L are also available.
| Basic Information | |
|---|---|
| Fixed/Rotatable | pierced |
| Fixed/rotating | rotation |
| RoHS2 corresponding | ○ |
front.product.product_code Model |
ICF | Dimensions type | A | B | C | L | T | T1 | P.C.D | Hole diameter(depth) | Number of holes | Apply pipe outer diameter | Thru or Tap | Flange material | Stock & Delivery |
front.product.price front.product.tax_included2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 356 | B | 356 | 301.8 | 305.3 | - | 28.5 | 12.7 | 325.4 | φ10.5 | 30 | 305 | Through | SUS 304 | |||
| ICF | Dimensions type | A | B | C | L | T | T1 | P.C.D | Hole diameter(depth) | Number of holes | Apply pipe outer diameter | Thru or Tap | Flange material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 356 | B | 356 | 301.8 | 305.3 | - | 28.5 | 12.7 | 325.4 | φ10.5 | 30 | 305 | Through | SUS 304 |
