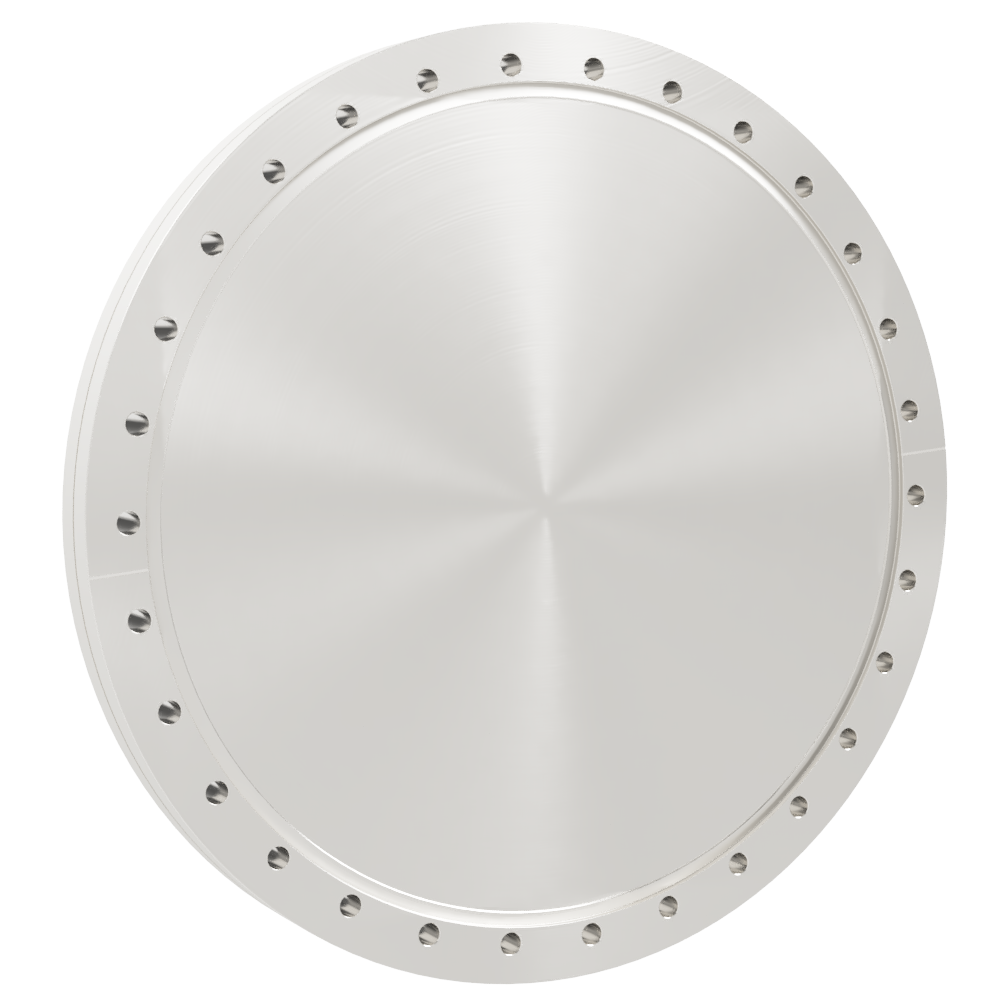

ICF356 Fixed Blank Tap Flange
▼ICF Blank flange
Blank flange for sealing and processing
Knife-edge shaped seals and gaskets for ultra-high vacuum
Fastening : Bolt tightening
Bolt holes are available as through-hole or tapped hole (threading)
▼The following products are standardized (List)
Flange size (ICF): 34, 54, 70, 86, 114, 117, 152, 203, 253, 305, 356
Material: SUS304, SUS316L, SUS316LN, BeCu
Blank, rotating, and double-sided edge flanges are standardized
Flanges with holes are also available.
Zero length conversion flanges are available here
▼about BeCu products
0.2% BeCu + Ni phosphorus passivation treatment
Recommended for extremely high vacuum and ultra high vacuum
High thermal conductivity and low thermal radiation
Reduces outgas and vacuum evacuation time
Baking heat resistance: 300°C
Can use ordinary copper gaskets
After opening the package, store the product in a desiccator. And ｗe recommend baking at 200°C for 5 hours before use.
▼Others
We also offer a wide range of other types of flanges, including those with perforated pipes (list), tees, crosses, etc. various types of piping are also available in a wide variety of sizes.
We can also provide additional processing for products and products made of different materials. Please contact us by clicking the "Inquiry" button on the right side of the page.
For precision cleaning requests, click here.
| Basic Information | |
|---|---|
| Fixed/Rotatable | blank |
| Fixed/rotating | fix |
| RoHS2 corresponding | ○ |
front.product.product_code Model |
ICF | A | T | P.C.D | Hole diameter(depth) | Number of holes | Flange material | Thru or Tap | Stock & Delivery |
front.product.price front.product.tax_included2 |
|---|---|---|---|---|---|---|---|---|---|---|
| 356 | 356 | 28.5 | 325.4 | M10 | 30 | SUS 304 | tapped |
When out of stock
Answered later
|
117,100JPY
(with tax 128,810JPY)
|
| ICF | A | T | P.C.D | Hole diameter(depth) | Number of holes | Flange material | Thru or Tap |
|---|---|---|---|---|---|---|---|
| 356 | 356 | 28.5 | 325.4 | M10 | 30 | SUS 304 | tapped |
