  1. Cosmotec for Vacuum Components
  2. Feedthrough
  3. Coaxial
  4. BNC type
  5. Coaxial 5kV-BNC-R with 4 ICF70 flanges

Coaxial 5kV-BNC-R with 4 ICF70 flanges

同軸 5kV-BNC-R 4個付き ICF70 フランジ

Mouse over the image to enlarge it

同軸 5kV-BNC-R 4個付き ICF70 フランジ
share the productshare the product
Facebook
LINE
Twitter
Product code :10656 Model:C705BR4

Bayonet Naval Connectors
▼ Feedthrough Coaxial BNC Ground Shield One Side Plug Mating
1kV 3A compatible
For 50Ω transmission
Ground and continuity
Electrode on vacuum side, BNC connector connection on atmospheric side only
High voltage 5kV
Connection flanges standardized as NW/KF, ICF, JIS-VF, JIS-VG

▼ In addition, the following types are standardized
Floating shield
Plug mating on both sides
1kV electrode tip M2 thread

▼ Custom-made products are also available.
We can also accept a change in the number of poles, a combination of multiple types of terminals, and mounting on a special flange.
Please contact us by clicking the "Inquiry" button on the right side of this page.

Precision cleaning request.

Basic Information
type BNC
Connection type The atmosphere-side plug-fitti
electrode Kovar ®
Flange material SUS 304
sleeve Kovar ®
Insulator Alumina ceramic
Maximum temperature 450℃
The lowest temperature -196℃
Leak rate <1.3x10-10Pa･㎥/sec
Classification Flanged terminal
type Ground shield
Impedance 50 Ω
frequency 100 MHz
Insulation resistance value 10⁹ ohm
Withstand voltage: DC 5 kV
Electric current / 1 pc. 3 A
RoHS2 corresponding ○
156,200 JPY (with tax 171,820JPY)
stock
2
1-2 Business Days
When out of stock
Answered later
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 NW/KF ICF VF VG A B C D P.C.D The number of electrode
Stock & Delivery
front.product.price
front.product.tax_included2
10656
C705BR4
- 70 - - 70 12.7 22 28 24 4
stock
2 1-2 Business Days
When out of stock
Answered later
156,200JPY (with tax 171,820JPY)

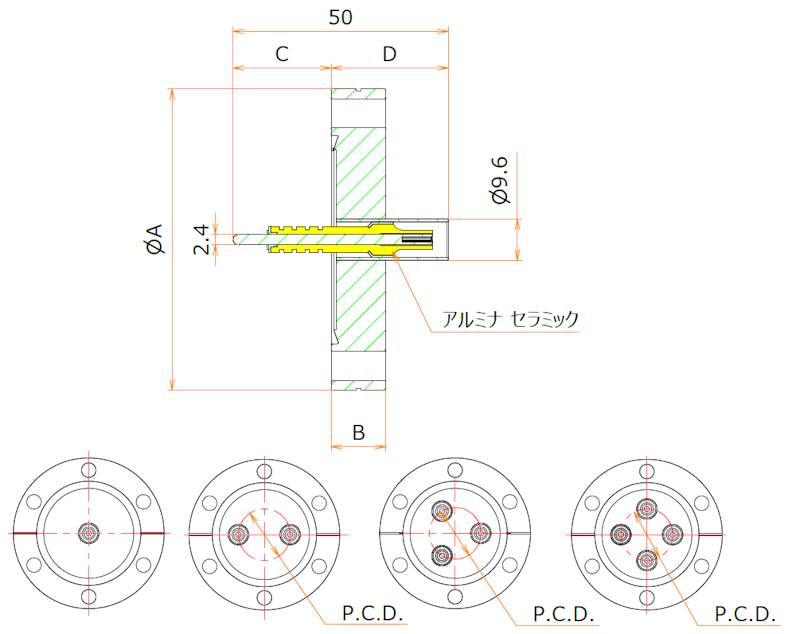

同軸 5kV-BNC-R 4個付き ICF70 フランジ admin.label.item.size_image
NW/KF ICF VF VG A B C D P.C.D The number of electrode
- 70 - - 70 12.7 22 28 24 4
Coaxial 5kV-BNC-R with 4 ICF70 flanges
Product code :10656    Model:C705BR4
156,200JPY (with tax 171,820JPY)
Contact Us

Filter by model

フランジ

電極数

同軸 5kV-BNC-R 4個付き ICF70 フランジ admin.label.item.catalog_image
グランド及びフローティングタイプの違いについては以下を参照ください。
https://www.cosmotec-co.jp/info/case/1483/
