  1. Cosmotec for Vacuum Components
  2. Feedthrough
  3. Coaxial
  4. BNC type
  5. Coaxial 5kV-BNC-R with 1 ICF70 flange

Coaxial 5kV-BNC-R with 1 ICF70 flange

同軸 5kV-BNC-R 1個付き ICF70 フランジ

Mouse over the image to enlarge it

同軸 5kV-BNC-R 1個付き ICF70 フランジ
share the productshare the product
Facebook
LINE
Twitter
Product code :10653 Model:C705BR1

Bayonet Naval Connectors
▼ Feedthrough Coaxial BNC Ground Shield One Side Plug Mating
1kV 3A compatible
For 50Ω transmission
Ground and continuity
Electrode on vacuum side, BNC connector connection on atmospheric side only
High voltage 5kV
Connection flanges standardized as NW/KF, ICF, JIS-VF, JIS-VG

▼ In addition, the following types are standardized
Floating shield
Plug mating on both sides
1kV electrode tip M2 thread

▼ Custom-made products are also available.
We can also accept a change in the number of poles, a combination of multiple types of terminals, and mounting on a special flange.
Please contact us by clicking the "Inquiry" button on the right side of this page.

Precision cleaning request.

Basic Information
type BNC
Connection type The atmosphere-side plug-fitti
electrode Kovar ®
Flange material SUS 304
sleeve Kovar ®
Insulator Alumina ceramic
Maximum temperature 450℃
The lowest temperature -196℃
Leak rate <1.3x10-10Pa･㎥/sec
Classification Flanged terminal
type Ground shield
Impedance 50 Ω
frequency 100 MHz
Insulation resistance value 10⁹ ohm
Withstand voltage: DC 5 kV
Electric current / 1 pc. 3 A
RoHS2 corresponding ○
46,000 JPY (with tax 50,600JPY)
stock
1
1-2 Business Days
When out of stock
Answered later
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 NW/KF ICF VF VG A B C D P.C.D The number of electrode
Stock & Delivery
front.product.price
front.product.tax_included2
10653
C705BR1

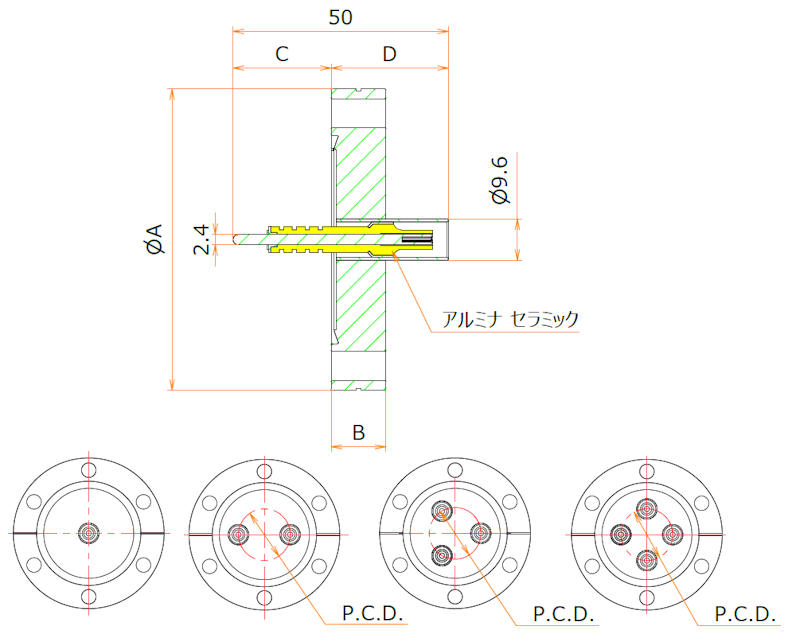

- 70 - - 70 12.7 22 28 - 1
stock
1 1-2 Business Days
When out of stock
Answered later
46,000JPY (with tax 50,600JPY)
同軸 5kV-BNC-R 1個付き ICF70 フランジ admin.label.item.size_image
NW/KF ICF VF VG A B C D P.C.D The number of electrode
- 70 - - 70 12.7 22 28 - 1
Coaxial 5kV-BNC-R with 1 ICF70 flange
Product code :10653    Model:C705BR1
46,000JPY (with tax 50,600JPY)
Contact Us

Filter by model

フランジ

電極数

同軸 5kV-BNC-R 1個付き ICF70 フランジ admin.label.item.catalog_image
グランド及びフローティングタイプの違いについては以下を参照ください。
https://www.cosmotec-co.jp/info/case/1483/
Connection parts
Push-on type 10 pieces for connecting parts vacuum side socket contacts φ2.4
Push-on type 10 pieces for connecting parts vacuum side socket contacts φ2.4
Product code :10152
Model:SVC24S
17,700JPY (with tax 19,470JPY)
Vacuum side socket contact crimp type Fai2.4 1 pcs
Vacuum side socket contact crimp type Fai2.4 1 pcs
Product code :14427
Model:SVC24CU
4,700JPY (with tax 5,170JPY)
For connecting parts atmosphere side plug BNC-5kV
For connecting parts atmosphere side plug BNC-5kV
Product code :10001
Model:ASP-BNC5KV
4,800JPY (with tax 5,280JPY)
Connection piece vacuum side Kapton coated cables AWG # for 26 coaxial L = 1000
Connection piece vacuum side Kapton coated cables AWG # for 26 coaxial L = 1000
Product code :14428
Model:VCK1000/XX
12,100JPY (with tax 13,310JPY)
Connection piece vacuum side PEEK® sheathed cable AWG # 28 coaxial for L = 1000
Connection piece vacuum side PEEK® sheathed cable AWG # 28 coaxial for L = 1000
Product code :14429
Model:VCP1000/XX
3,900JPY (with tax 4,290JPY)
Related products
Hexagon socket BOLT/NUT/WASHER for ICF70 25 pairs
Hexagon socket BOLT/NUT/WASHER for ICF70 25 pairs
Product code :25546
Model:BNW-M6X35LB
2,200JPY (with tax 2,420JPY)
ICF70 gasket, oxygen-free copper, 5 pieces
ICF70 gasket, oxygen-free copper, 5 pieces
Product code :20086
Model:ICF70GCU
3,300JPY (with tax 3,630JPY)
ICF70 Gasket Viton® 5pcs
ICF70 Gasket Viton® 5pcs
Product code :20089
Model:ICF70GV
11,100JPY (with tax 12,210JPY)
Gasket holder 2 pieces
Gasket holder 2 pieces
Product code :21147
Model:GH
7,900JPY (with tax 8,690JPY)
Connection piece vacuum side Kapton coated cables AWG # for 26 coaxial L = 1000
Connection piece vacuum side Kapton coated cables AWG # for 26 coaxial L = 1000
Product code :14428
Model:VCK1000/XX
12,100JPY (with tax 13,310JPY)
Connection piece vacuum side PEEK® sheathed cable AWG # 28 coaxial for L = 1000
Connection piece vacuum side PEEK® sheathed cable AWG # 28 coaxial for L = 1000
Product code :14429
Model:VCP1000/XX
3,900JPY (with tax 4,290JPY)
For connecting parts air-side cable BNC 3D-2V L = 1000
For connecting parts air-side cable BNC 3D-2V L = 1000
Product code :14447
Model:ACV1000B/XX
300JPY (with tax 330JPY)
Connection parts atmosphere side both sides with a plug cable BNC for L = 1000
Connection parts atmosphere side both sides with a plug cable BNC for L = 1000
Product code :14456
Model:ACV1000BP/BP
2,600JPY (with tax 2,860JPY)
Connection parts atmosphere side one side plug cable with BNC for L = 1000
Connection parts atmosphere side one side plug cable with BNC for L = 1000
Product code :14457
Model:ACV1000X/BP
1,800JPY (with tax 1,980JPY)
Hexagon socket head cap screw, with center hole, A2, M3, L=6, without coating
Hexagon socket head cap screw, with center hole, A2, M3, L=6, without coating
Product code :65039
Model:MC-306
