  1. Cosmotec for Vacuum Components
  2. Feedthrough
  3. Coaxial
  4. Coaxial BNC type
  5. Coaxial 5kV-BNC-R with 8 pcs ICF114 Flange

Coaxial 5kV-BNC-R with 8 pcs ICF114 Flange

同軸 5kV-BNC-R 8個付き ICF114 フランジ

Mouse over the image to enlarge it

同軸 5kV-BNC-R 8個付き ICF114 フランジ
share the productshare the product
Facebook
LINE
Twitter
Product code :41199 Model:C1145BR8

▼Feedthrough – Coaxial BNC Ground Shield (Single-side Plug Connection)
Rating: 1kV / 3A
Transmission characteristic: 50Ω
Grounded (ground continuity type)
Vacuum side: electrode / Atmosphere side: BNC connector connection
High voltage specification: up to 5kV

※The 5kV-BNC connector will be discontinued once current stock runs out.
　Please use the MHV connector, with the same specifications and plug connection on the atmosphere side instead.

▼ Custom-made products are also available.
We can also accept a change in the number of poles, a combination of multiple types of terminals, and mounting on a special flange.
Please contact us by clicking the "Inquiry" button on the right side of this page.

Precision cleaning request.

Basic Information
type BNC
Connection type The atmosphere-side plug-fitti
electrode Kovar ®
Flange material SUS 304
sleeve Kovar ®
Insulator Alumina ceramic
Maximum temperature 450℃
The lowest temperature -196℃
Leak rate <1.3x10-10Pa･㎥/sec
Classification Flanged terminal
type Ground shield
Impedance 50 Ω
frequency 100 MHz
Insulation resistance value 10⁹ ohm
Withstand voltage: DC 5 kV
Electric current / 1 pc. 3 A
RoHS2 corresponding ○
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 NW/KF ICF VF VG A B C D P.C.D The number of electrode
Stock & Delivery
front.product.price
front.product.tax_included2
41199
C1145BR8
- 114 - - 114 17.5 22 28 50 8

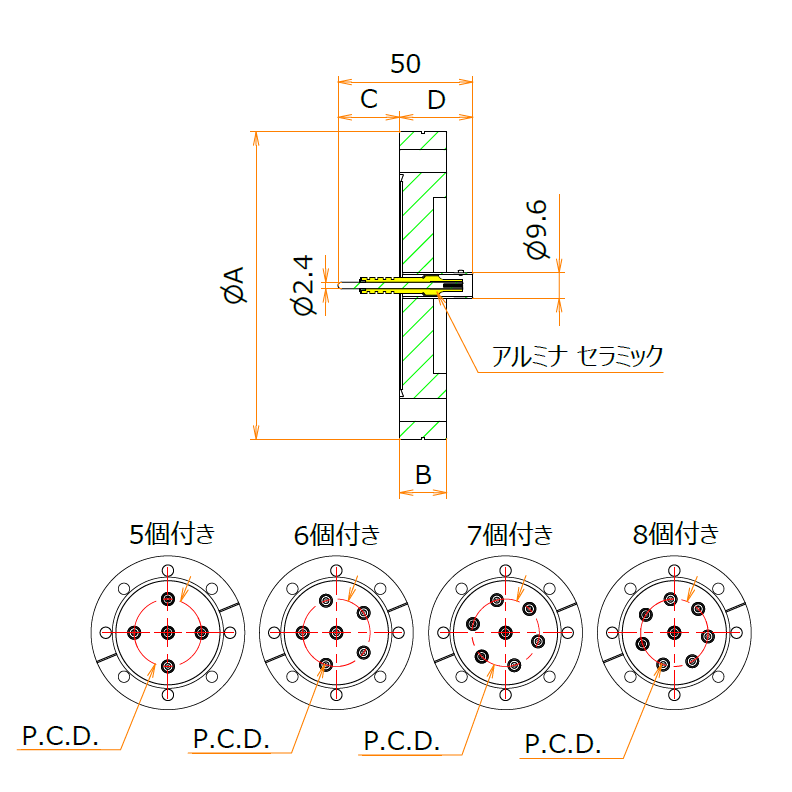

同軸 5kV-BNC-R 8個付き ICF114 フランジ admin.label.item.size_image
NW/KF ICF VF VG A B C D P.C.D The number of electrode
- 114 - - 114 17.5 22 28 50 8
Coaxial 5kV-BNC-R with 8 pcs ICF114 Flange
Product code :41199    Model:C1145BR8
Contact Us

Filter by model

フランジ

電極数

同軸 5kV-BNC-R 8個付き ICF114 フランジ admin.label.item.catalog_image
グランド及びフローティングタイプの違いについては以下を参照ください。
https://www.cosmotec-co.jp/info/case/1483/
Connection parts
Push-on type 10 pieces for connecting parts vacuum side socket contacts φ2.4
Push-on type 10 pieces for connecting parts vacuum side socket contacts φ2.4
Product code :10152
Model:SVC24S
Vacuum side socket contact crimp type Fai2.4 1 pcs
Vacuum side socket contact crimp type Fai2.4 1 pcs
Product code :14427
Model:SVC24CU
For connecting parts atmosphere side plug BNC-5kV
For connecting parts atmosphere side plug BNC-5kV
Product code :10001
Model:ASP-BNC5KV
Connection piece vacuum side Kapton coated cables AWG # for 26 coaxial L = 1000
Connection piece vacuum side Kapton coated cables AWG # for 26 coaxial L = 1000
Product code :14428
Model:VCK1000/XX
Connecting parts Vacuum side PEEK coated cable AWG#28 For coaxial L=1000
Connecting parts Vacuum side PEEK coated cable AWG#28 For coaxial L=1000
Product code :14429
Model:VCP1000/XX
