Feedthrough coaxial 5kV-BNC-R ground shield one si

Basic Information
type	BNC
Connection type	The atmosphere-side plug-fitti
electrode	Kovar ®
Flange material	SUS 304
sleeve	Kovar ®
Insulator	Alumina ceramic
Maximum temperature	450℃
The lowest temperature	-196℃
Leak rate	<1.3x10^-10Pa･㎥/sec
Classification	Flanged terminal
type	Ground shield
Impedance	50 Ω
frequency	100 MHz
Insulation resistance value	10⁹ ohm
Withstand voltage: DC	5 kV
Electric current / 1 pc.	3 A
RoHS2 corresponding	○

We have 48 type candidate

※ Please click on the product code or model for more information.

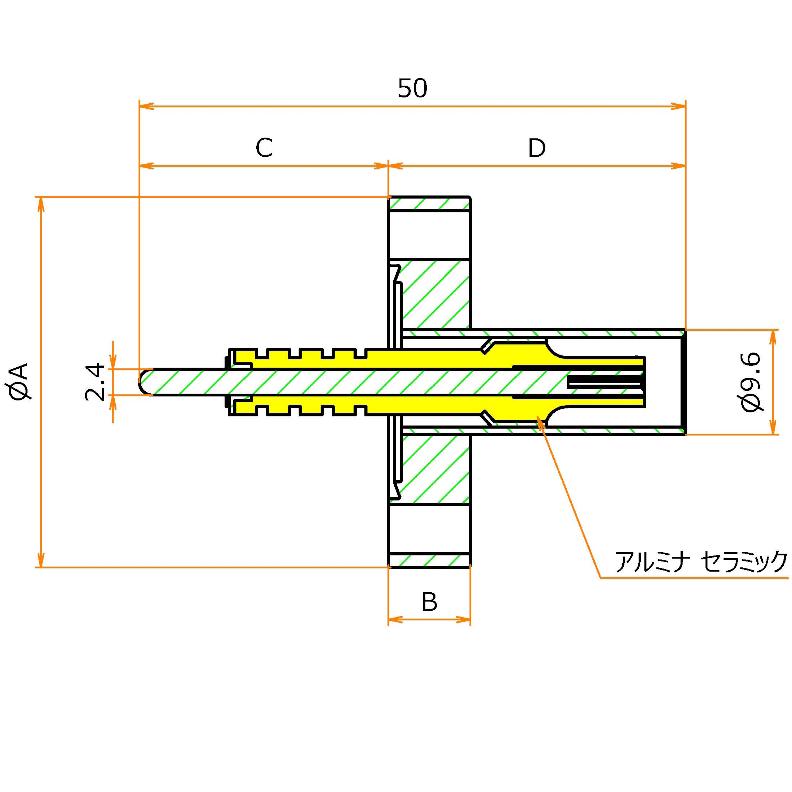

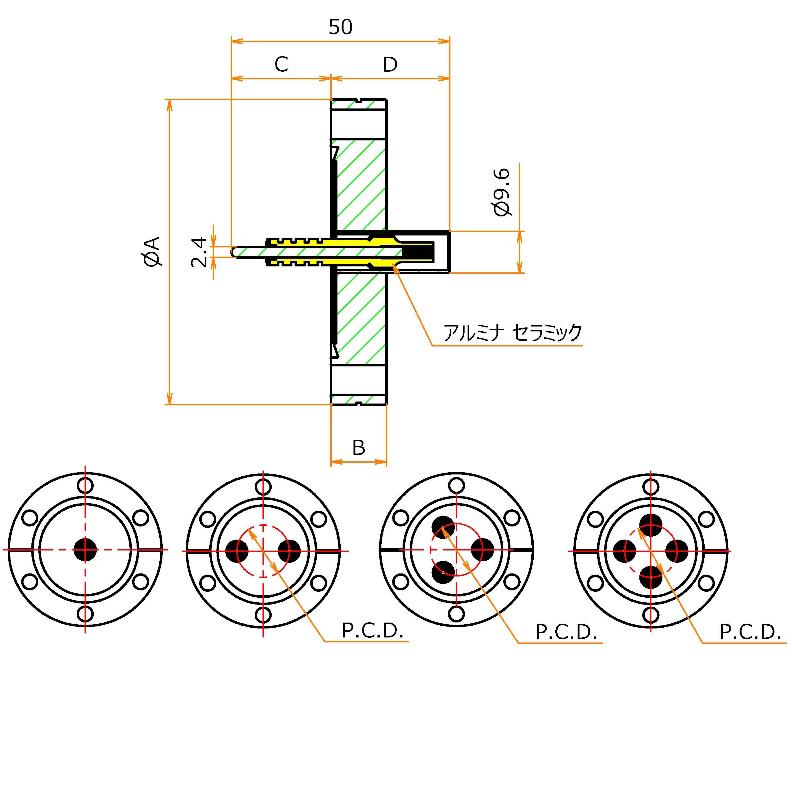

front.product.product_code Model	NW/KF	ICF	VF	VG	A	B	C	D	P.C.D	The number of electrode	Stock & Delivery	front.product.price front.product.tax_included2
11044 N165BR1	16	-	-	-	30	6	21.5	28.5	-	1	When out of stock Answered later	40,300JPY (with tax 44,330JPY)
10208 N255BR1	25	-	-	-	40	6	21.5	28.5	-	1	stock 4 1-2 Business Days When out of stock Answered later	44,000JPY (with tax 48,400JPY)
11105 N405BR1	40	-	-	-	55	6	21.5	28.5	-	1	When out of stock Answered later	40,800JPY (with tax 44,880JPY)
11106 N405BR2	40	-	-	-	55	6	21.5	28.5	24	2	When out of stock Answered later	78,600JPY (with tax 86,460JPY)
11107 N405BR3	40	-	-	-	55	6	21.5	28.5	24	3	When out of stock Answered later	112,200JPY (with tax 123,420JPY)
11110 N405BR4	40	-	-	-	55	6	21.5	28.5	24	4	When out of stock Answered later	144,200JPY (with tax 158,620JPY)
41032 N505BR1	50	-	-	-	75	6	21.5	28.5	-	1	When out of stock Answered later	41,300JPY (with tax 45,430JPY)
41033 N505BR2	50	-	-	-	75	6	21.5	28.5	24	2	When out of stock Answered later	79,100JPY (with tax 87,010JPY)
41034 N505BR3	50	-	-	-	75	6	21.5	28.5	24	3	When out of stock Answered later	112,700JPY (with tax 123,970JPY)
41035 N505BR4	50	-	-	-	75	6	21.5	28.5	24	4	When out of stock Answered later	144,700JPY (with tax 159,170JPY)
41188 N505BR5	50	-	-	-	75	6	21.5	28.5	32	1	When out of stock 20 Business Days	116,600JPY (with tax 128,260JPY)
41189 N505BR6	50	-	-	-	75	6	21.5	28.5	32	6	When out of stock 20 Business Days	139,500JPY (with tax 153,450JPY)
41190 N505BR7	50	-	-	-	75	6	21.5	28.5	32	7	When out of stock 20 Business Days	162,300JPY (with tax 178,530JPY)
41191 N505BR8	50	-	-	-	75	6	21.5	28.5	35	8	When out of stock 20 Business Days	185,200JPY (with tax 203,720JPY)
10615 C345BR1	-	34	-	-	34	7.5	22	28	-	1	stock 1 1-2 Business Days When out of stock Answered later	44,800JPY (with tax 49,280JPY)
10653 C705BR1	-	70	-	-	70	12.7	22	28	-	1	stock 1 1-2 Business Days When out of stock Answered later	46,000JPY (with tax 50,600JPY)
10654 C705BR2	-	70	-	-	70	12.7	22	28	24	2	stock 1 1-2 Business Days When out of stock Answered later	87,200JPY (with tax 95,920JPY)
10655 C705BR3	-	70	-	-	70	12.7	22	28	24	3	stock 1 1-2 Business Days When out of stock Answered later	113,700JPY (with tax 125,070JPY)
10656 C705BR4	-	70	-	-	70	12.7	22	28	24	4	stock 2 1-2 Business Days When out of stock Answered later	156,200JPY (with tax 171,820JPY)
41192 C1145BR1	-	114	-	-	114	17.5	22	28	-	-	When out of stock 20 Business Days	52,000JPY (with tax 57,200JPY)
41193 C1145BR2	-	114	-	-	114	17.5	22	28	24	2	When out of stock 20 Business Days	93,200JPY (with tax 102,520JPY)
41194 C1145BR3	-	114	-	-	114	17.5	22	28	24	3	When out of stock 20 Business Days	119,700JPY (with tax 131,670JPY)
41195 C1145BR4	-	114	-	-	114	17.5	22	28	40	4	When out of stock 20 Business Days	162,200JPY (with tax 178,420JPY)
41196 C1145BR5	-	114	-	-	114	17.5	22	28	50	5	When out of stock 20 Business Days	198,200JPY (with tax 218,020JPY)
41197 C1145BR6	-	114	-	-	114	17.5	22	28	50	6	When out of stock 20 Business Days	234,100JPY (with tax 257,510JPY)
41198 C1145BR7	-	114	-	-	114	17.5	22	28	50	7	When out of stock 20 Business Days	270,000JPY (with tax 297,000JPY)
41199 C1145BR8	-	114	-	-	114	17.5	22	28	50	8	When out of stock 20 Business Days	306,000JPY (with tax 336,600JPY)
41200 C1145BR9	-	114	-	-	114	17.5	22	28	50	9	When out of stock 20 Business Days	341,900JPY (with tax 376,090JPY)
41201 C1145BR10	-	114	-	-	114	17.5	22	28	50	10	When out of stock 20 Business Days	377,800JPY (with tax 415,580JPY)
41202 C1145BR11	-	114	-	-	114	17.5	22	28	50	11	When out of stock 20 Business Days	413,800JPY (with tax 455,180JPY)
11626 F205BR1	-	-	20	-	80	8	24	26	-	1	When out of stock Answered later	42,000JPY (with tax 46,200JPY)
11627 F255BR1	-	-	25	-	90	8	24	26	-	1	When out of stock Answered later	42,300JPY (with tax 46,530JPY)
11628 F255BR2	-	-	25	-	90	8	24	26	24	2	When out of stock Answered later	80,100JPY (with tax 88,110JPY)
11629 F405BR1	-	-	40	-	105	10	24	26	-	1	When out of stock Answered later	42,900JPY (with tax 47,190JPY)
11630 F405BR2	-	-	40	-	105	10	24	26	24	2	When out of stock Answered later	80,700JPY (with tax 88,770JPY)
11631 F405BR3	-	-	40	-	105	10	24	26	24	3	When out of stock Answered later	114,300JPY (with tax 125,730JPY)
11632 F405BR4	-	-	40	-	105	10	24	26	24	4	When out of stock Answered later	146,300JPY (with tax 160,930JPY)
41215 G405BR5	-	-	40	-	105	10	24	26	33	5	When out of stock 20 Business Days	122,700JPY (with tax 134,970JPY)
41216 G405BR6	-	-	40	-	105	10	24	26	33	6	When out of stock 20 Business Days	145,800JPY (with tax 160,380JPY)
11633 G205BR1	-	-	-	20	80	8	24	26	-	1	When out of stock Answered later	42,000JPY (with tax 46,200JPY)
11634 G255BR1	-	-	-	25	90	8	24	26	-	1	When out of stock Answered later	42,300JPY (with tax 46,530JPY)
11635 G255BR2	-	-	-	25	90	8	24	26	24	2	When out of stock Answered later	80,100JPY (with tax 88,110JPY)
11636 G405BR1	-	-	-	40	105	10	24	26	-	1	When out of stock Answered later	42,900JPY (with tax 47,190JPY)
11637 G405BR2	-	-	-	40	105	10	24	26	24	2	When out of stock Answered later	80,700JPY (with tax 88,770JPY)
11638 G405BR3	-	-	-	40	105	10	24	26	24	3	When out of stock Answered later	114,300JPY (with tax 125,730JPY)
11639 G405BR4	-	-	-	40	105	10	24	26	24	4	When out of stock Answered later	146,300JPY (with tax 160,930JPY)
41211 F405BR5	-	-	-	40	105	10	24	26	33	5	When out of stock 20 Business Days	122,700JPY (with tax 134,970JPY)
41212 F405BR6	-	-	-	40	105	10	24	26	33	6	When out of stock 20 Business Days	145,800JPY (with tax 160,380JPY)

NW/KF	ICF	VF	VG	A	B	C	D	P.C.D	The number of electrode
