  1. Cosmotec for Vacuum Components
  2. Feedthrough
  3. Coaxial
  4. LM type
  5. Coaxial LM-00R with 1 piece VG25 flange

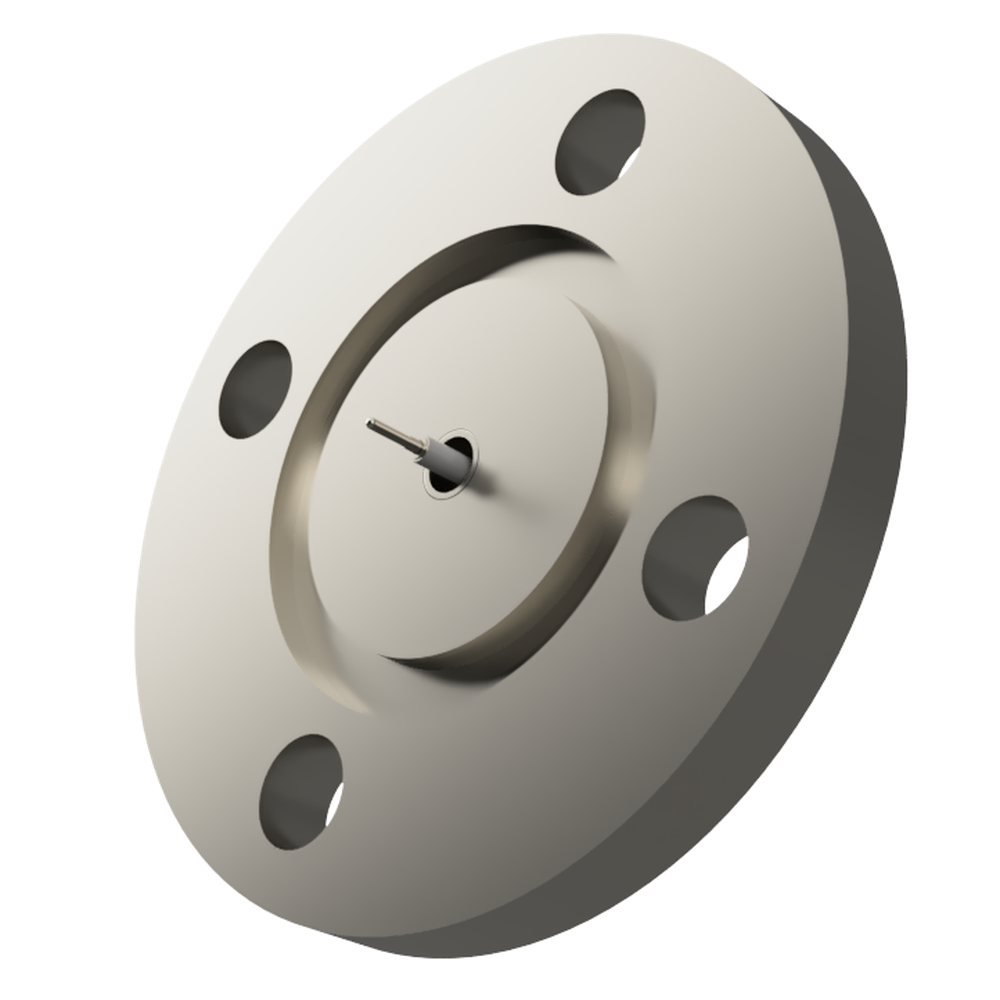

Coaxial LM-00R with 1 piece VG25 flange

同軸 LM-00R 1個付き VG25 フランジ

Mouse over the image to enlarge it

同軸 LM-00R 1個付き VG25 フランジ
share the productshare the product
Facebook
LINE
Twitter
Product code :11769 Model:G25LR1

▼ Feedthrough Coaxial LM-00R Ground Shield One Side Plug Mating
1kV 2A compatible
For 50Ω transmission
Ground and continuity
Electrode on vacuum side, LM connector connection on atmospheric side only
Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

▼ In addition, the following types are standardized
Ground shield both side plugging
Floating shield both side plug mating

▼ Custom-made products are also available.
We can also provide special flange mountings with different number of pins and multiple types of terminal combinations.
Please contact us by clicking the "Inquiry" button on the right side of the page.

Precision cleaning request.

Basic Information
type LM
Connection type The atmosphere-side plug-fitti
electrode Kovar ®
Flange material SUS 304
sleeve Kovar ®
Insulator Alumina ceramic
Maximum temperature 450℃
The lowest temperature -196℃
Leak rate <1.3x10-10Pa･㎥/sec
Classification Flanged terminal
type Ground shield
Impedance 50 Ω
frequency 1300 MHz
Insulation resistance value 10⁹ ohm
Withstand voltage: DC 1 kV
Electric current / 1 pc. 2 A
RoHS2 corresponding ○
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 NW/KF ICF VF VG A B C D P.C.D The number of electrode
Stock & Delivery
front.product.price
front.product.tax_included2
11769
G25LR1
- - - 25 90 8 10 20 - 1
同軸 LM-00R 1個付き VG25 フランジ admin.label.item.size_image
NW/KF ICF VF VG A B C D P.C.D The number of electrode
- - - 25 90 8 10 20 - 1
Coaxial LM-00R with 1 piece VG25 flange
Product code :11769    Model:G25LR1
Contact Us

Filter by model

フランジ

電極数

同軸 LM-00R 1個付き VG25 フランジ admin.label.item.catalog_image
グランド及びフローティングタイプの違いについては以下を参照ください。
https://www.cosmotec-co.jp/info/case/1483/
Connection parts
Connection part Vacuum side Socket contact for φ1.0 Crimping type 10 pcs.
Connection part Vacuum side Socket contact for φ1.0 Crimping type 10 pcs.
Product code :10499
Model:SVC10
For connecting parts atmosphere side plug LM
For connecting parts atmosphere side plug LM
Product code :10186
Model:ASP-LEMO
Connection piece vacuum side Kapton coated cables AWG # for 26 coaxial L = 1000
Connection piece vacuum side Kapton coated cables AWG # for 26 coaxial L = 1000
Product code :14428
Model:VCK1000/XX
Connection piece vacuum side PEEK® sheathed cable AWG # 28 coaxial for L = 1000
Connection piece vacuum side PEEK® sheathed cable AWG # 28 coaxial for L = 1000
Product code :14429
Model:VCP1000/XX
Connection parts atmosphere side both sides with a plug cable LM for L = 1000
Connection parts atmosphere side both sides with a plug cable LM for L = 1000
Product code :14472
Model:ACV1000LP/LP
Connection parts atmosphere side one side with a plug cable LM for L = 1000
Connection parts atmosphere side one side with a plug cable LM for L = 1000
Product code :14473
Model:ACV1000X/LP
RG174AU L = 1000 for the connection parts air-side cable LM
RG174AU L = 1000 for the connection parts air-side cable LM
Product code :14455
Model:ACV1000L/XX
Related products
BOLT/NUT/WASHER with hexagon socket for VF/VG10 to 25 25 pairs
BOLT/NUT/WASHER with hexagon socket for VF/VG10 to 25 25 pairs
Product code :25549
Model:BNW-M8X30LB
V40 O-ring for Viton® VF/VG25
V40 O-ring for Viton® VF/VG25
Product code :20263
Model:V40
