  1. Cosmotec for Vacuum Components
  2. Feedthrough
  3. Coaxial
  4. LM type
  5. Coaxial LM-00R 6pcs VG20 flange

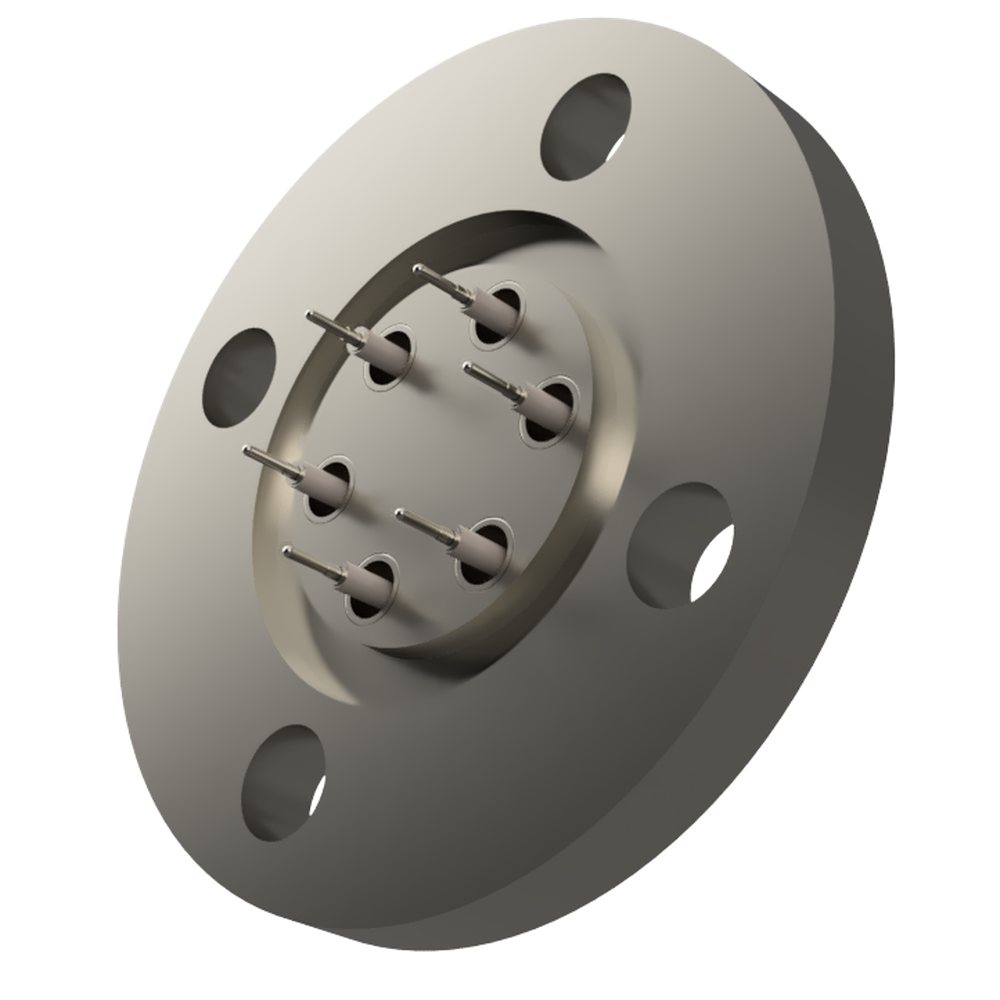

Coaxial LM-00R 6pcs VG20 flange

同軸 LM-00R 6個付き VG20 フランジ

Mouse over the image to enlarge it

同軸 LM-00R 6個付き VG20 フランジ
share the productshare the product
Facebook
LINE
Twitter
Product code :12913 Model:G20LR6

▼ Feedthrough Coaxial LM-00R Ground Shield One Side Plug Mating
1kV 2A compatible
For 50Ω transmission
Ground and continuity
Electrode on vacuum side, LM connector connection on atmospheric side only
Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

▼ In addition, the following types are standardized
Ground shield both side plugging
Floating shield both side plug mating

▼ Custom-made products are also available.
We can also provide special flange mountings with different number of pins and multiple types of terminal combinations.
Please contact us by clicking the "Inquiry" button on the right side of the page.

Precision cleaning request.

Basic Information
type LM
Connection type The atmosphere-side plug-fitti
electrode Kovar ®
Flange material SUS 304
sleeve Kovar ®
Insulator Alumina ceramic
Maximum temperature 450℃
The lowest temperature -196℃
Leak rate <1.3x10-10Pa･㎥/sec
Classification Flanged terminal
type Ground shield
Impedance 50 Ω
frequency 1300 MHz
Insulation resistance value 10⁹ ohm
Withstand voltage: DC 1 kV
Electric current / 1 pc. 2 A
RoHS2 corresponding ○
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 NW/KF ICF VF VG A B C D P.C.D The number of electrode
Stock & Delivery
front.product.price
front.product.tax_included2
12913
G20LR6
- - - 20 80 8 10 20 25 6
同軸 LM-00R 6個付き VG20 フランジ admin.label.item.size_image
NW/KF ICF VF VG A B C D P.C.D The number of electrode
- - - 20 80 8 10 20 25 6
Coaxial LM-00R 6pcs VG20 flange
Product code :12913    Model:G20LR6
