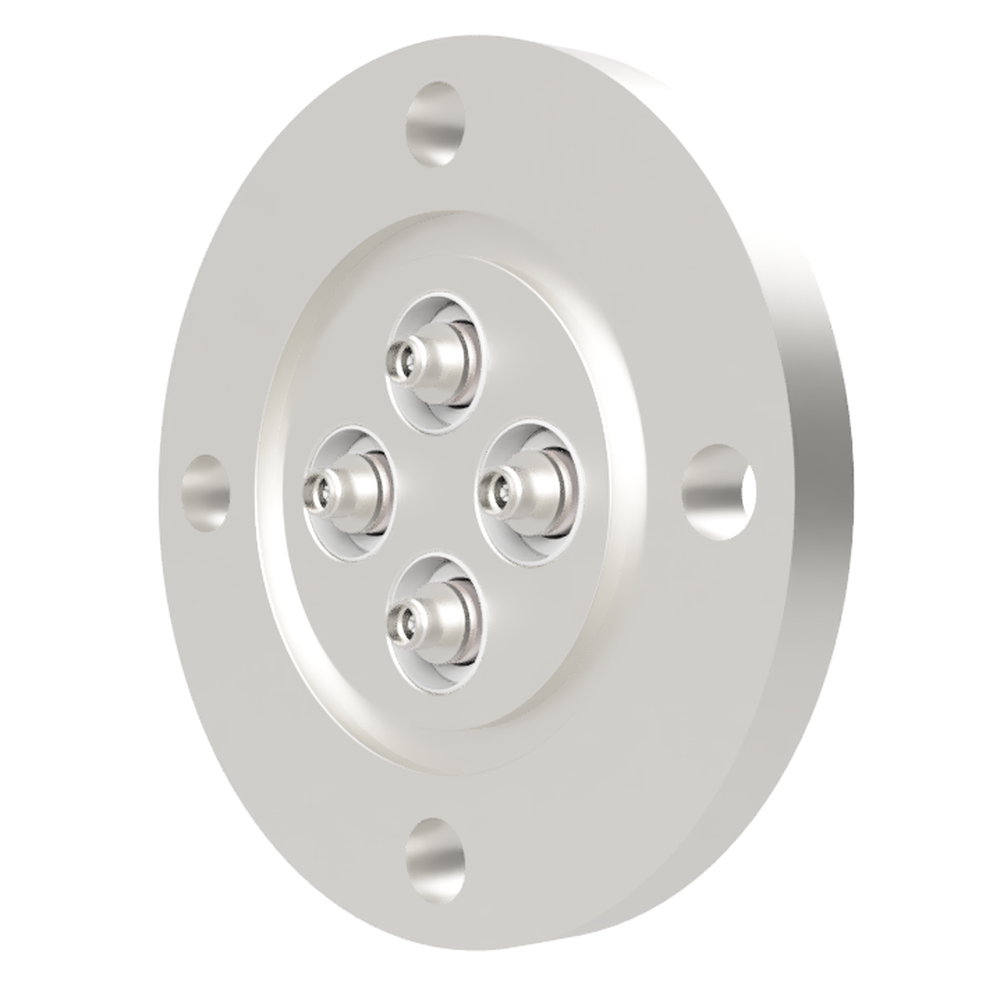

Coaxial SMA-JJ-F with 4 pcs. VG40 flange

同軸 SMA-JJ-F 4個付き VG40 フランジ

Mouse over the image to enlarge it

同軸 SMA-JJ-F 4個付き VG40 フランジ
share the productshare the product
Facebook
LINE
Twitter
Product code :12885 Model:G40SMJF4

Sub Miniature Type-A
▼ Feedthrough Coaxial SMA-JJ Floating Shield Both Side Plug Mating
1kV 3A compatible
For 50Ω transmission
Floating shield isolated from ground
SMA connector connection on both vacuum and atmospheric side
Connection flanges standardized as NW/KF, ICF, JIS-VF, JIS-VG

▼ In addition, the following types are standardized(List)
Ground shielded single-sided plug mating
Floating shield plugging on one side
Gland shield plug mating on both sides

▼ Custom-made products are also available.
We can also accept special flange mounting of multiple terminal combinations with different number of poles.
Please contact us by clicking the "Inquiry" button on the right side of the page.

Precision cleaning request.

Basic Information
type SMA
Connection type Vacuum side and the atmosphere
electrode Kovar ®
Flange material SUS 304
sleeve Kovar ®
Insulator Alumina ceramic
Maximum temperature 450℃
The lowest temperature -196℃
Leak rate <1.3x10-10Pa･㎥/sec
Classification Flanged terminal
type Floating shield
Impedance 50 Ω
frequency 6500 MHz
Insulation resistance value 10⁹ ohm
Withstand voltage: DC 1 kV
Electric current / 1 pc. 3 A
RoHS2 corresponding ○
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 NW/KF ICF VF VG A B C D P.C.D The number of electrode
Stock & Delivery
front.product.price
front.product.tax_included2
12885
G40SMJF4
- - - 40 105 10 5.5 17 30 4
同軸 SMA-JJ-F 4個付き VG40 フランジ admin.label.item.size_image
NW/KF ICF VF VG A B C D P.C.D The number of electrode
- - - 40 105 10 5.5 17 30 4
Coaxial SMA-JJ-F with 4 pcs. VG40 flange
Product code :12885    Model:G40SMJF4
Contact Us

Filter by model

フランジ

電極数

同軸 SMA-JJ-F 4個付き VG40 フランジ admin.label.item.catalog_image
グランド及びフローティングタイプの違いについては以下を参照ください。
https://www.cosmotec-co.jp/info/case/1483/
