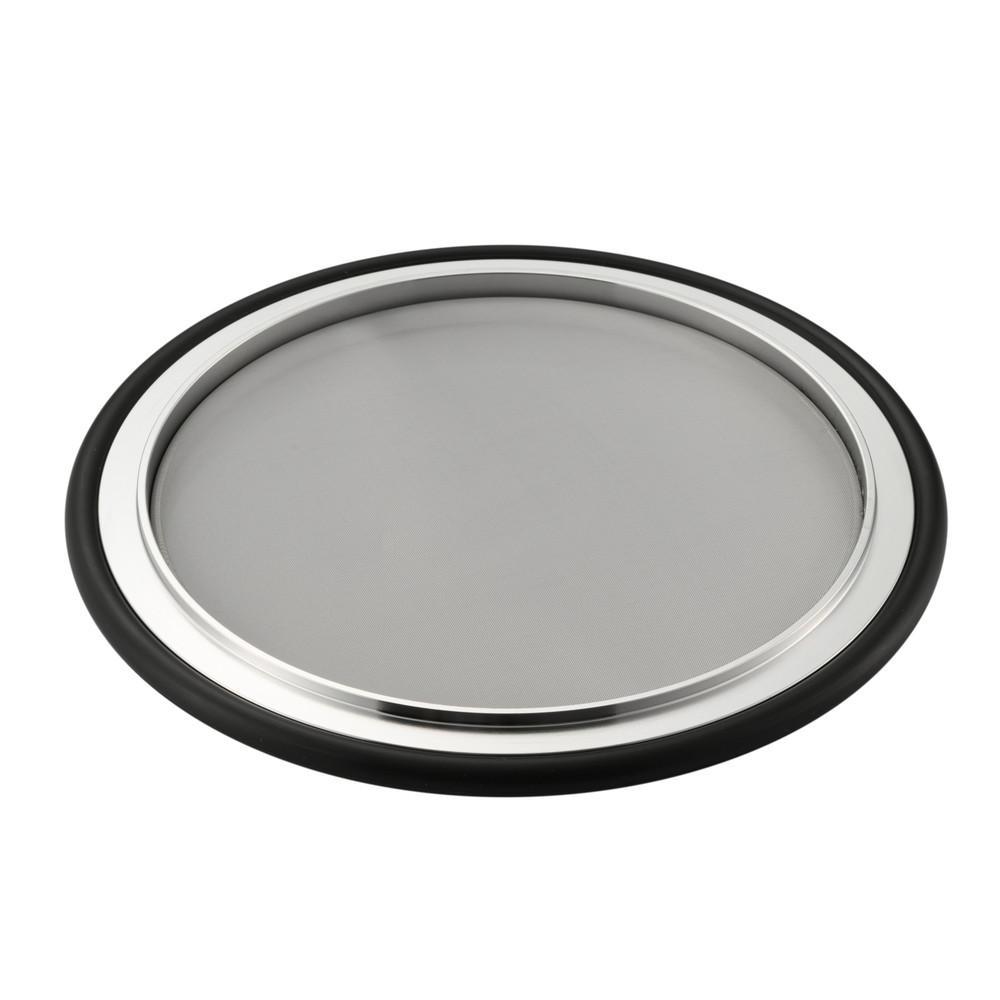

NW100 #150 Center ring with mesh SUS316L/Viton

NW100 #150 ﾒｯｼｭ付きｾﾝﾀｰﾘﾝｸﾞ SUS316L/Viton

Mouse over the image to enlarge it

NW100 #150 ﾒｯｼｭ付きｾﾝﾀｰﾘﾝｸﾞ SUS316L/Viton
share the productshare the product
Facebook
LINE
Twitter
Product code :27162 Model:N100CRSV6LM150

▼NW/KF Center ring with mesh
For NW/KF flange (metal piping)
One-touch connection with inner ring guide
With mesh to prevent foreign matter from mixing in
※Mesh: Number of squares in one row in 25.4mm. For #10 mesh, 10 squares in 25.4 mm. (The mesh opening varies depending on the wire diameter.

▼We also offer the following products
Center Ring: (List)
*For glass piping (here)
Blank type: Processable type without a hole in the center
Aluminum edge seal: Ultra high vacuum even with NW flange ( 10-⁹Pa range) even with NW flanges (one-time use only, use clamp for metal seal)

▼ Others
If you have any questions about our products, please feel free to contact us from the "Inquiry" button.

For precision cleaning requests, please click here.

Basic Information
Seal / gasket material Viton ®
Maximum temperature 150℃
The lowest temperature -20℃
RoHS2 corresponding ○
26,000 JPY (with tax 28,600JPY)
When out of stock
Answered later
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 NW/KF A B C D Mesh size Body & Mesh
Stock & Delivery
front.product.price
front.product.tax_included2
27162
N100CRSV6LM150
100 101.8 95.5 8 3.9 #150 (Wire diameter:0.06, Clea SUS 316L
When out of stock
Answered later
26,000JPY (with tax 28,600JPY)
NW100 #150 ﾒｯｼｭ付きｾﾝﾀｰﾘﾝｸﾞ SUS316L/Viton admin.label.item.size_image
NW/KF A B C D Mesh size Body & Mesh
100 101.8 95.5 8 3.9 #150 (Wire diameter:0.06, Clea SUS 316L
NW100 #150 Center ring with mesh SUS316L/Viton
Product code :27162    Model:N100CRSV6LM150
26,000JPY (with tax 28,600JPY)
