NW / KF center ring SUS / Kalrez ®
▼NW/KF Center Ring
For NW/KF flange (metal piping)
One-touch connection with inner ring guide
With outer ring can be used for high pressure applications.
▼The following types are standardized (List)
Applicable flange (NW): 10, 16, 25, 40, 50
Guide material: SUS, Teflon, aluminum
O-ring material: Viton, Nitrile, Karlez®, FEP
O-ring (Viton® / Nitrile)
※For glass piping (here)
▼We also offer the following products
Blank type: Processable type without a hole in the center
Aluminum edge seal: Ultra high vacuum even with NW flange ( 10-⁹Pa range) even with NW flanges (one-time use only, use clamp for metal seal)
Center Ring with Mesh: Mesh to prevent contamination
Conversion center ring: Converts between NW10 and NW16 without inserting nipples, etc.
▼Options
We can also provide drilling (orifice machining, etc.) and other options for blank types. Please contact us from the "Inquiry" button on the right side of the page.
For precision cleaning requests, click here.
| Basic Information | |
|---|---|
| The inner ring | SUS 316L |
| Seal / gasket material | Kalrez ®4079 |
| Maximum temperature | 315℃ |
| The lowest temperature | -10℃ |
| RoHS2 corresponding | ○ |
We have 4 type candidate
※ Please click on the product code or model for more information.
front.product.product_code Model |
NW/KF | A | B | Stock & Delivery |
front.product.price front.product.tax_included2 |
|---|---|---|---|---|---|
| 16 | 17 | 16 |
stock
35
1-2 Business Days
When out of stock
Answered later
|
19,500JPY
(with tax 21,450JPY)
|
|
| 25 | 26 | 25 |
stock
35
1-2 Business Days
When out of stock
Answered later
|
21,500JPY
(with tax 23,650JPY)
|
|
| 40 | 41 | 40 |
stock
32
1-2 Business Days
When out of stock
Answered later
|
23,500JPY
(with tax 25,850JPY)
|
|
| 50 | 52 | 50 |
stock
28
1-2 Business Days
When out of stock
Answered later
|
25,500JPY
(with tax 28,050JPY)
|

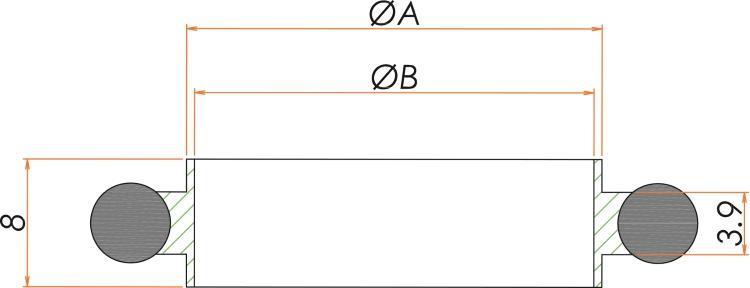

| NW/KF | A | B |
|---|---|---|
