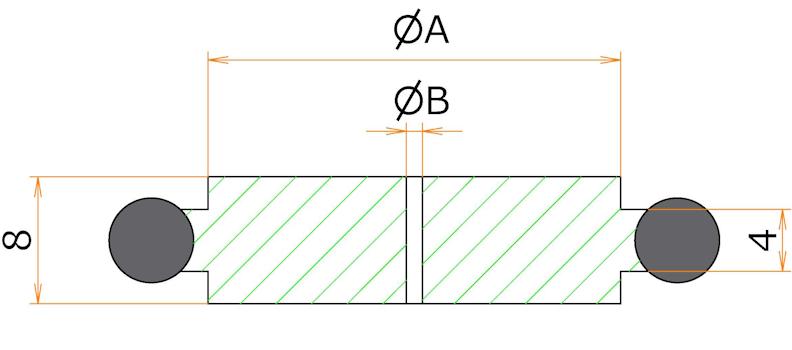

▼NW/KF Center Ring Blank type
For NW/KF flange (metal piping)
One-touch connection by inner ring guide
Blank type, processable, orifice diameter can be freely set.
▼The following types are standardized (List)
Applicable flange (NW): 10, 16, 25, 40, 50
Guide material: SUS
O-ring material: Viton®, Nitrile, Kalrez®
O-ring (Viton® / Nitrile Nitrile)
Use (with outer ring) for internal pressure environments

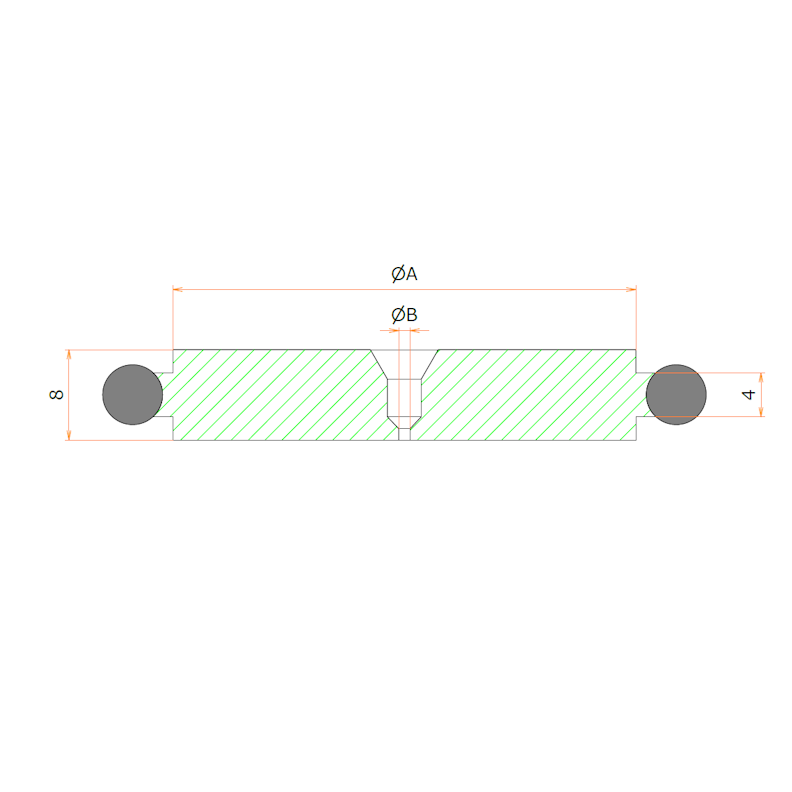

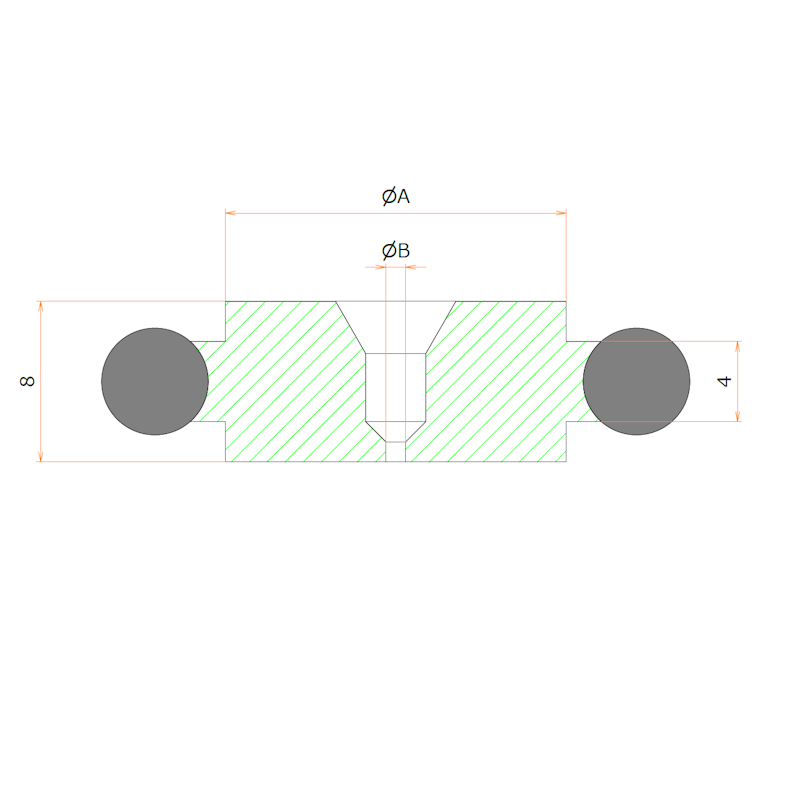

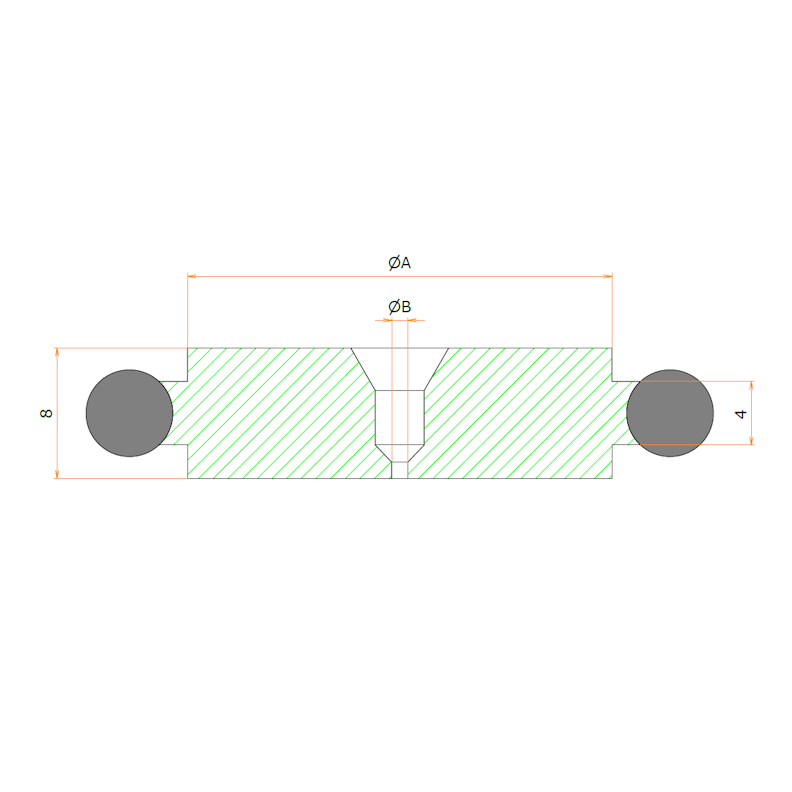

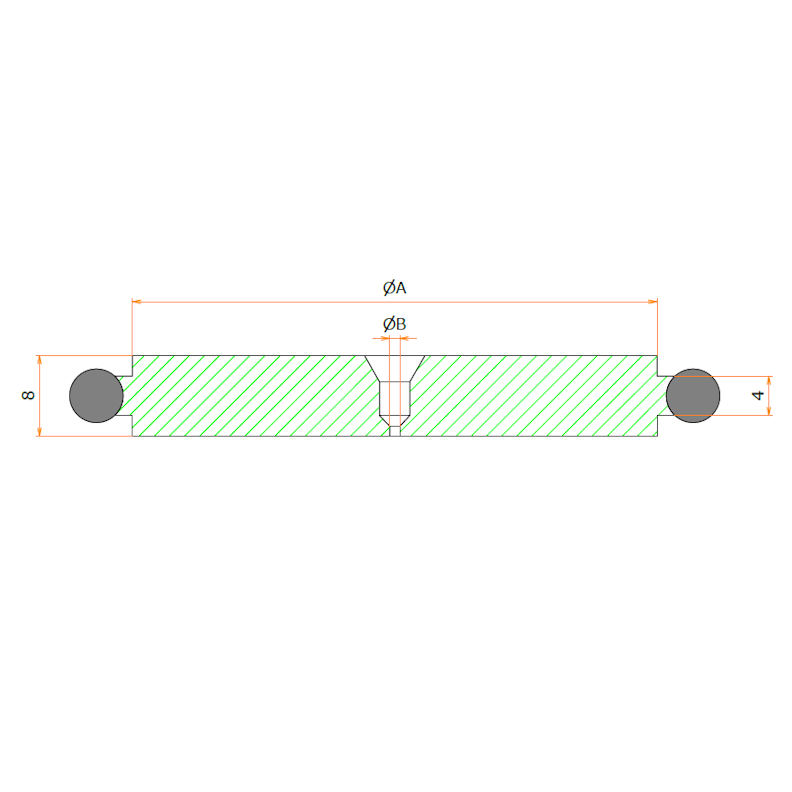

▼Center ring with orifice hole
This is a standard blank center ring with an orifice hole.
We can quickly respond to your requests for hole diameters not in our product lineup, starting from a single item.
▼We also offer the following products
Center Ring with Mesh: With mesh to prevent foreign material contamination
Conversion center ring: Converts flanges of different diameters without inserting nipples, etc.
▼Others
If you have any questions about our products, please feel free to contact us by clicking the "Inquiry" button.
Precision Cleaning Request.
| Basic Information | |
|---|---|
| The inner ring | SUS 304 |
| Seal / gasket material | Viton ® |
※ Please click on the product code or model for more information.
front.product.product_code Model |
NW/KF | A | B | Tolerance of hole diameter | Stock & Delivery |
front.product.price front.product.tax_included2 |
|---|---|---|---|---|---|---|
| 10 | 12 | - | - |
stock
15
1-2 Business Days
When out of stock
Answered later
|
12,100JPY
(with tax 13,310JPY)
|
|
| 16 | 17 | - | - |
stock
25
1-2 Business Days
When out of stock
Answered later
|
14,000JPY
(with tax 15,400JPY)
|
|
| 25 | 26 | - | - |
stock
2
1-2 Business Days
When out of stock
Answered later
|
16,600JPY
(with tax 18,260JPY)
|
|
| 40 | 41 | - | - |
stock
49
1-2 Business Days
When out of stock
Answered later
|
19,700JPY
(with tax 21,670JPY)
|
|
| 50 | 52 | - | - |
stock
19
1-2 Business Days
When out of stock
Answered later
|
24,500JPY
(with tax 26,950JPY)
|
|
| 10 | 12 | 1 | JIS Intermediate |
When out of stock
15 Business Days
|
18,100JPY
(with tax 19,910JPY)
|
|
| 16 | 17 | 1 | JIS Intermediate |
stock
1
1-2 Business Days
When out of stock
15 Business Days
|
20,000JPY
(with tax 22,000JPY)
|
|
| 25 | 26 | 1 | JIS Intermediate |
stock
3
1-2 Business Days
When out of stock
15 Business Days
|
22,600JPY
(with tax 24,860JPY)
|
|
| 40 | 41 | 1 | JIS Intermediate |
stock
2
1-2 Business Days
When out of stock
15 Business Days
|
25,700JPY
(with tax 28,270JPY)
|
|
| 50 | 52 | 1 | JIS Intermediate |
stock
1
1-2 Business Days
When out of stock
15 Business Days
|
30,500JPY
(with tax 33,550JPY)
|
| NW/KF | A | B | Tolerance of hole diameter |
|---|---|---|---|
