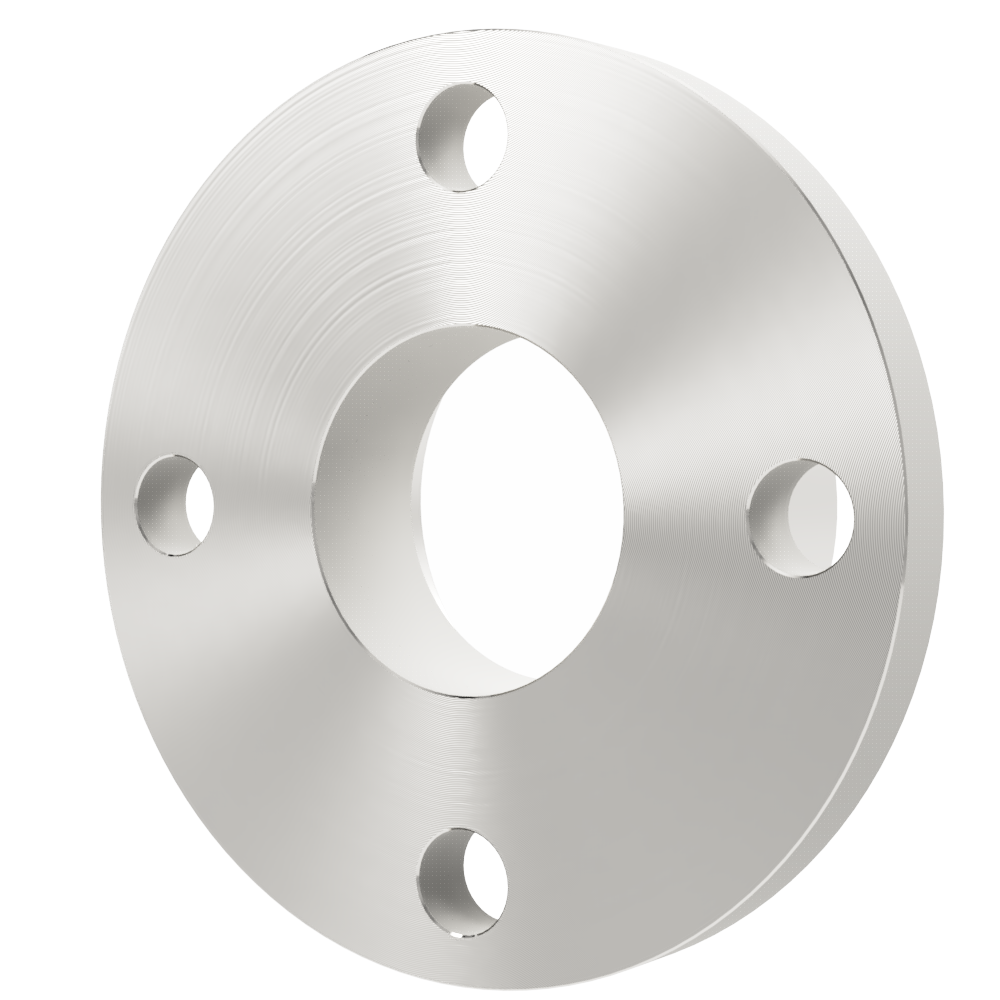

VF25 Viewport
▼ Viewport Fused silica
Borosilicate glass/Duran®: for visual inspection inside the chamber
Materials such as quartz and sapphire available for optical use
▼ The following types are standardized
Flanges: NW/KF, ICF, JIS-VF, JIS-VG, CeFiX®, Sanitary
Window materials are Borosilicate glass, Borosilicate glass
Sapphire (Al2O3),.
Fused silica (SiO2),.
Synthetic Quartz ( SiO2),.
Magnesium Fluoride (MgF2),.
Calcium Fluoride (CaF2),
Barium Fluoride(BaF2)
Germanium (Ge),.
Zinc Selenide (ZnSe),.
lead glass as standard products.
Non-magnetic flanges (titanium, SUS316L) are also available.Viewports that can be opened and closed (list) are also available.
▼Options (ICF flange only)
Viewport cover (List)
Viewport Shutter(List)
▼Custom-made products are also available.
We can change the window material and flange size. AR coating is also available. Please contact us by clicking the "Inquiry" button on the right side of the page.
※When requesting AR coating, please let us know the wavelength used, and if laser resistance is required, please let us know the details of the laser to be used.
| Basic Information | |
|---|---|
| window | Synthetic quartz |
| Maximum temperature | 200℃ |
| The lowest temperature | -100℃ |
| RoHS2 corresponding | ○ |
front.product.product_code Model |
NW/KF | ICF | VF | VG | A | H | H1 | H2 | T (glass thickness) | V (effective diameter) | Flange material | Corresponding laser | Stock & Delivery |
front.product.price front.product.tax_included2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| - | - | 25 | - | 90 | - | 27.1 | 8 | 3.2 | 34.8 | SUS 304 | UV | |||
| NW/KF | ICF | VF | VG | A | H | H1 | H2 | T (glass thickness) | V (effective diameter) | Flange material | Corresponding laser |
|---|---|---|---|---|---|---|---|---|---|---|---|
| - | - | 25 | - | 90 | - | 27.1 | 8 | 3.2 | 34.8 | SUS 304 | UV |
