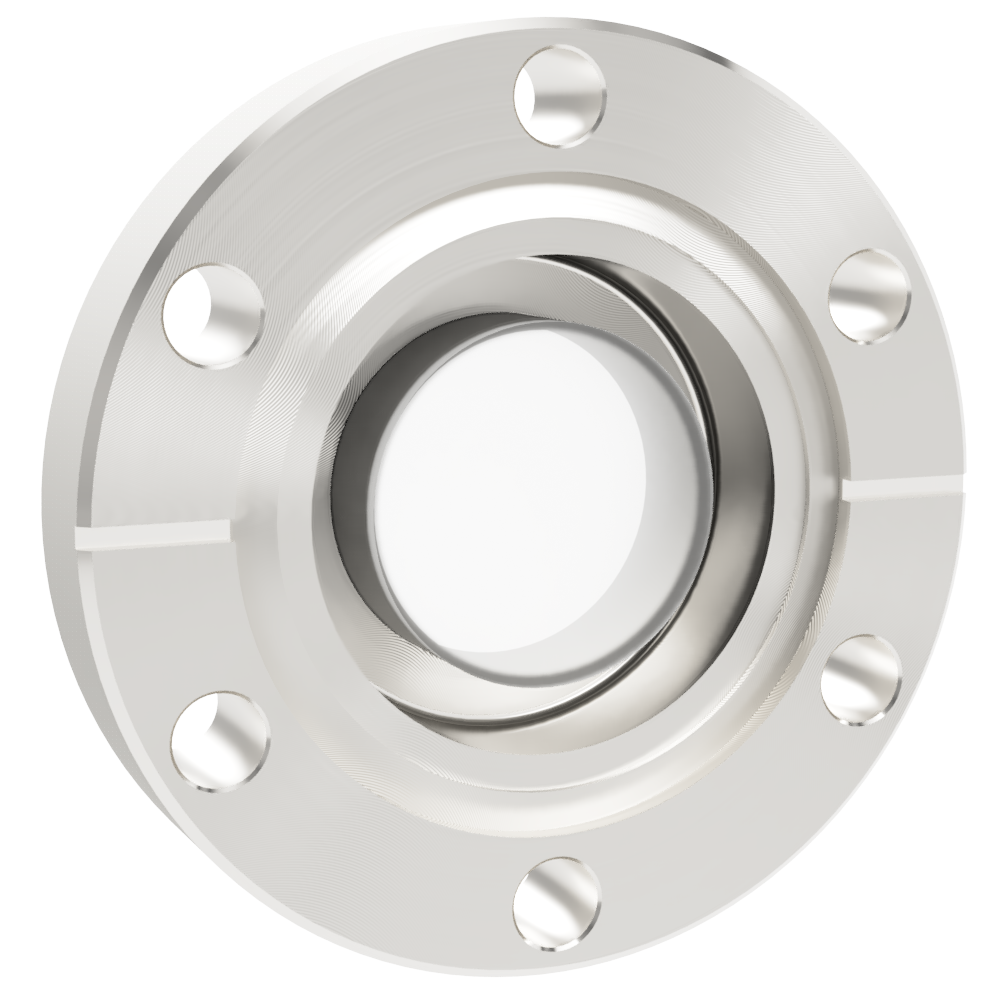

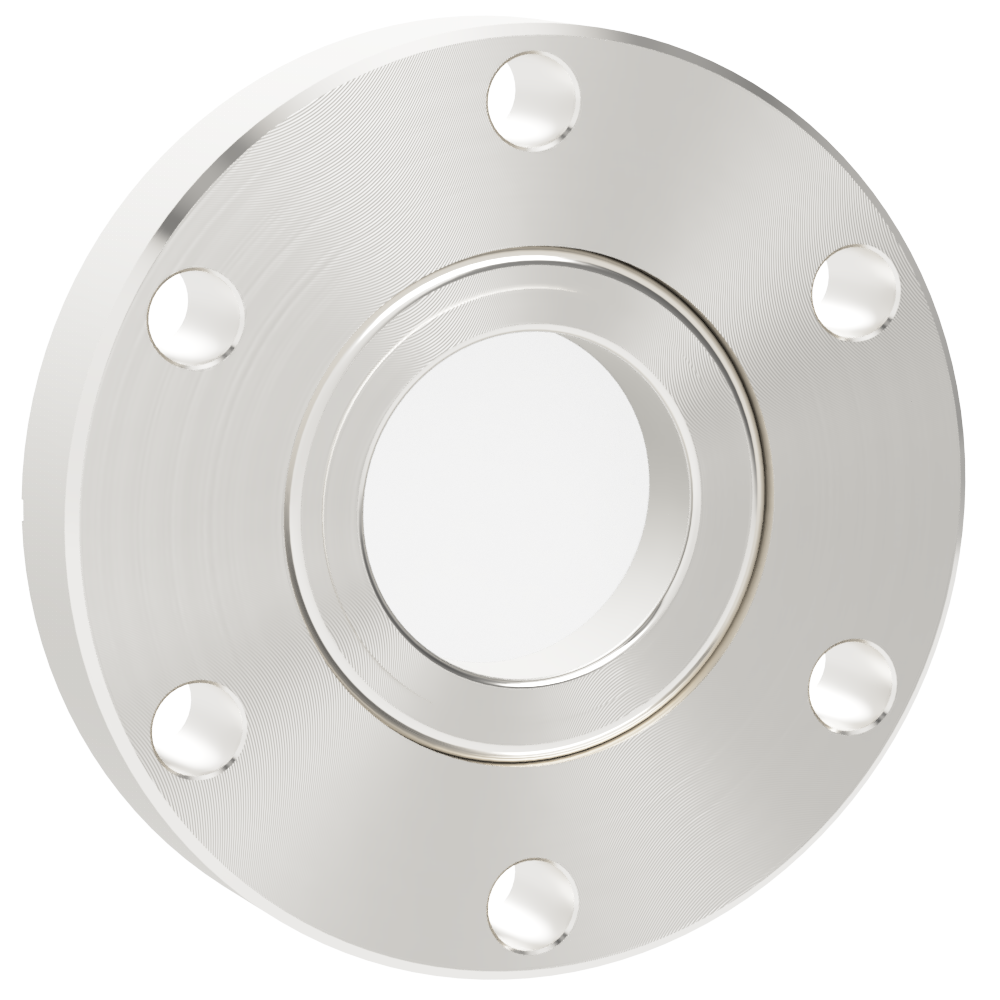

ICF70 Sapphire Viewport SUS316LN DUV grade

Mouse over the image to enlarge it

share the productshare the product

Product code :22622 Model:ICF70VPSAD6LN

▼ Viewport Sapphire
Borosilicate glass/Duran®: for visual inspection inside the chamber
Materials such as quartz and sapphire are available for optical use

▼ The following types are standardized
Flanges: NW/KF, ICF, JIS-VF, JIS-VG, CeFiX®, Sanitary
Window materials are Borosilicate glass, Borosilicate glass Sapphire (Al2O3),.
Fused silica (SiO2),.
Synthetic Quartz ( SiO2),.
Magnesium Fluoride (MgF2),.
Calcium Fluoride (CaF2),
Barium Fluoride(BaF2)
Germanium (Ge),.
Zinc Selenide (ZnSe),.
lead glass as standard products.
Non-magnetic flanges (titanium, SUS316L) are also available.
Viewports that can be opened and closed (list) are also available.

▼Options (ICF flange only)
Viewport cover (List)
Viewport Shutter(List)

▼Custom-made products are also available.
We can change the window material and flange size. AR coating is also available. Please contact us by clicking the "Inquiry" button on the right side of the page.
※When requesting AR coating, please let us know the wavelength used, and if laser resistance is required, please let us know the details of the laser to be used.

Basic Information
window	sapphire
RoHS2 corresponding	○

215,400 JPY (with tax 236,940JPY)

When out of stock: Answered later

Quantity

Inquiry for this product

RoHS2 Download

share the productshare the product

front.product.product_code Model	NW/KF	ICF	A	H	T (glass thickness)	V (effective diameter)	Flange material	Maximum temperature	The lowest temperature	Corresponding laser	Stock & Delivery	front.product.price front.product.tax_included2
22622 ICF70VPSAD6LN	-	70	70	12.7	2	24.1	SUS316LN	450℃	-100℃	DUV	When out of stock Answered later	215,400JPY (with tax 236,940JPY)

NW/KF	ICF	A	H	T (glass thickness)	V (effective diameter)	Flange material	Maximum temperature	The lowest temperature	Corresponding laser
-	70	70	12.7	2	24.1	SUS316LN	450℃	-100℃	DUV
