  1. Cosmotec for Vacuum Components
  2. Feedthrough
  3. Coaxial
  4. N type
  5. Coaxial N-R-F with 1 piece VG25 flange

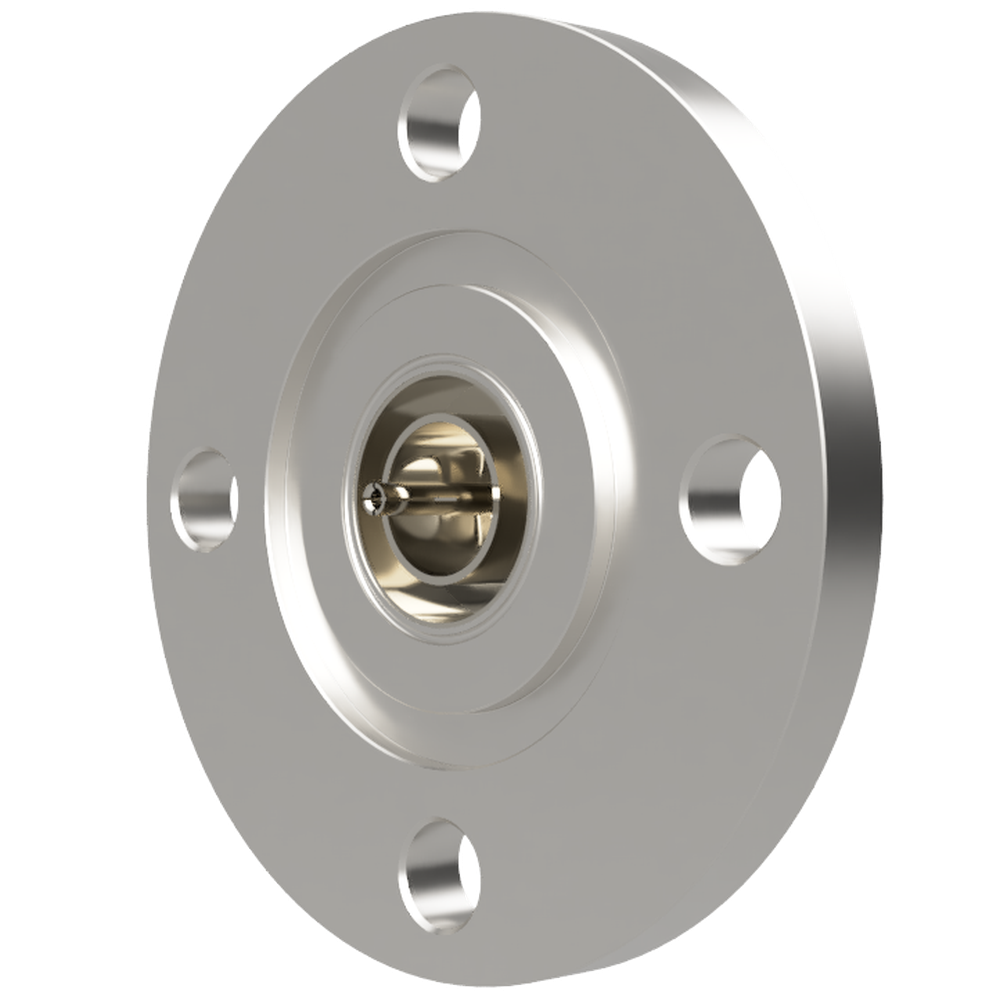

Coaxial N-R-F with 1 piece VG25 flange

同軸 N-R-F 1個付き VG25 フランジ

Mouse over the image to enlarge it

同軸 N-R-F 1個付き VG25 フランジ
share the productshare the product
Facebook
LINE
Twitter
Product code :11716 Model:G25NRF1

Type-N
▼ Feedthrough Coaxial N-R Floating Shield Single-sided Plug Mating
3kV 5A compatible
For 50Ω transmission
Floating shield isolated from ground
Electrode on vacuum side, connector connection on atmospheric side only
Connection flanges standardized as NW/KF, ICF, JIS-VF, JIS-VG

▼In addition, the following types are standardized
Ground shield single-sided plug mating
Male ground shield plug mating on one side
Ground shield both side plug fitting
Floating shield plug mating on both sides

▼ Custom-made products are also available.
We can also accept special flange mounting of multiple terminal combinations with different number of poles.
Please contact us by clicking the "Inquiry" button on the right side of the page.

Precision cleaning request.

Basic Information
type N
Connection type The atmosphere-side plug-fitti
electrode Kovar ®
Flange material SUS 304
sleeve Kovar ®
Insulator Alumina ceramic
Maximum temperature 450℃
The lowest temperature -196℃
Leak rate <1.3x10-10Pa･㎥/sec
Classification Flanged terminal
type Floating shield
Impedance 50 Ω
frequency 200 MHz
Insulation resistance value 10⁹ ohm
Withstand voltage: DC 3 kV
Electric current / 1 pc. 5 A
RoHS2 corresponding ○
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 NW/KF ICF VF VG A B C D The number of electrode
Stock & Delivery
front.product.price
front.product.tax_included2
11716
G25NRF1
- - - 25 90 8 8.1 32.5 1
同軸 N-R-F 1個付き VG25 フランジ admin.label.item.size_image
NW/KF ICF VF VG A B C D The number of electrode
- - - 25 90 8 8.1 32.5 1
Coaxial N-R-F with 1 piece VG25 flange
Product code :11716    Model:G25NRF1
Contact Us

Filter by model

フランジ

電極数

同軸 N-R-F 1個付き VG25 フランジ admin.label.item.catalog_image
グランド及びフローティングタイプの違いについては以下を参照ください。
https://www.cosmotec-co.jp/info/case/1483/
Connection parts
Crimping type 10 pieces for connecting parts vacuum side pin contact φ1.6
Crimping type 10 pieces for connecting parts vacuum side pin contact φ1.6
Product code :14583
Model:PVC16
For connecting parts atmosphere side plug N
For connecting parts atmosphere side plug N
Product code :10188
Model:ASP-N
Connection piece vacuum side Kapton coated cables AWG # for 26 coaxial L = 1000
Connection piece vacuum side Kapton coated cables AWG # for 26 coaxial L = 1000
Product code :14428
Model:VCK1000/XX
Connection piece vacuum side PEEK® sheathed cable AWG # 28 coaxial for L = 1000
Connection piece vacuum side PEEK® sheathed cable AWG # 28 coaxial for L = 1000
Product code :14429
Model:VCP1000/XX
Connecting part RG58AU for Atmosphere side cable N L=1000
Connecting part RG58AU for Atmosphere side cable N L=1000
Product code :14453
Model:ACV1000N/XX
